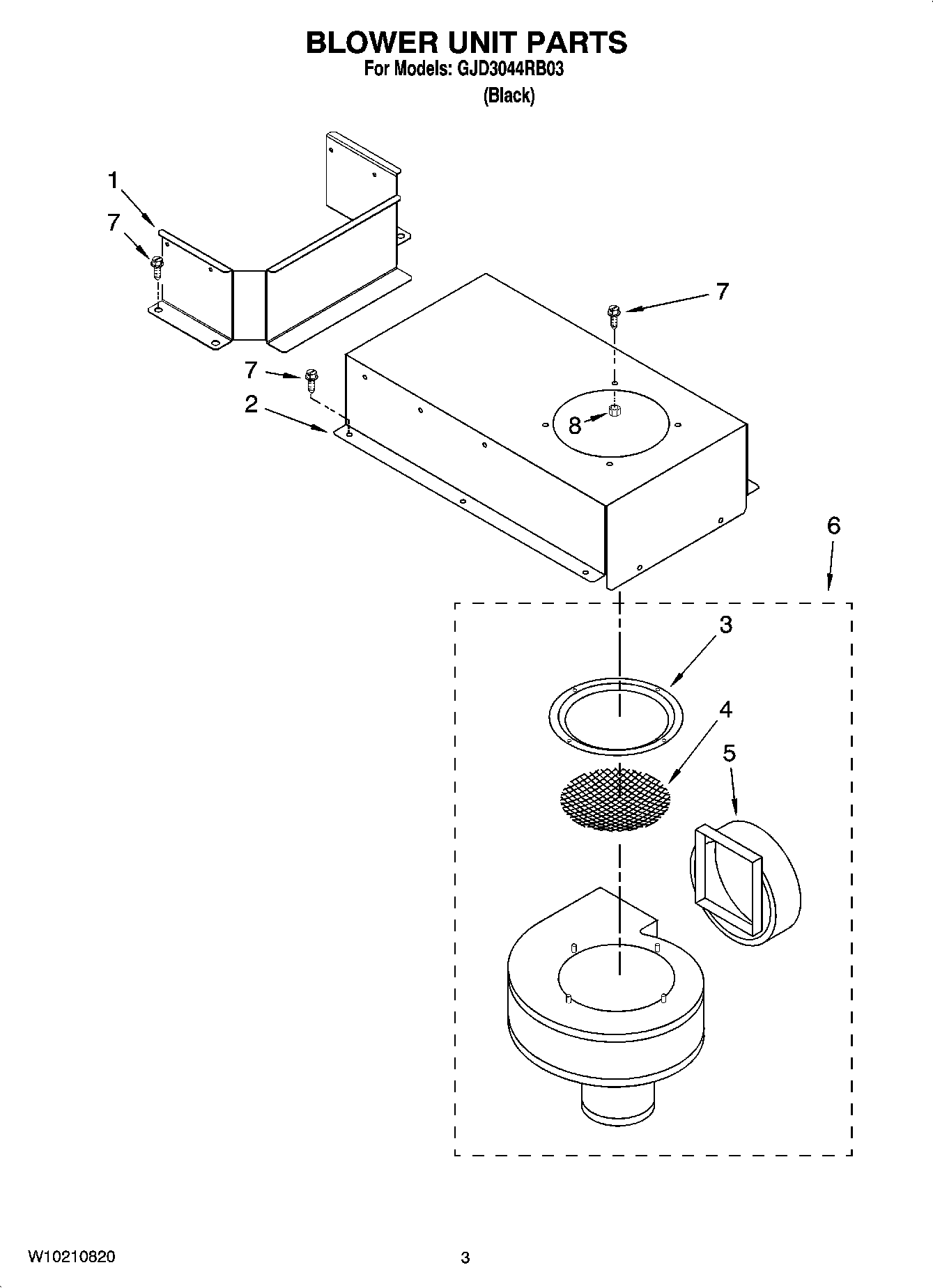

GJD3044RB03 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

GJD3044RB03 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

Written by

in

GJD3044RB03 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
W10491985 Whirlpool Screw
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
Harness, Wire (Ceran Downdraft)
Conduit, Downdraft
4456859 Whirlpool Oven Wire Harness
Strain Relief
Following Parts Not Illustrated
Miscellaneous
SPLICING WIRES–25FT. LENGTH
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
WP3400015 Whirlpool Screw
Wire, 25` Roll (Black 14 Ga.)
ACCESSORY PARTS
Wire, 25` Roll (Red 14 Ga.)
WP8286642 Whirlpool Tape
8528351 Whirlpool Clip
Wire (14 Ga. 150 c Brown)
242831 Whirlpool Oven Wire
1Bracket, Shield
2Bracket, Blower Mounting
3Ring, Inlet
4Screen, Inlet
5Adapter, Vent
6WPW10109930 Whirlpool Blower Assembly
7WP308685 Whirlpool Microwave Screw
8WP488130 Whirlpool Air Conditioner Nut
