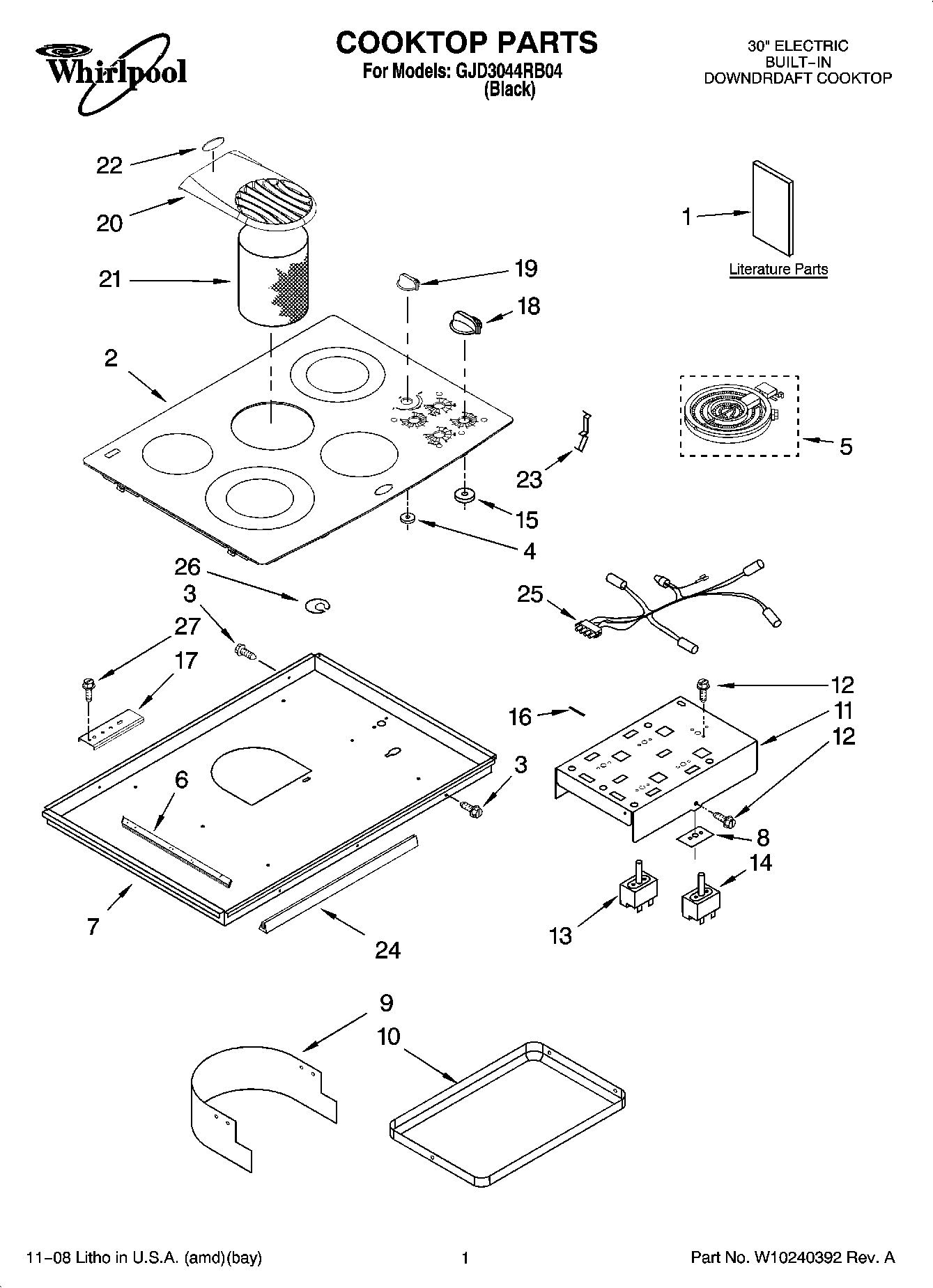

GJD3044RB04 01 – COOKTOP PARTS

Products

Position	Product
1	Installation Instructions
1	Owners Manual
1	Wiring Diagram
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
2	W10239873 Whirlpool Glass Main Top
3	WP3196557 Whirlpool Screw
4	WP3188425 Whirlpool Seal Switch
5	ELEMENT, SURFACE 2000/1000W RR
5	W10823699 Whirlpool Right Front Surface Element
5	W10823692 Whirlpool Dual Radiant Element
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
6	Rail, Element (Right Hand)
6	Rail, Element (Left Hand)
7	Box, Burner
8	3183956 Whirlpool Oven Seal Switch
9	WP3177991 Whirlpool Screw
9	Shield, Vent
10	Drip Bowl, Grease
11	Bracket, Control Mounting
12	WP486579 Whirlpool Air Conditioner Screw
13	WP4456836 Whirlpool Speed Switch
14	WP3191049 Infinite Switch Left Rear Right Front
14	WP9759474 Whirlpool Infinite Switch
15	8285469 Whirlpool Oven Seal Switch
16	W10491984 Whirlpool Switch Seal
17	8186533 Whirlpool Hardware
18	WP8286043BL Whirlpool Knob
19	8286045BL Whirlpool Knob
20	Grille, Air (Black)
21	Filter, Grease
22	NAMEPLATE
23	9759094 Whirlpool Spring
24	Gasket, Vent Shield
25	Lamp, Hot Surface Indicator
26	WPL 3193094
27	WP3400093 Whirlpool Screw
