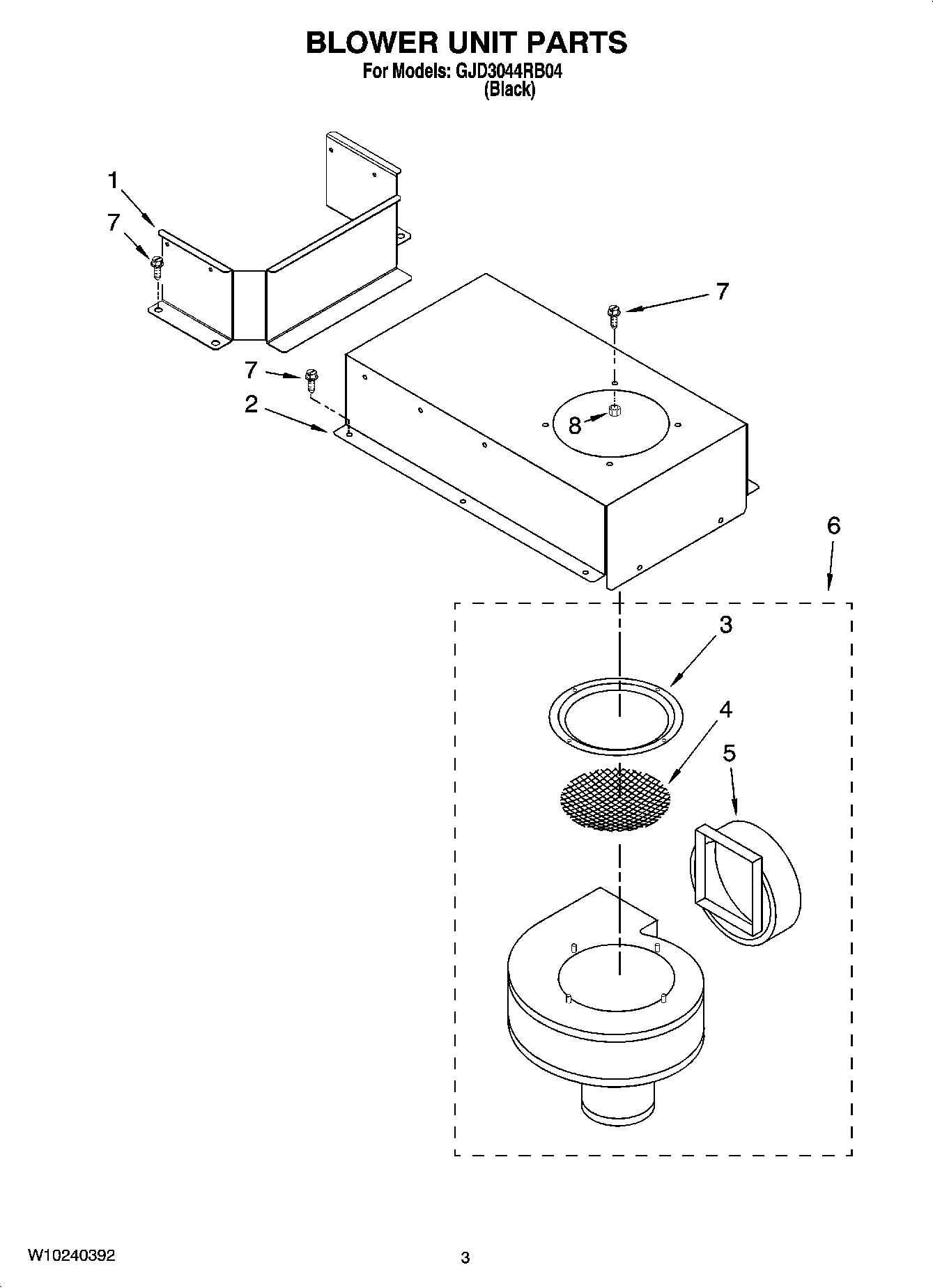

GJD3044RB04 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
W10491985 Whirlpool Screw
Strain Relief
WIRING HARNESS PARTS
Miscellaneous
Following Parts Not Illustrated
4456859 Whirlpool Oven Wire Harness
Conduit, Downdraft
Harness, Wire (Ceran Downdraft)
8528351 Whirlpool Clip
WP8286642 Whirlpool Tape
WP3400015 Whirlpool Screw
1Bracket, Shield
2Bracket, Blower Mounting
3Ring, Inlet
4Screen, Inlet
5Adapter, Vent
6WPW10109930 Whirlpool Blower Assembly
7WP308685 Whirlpool Microwave Screw
8WP488130 Whirlpool Air Conditioner Nut
