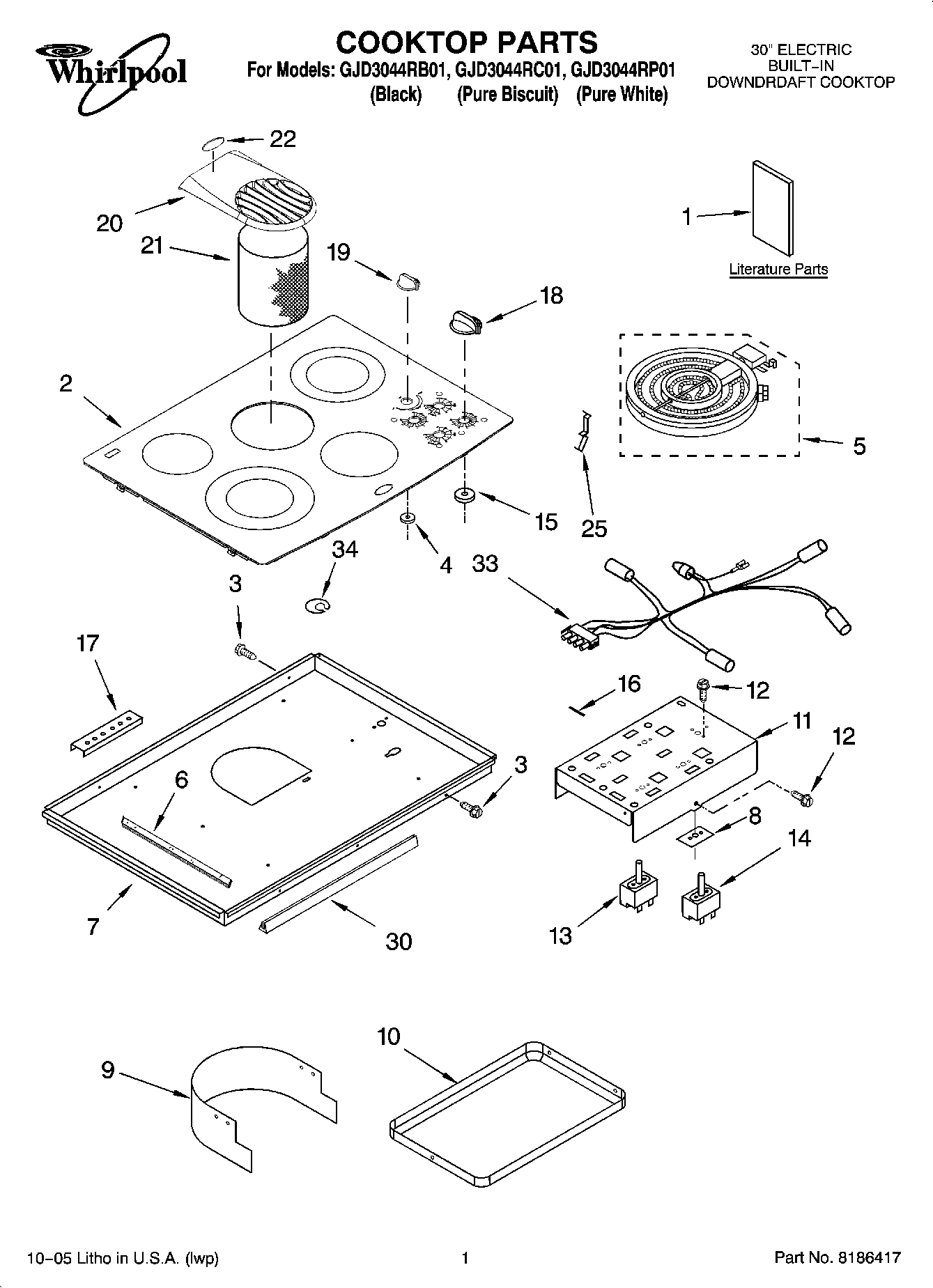

GJD3044RC01 01 – COOKTOP PARTS

GJD3044RC01 01 – COOKTOP PARTS

Written by

in

GJD3044RC01 01 – COOKTOP PARTS

Products

PositionProduct
1Owners Manual Safe Cooking Tips
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Installation Instructions
1Wiring Diagram
2W10239873 Whirlpool Glass Main Top
2Cooktop, Glass & Bracket Assembly (Pure White)
2Cooktop, Glass & Bracket Assembly (Pure Biscuit)
3WP3196557 Whirlpool Screw
4WP3188425 Whirlpool Seal Switch
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823692 Whirlpool Dual Radiant Element
5W10823699 Whirlpool Right Front Surface Element
5ELEMENT, SURFACE 2000/1000W RR
6Rail, Element (Right Hand)
6Rail, Element (Left Hand)
7Box, Burner
83183956 Whirlpool Oven Seal Switch
9Shield, Vent
9WP3177991 Whirlpool Screw
10Drip Bowl, Grease
11Bracket, Control Mounting
12WP486579 Whirlpool Air Conditioner Screw
13WP4456836 Whirlpool Speed Switch
14WP9759474 Whirlpool Infinite Switch
14WP3191049 Infinite Switch Left Rear Right Front
158285469 Whirlpool Oven Seal Switch
16W10491984 Whirlpool Switch Seal
178186533 Whirlpool Hardware
188286043WH Whirlpool Knob
18WP8286043BL Whirlpool Knob
188286043BT Whirlpool Knob
19Knob, Downdraft (Biscuit)
198286045BL Whirlpool Knob
19Knob, Downdraft (White)
20Grille, Air (Black)
20Grille, Air (Pure White)
20Grille, Air (Biscuit)
21Filter, Grease
22NAMEPLATE
259759094 Whirlpool Spring
30Gasket, Vent Shield
33Lamp, Hot Surface Indicator
34WPL 3193094
