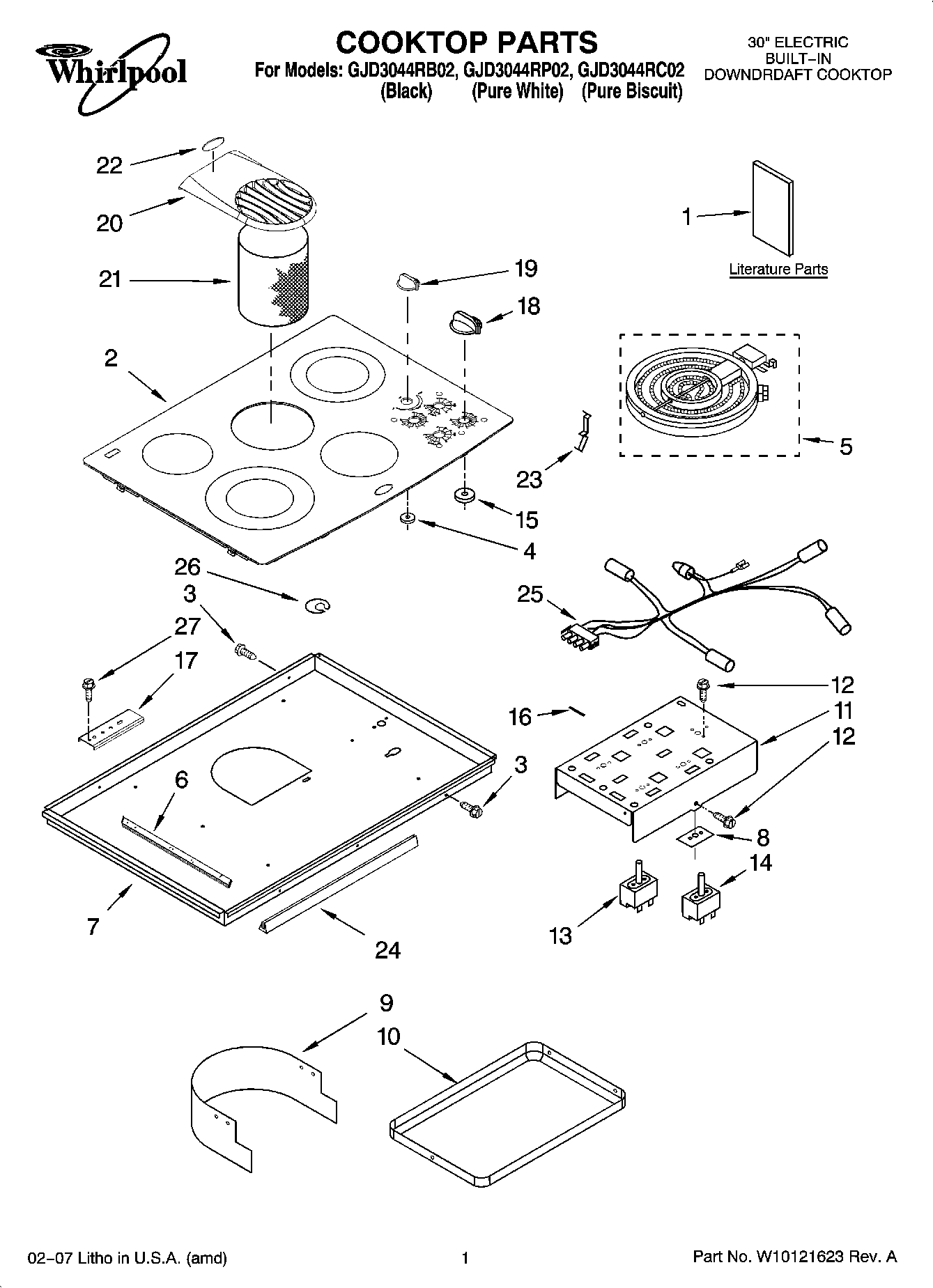

GJD3044RC02 01 – COOKTOP PARTS

GJD3044RC02 01 – COOKTOP PARTS

Written by

in

GJD3044RC02 01 – COOKTOP PARTS

Products

PositionProduct
1Owners Manual Safe Cooking Tips
1Installation Instructions
1Wiring Diagram
1Safe Cooking Tips (French)
1Safe Cooking Tips
2Cooktop, Glass & Bracket Assembly (White)
2W10239873 Whirlpool Glass Main Top
2Cooktop, Glass & Bracket Assembly (Biscuit)
3WP3196557 Whirlpool Screw
4WP3188425 Whirlpool Seal Switch
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5ELEMENT, SURFACE 2000/1000W RR
5W10823692 Whirlpool Dual Radiant Element
5W10823699 Whirlpool Right Front Surface Element
6Rail, Element (Left Hand)
6Rail, Element (Right Hand)
7Box, Burner
83183956 Whirlpool Oven Seal Switch
9Shield, Vent
9WP3177991 Whirlpool Screw
10Drip Bowl, Grease
11Bracket, Control Mounting
12WP486579 Whirlpool Air Conditioner Screw
13WP4456836 Whirlpool Speed Switch
14WP3191049 Infinite Switch Left Rear Right Front
14WP9759474 Whirlpool Infinite Switch
158285469 Whirlpool Oven Seal Switch
16W10491984 Whirlpool Switch Seal
178186533 Whirlpool Hardware
188286043BT Whirlpool Knob
188286043WH Whirlpool Knob
18WP8286043BL Whirlpool Knob
19Knob, Downdraft (White)
19Knob, Downdraft (Biscuit)
198286045BL Whirlpool Knob
20Grille, Air (Black)
20Grille, Air (Pure White)
20Grille, Air (Biscuit)
21Filter, Grease
22NAMEPLATE
239759094 Whirlpool Spring
24Gasket, Vent Shield
25Lamp, Hot Surface Indicator
26WPL 3193094
27WP3400093 Whirlpool Screw
