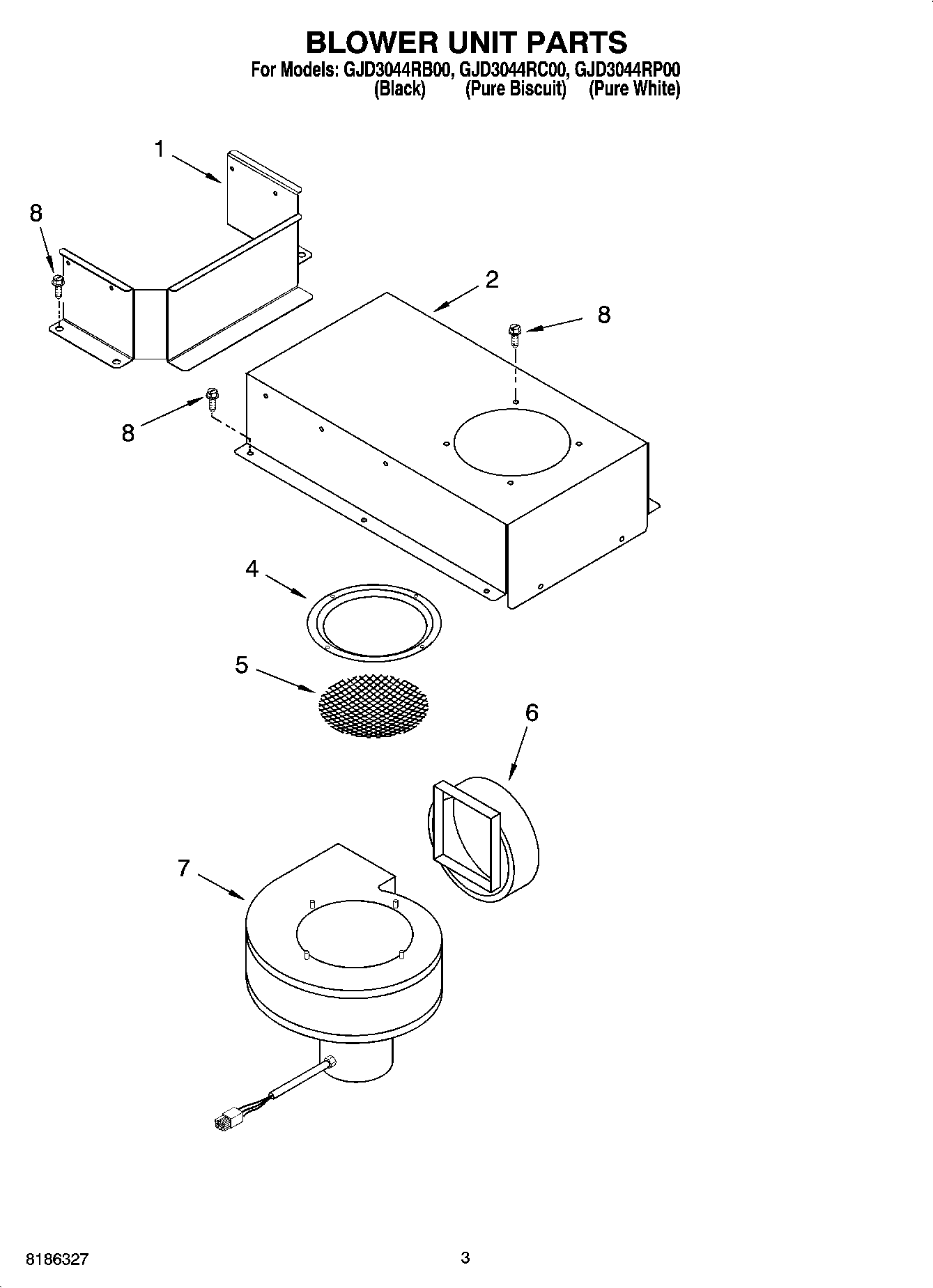

GJD3044RP00 02 – BLOWER UNIT PARTS, OPTIONAL PARTS

Products

Position	Product
	W10491985 Whirlpool Screw
	1
	WIRING HARNESS PARTS WIRING HARNESS PARTS
	Bracket, Support (2)
	Hardware Asm.
	4456859 Whirlpool Oven Wire Harness
	Harness, Wire (Ceran Downdraft)
	Conduit, Downdraft
	Strain Relief
	FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous
	FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRES–25FT. LENGTH
	ACCESSORY PARTS
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	WP3400015 Whirlpool Screw
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	8528351 Whirlpool Clip
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
1	Bracket, Shield
2	Bracket, Blower Mounting
4	Ring, Inlet
5	Screen, Inlet
6	Adapter, Vent
7	WPW10109930 Whirlpool Blower Assembly
8	WP3196557 Whirlpool Screw
