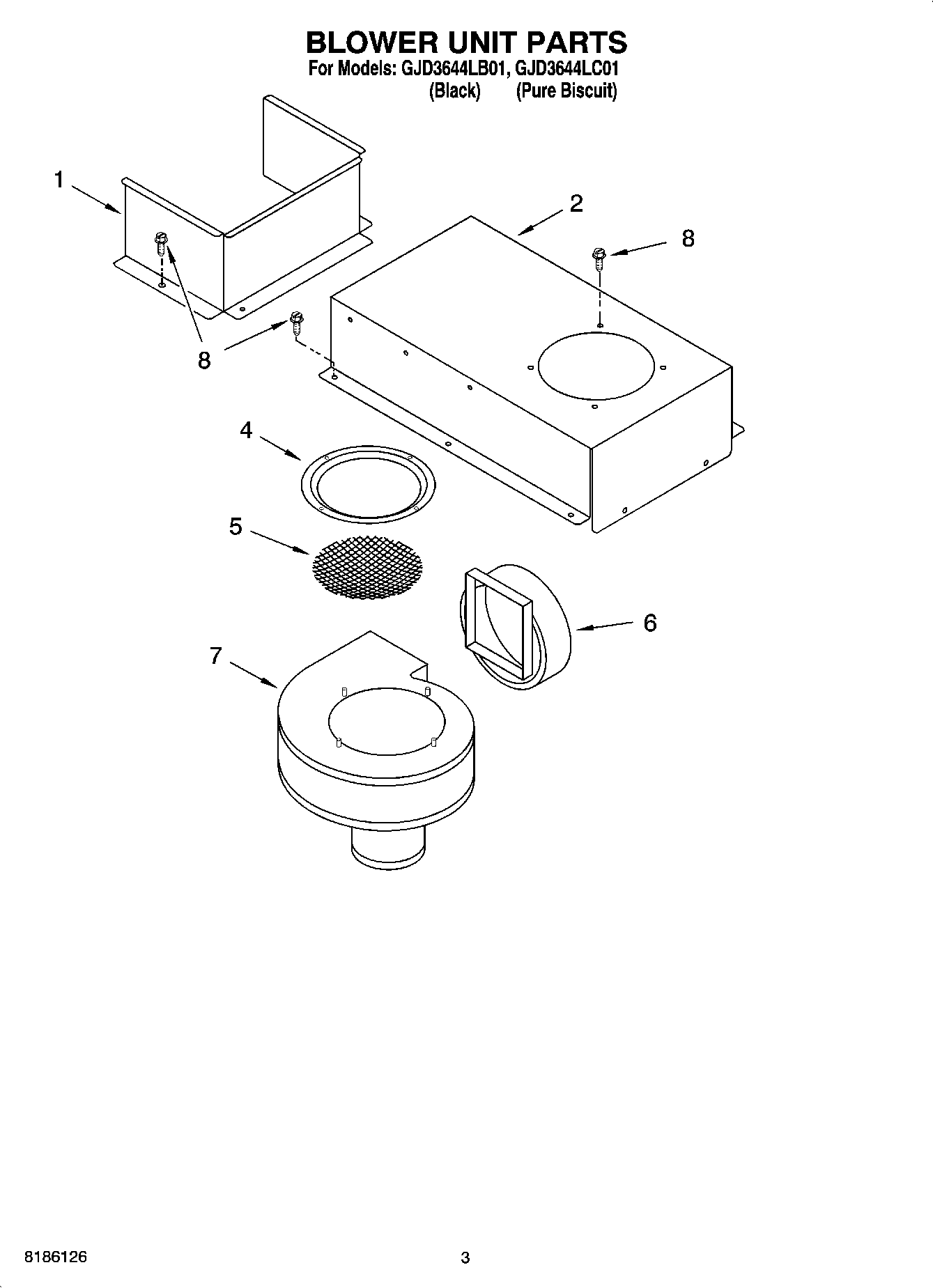

GJD3644LB01 02 – BLOWER UNIT PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WP3400015 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	1
	WIRING HARNESS PARTS WIRING HARNESS PARTS
	Bracket, Support (2)
	Hardware Asm.
	Harness, Wire (Blower/Switch)
	Strain Relief
	Harness, Wire (Ceran Downdraft)
	FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous
	FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRES–25FT. LENGTH
	ACCESSORY PARTS
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	WP9759413 Whirlpool Door Liner
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	8528351 Whirlpool Clip
1	Bracket, Shield
2	Bracket, Blower Mounting
4	Ring, Inlet
5	Screen, Inlet
6	Adapter, Vent
7	Blower Motor Asm. (Includes Fan Asm)
8	WP3196557 Whirlpool Screw
