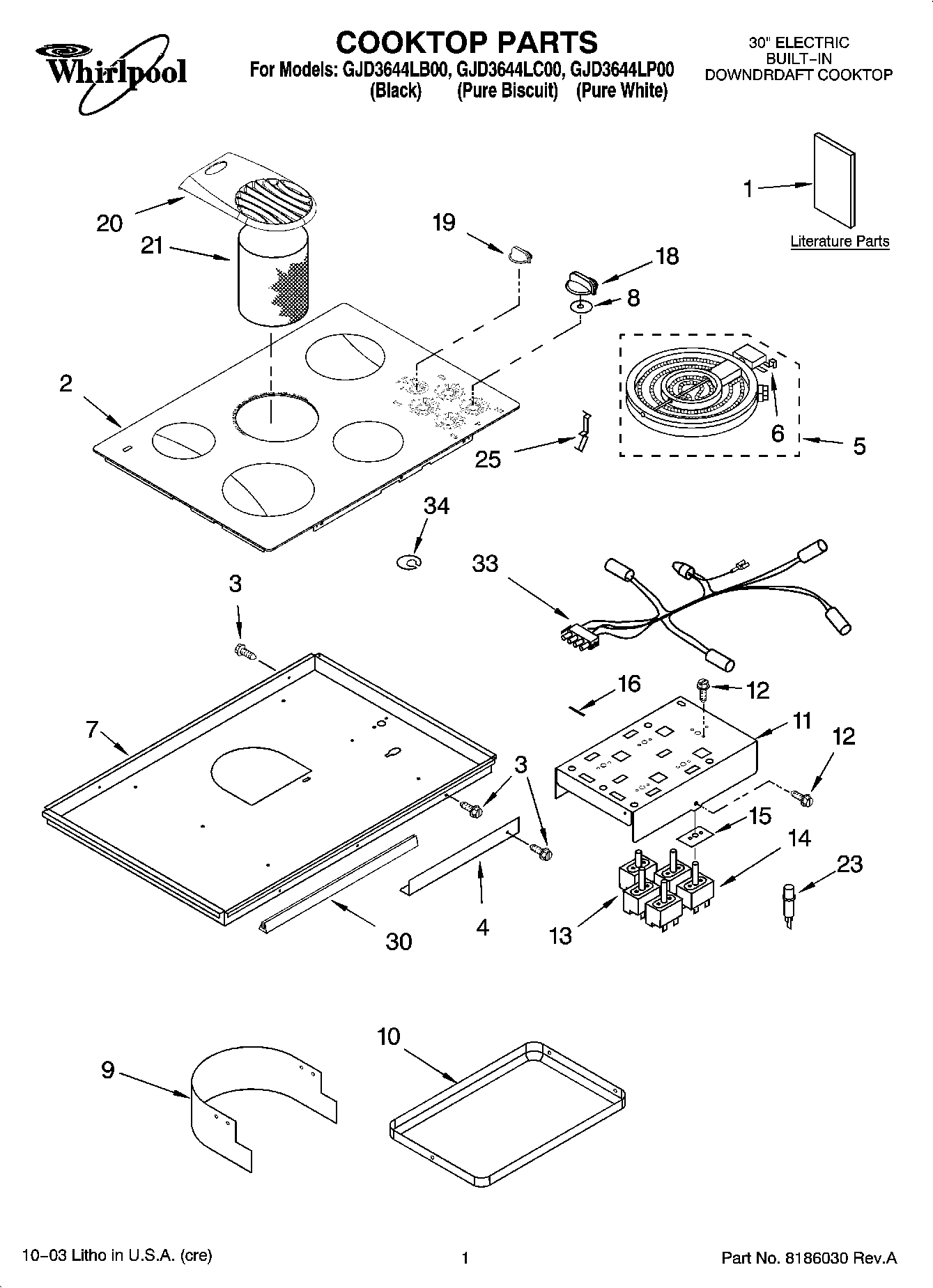

GJD3644LC00 01 – COOKTOP PARTS

GJD3644LC00 01 – COOKTOP PARTS

Written by

in

GJD3644LC00 01 – COOKTOP PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
1COOKTOP PARTS
1Literature Parts (Wiring Diagram)
2Cooktop, Glass & Bracket Assembly (Black)
2Cooktop, Glass & Bracket Assembly (Pure White)
2Cooktop, Glass & Bracket Assembly (Pure Biscuit)
3WP3196557 Whirlpool Screw
44455364 Whirlpool Oven Support Bracket
5W10823698 Whirlpool Surface Element Right Rear
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823692 Whirlpool Dual Radiant Element
5W10823699 Whirlpool Right Front Surface Element
6Rail, Element (Right Hand)
6Rail, Element (Left Hand)
7Box, Burner
8WP3188425 Whirlpool Seal Switch
9Shield, Vent
10Drip Bowl, Grease
113183956 Whirlpool Oven Seal Switch
11Bracket, Control Mounting
12WP486579 Whirlpool Air Conditioner Screw
13Switch, Speed Control
14Switch, Infinite (LR & RF)
14Switch, Infinite (RR & LF)
15Seal, Inifinite Switch
16W10491984 Whirlpool Switch Seal
18WP8522566 Whirlpool Knob
18Knob, Control (4) (Biscuit)
18WP8522565 Whirlpool Knob
19Knob, Downdraft (Pure Biscuit)
19Knob, Downdraft (Pure White)
19Knob, Downdraft (Black)
20Grille, Air (Biscuit)
20Grille, Air (Black)
20Grille, Air (Pure White)
21Filter, Grease
233193012 Whirlpool Oven Indicator Light
25Spring, Locator
30Gasket, Vent Shield
33Lamp, Hot Surface Indicator
34WPL 3193094
