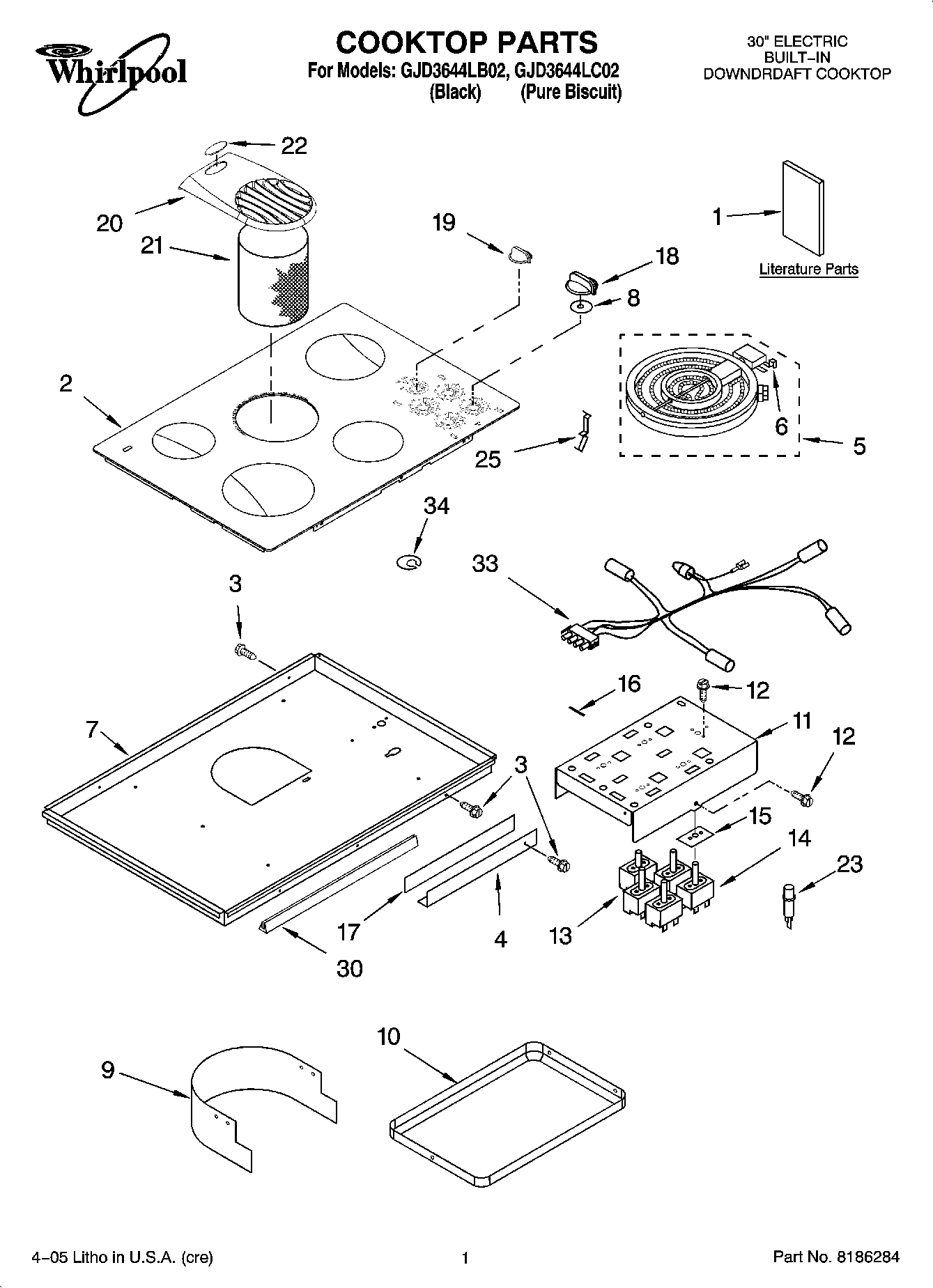

GJD3644LC02 01 – COOKTOP PARTS

GJD3644LC02 01 – COOKTOP PARTS

Written by

in

GJD3644LC02 01 – COOKTOP PARTS

Products

PositionProduct
1Safe Cooking Tips
1Use & Care Guide
1Installation Instructions
1Wiring Diagram
1COOKTOP PARTS
2Cooktop, Glass & Bracket Assembly (Pure Biscuit)
2Cooktop, Glass & Bracket Assembly (Black)
3WP3196557 Whirlpool Screw
44455364 Whirlpool Oven Support Bracket
5W10823699 Whirlpool Right Front Surface Element
5W10823698 Whirlpool Surface Element Right Rear
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W10823692 Whirlpool Dual Radiant Element
6Rail, Element (Right Hand)
6Rail, Element (Left Hand)
7Box, Burner
8WP3188425 Whirlpool Seal Switch
9Shield, Vent
10Drip Bowl, Grease
11Bracket, Control Mounting
113183956 Whirlpool Oven Seal Switch
12WP486579 Whirlpool Air Conditioner Screw
13Switch, Speed Control
14Switch, Infinite (LR & RF)
14Switch, Infinite (Dual)
14Switch, Infinite (RR & LF)
158285469 Whirlpool Oven Seal Switch
16W10491984 Whirlpool Switch Seal
17Foam, Seal
18Knob, Control (4) (Biscuit)
18WP8522566 Whirlpool Knob
19Knob, Downdraft (Black)
19Knob, Downdraft (Pure Biscuit)
20Grille, Air (Biscuit)
20Grille, Air (Black)
21Filter, Grease
22NAMEPLATE
233193012 Whirlpool Oven Indicator Light
259759094 Whirlpool Spring
25WP486754 Whirlpool Compactor Screw
30Gasket, Vent Shield
33Lamp, Hot Surface Indicator
34WPL 3193094
