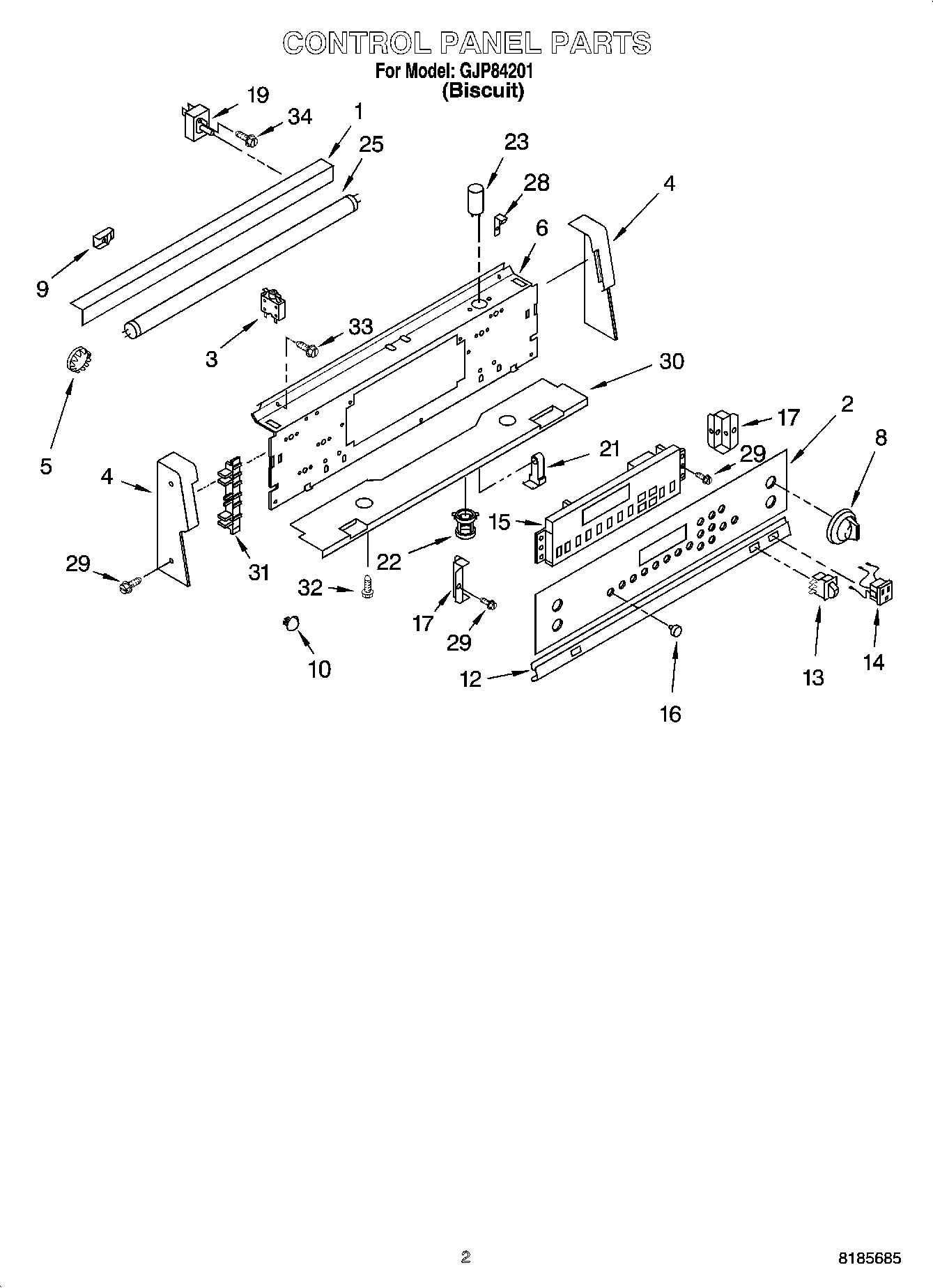

GJP84201 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Lamp Cover
2	Console-Glass (Control Panel)
3	Breaker, 15 Amp
4	End Cap (Biscuit Left)
4	End Cap (Biscuit Right)
5	Button Plug (8 mm (2))
6	Panel, Control
8	Knobs, Control (4) (Biscuit)
9	WP9750343 Whirlpool Light Lens
9	Light, Indicator (Surface Unit (2))
10	Spacer, Timer
12	Trim Strip
13	Switch, Oven Light
14	Outlet, Untimed (2)
15	Timer
16	Knob, Timer (17) (Biscuit)
17	WPL 9753304
19	Infinite Switch (1800W)
19	WP9750643 Whirlpool Infinite Switch
19	WP8203529 Whirlpool Infinite Switch
21	Receptacle, Light
22	Starter, Holder
23	Starter, Light
25	WP95292 Whirlpool Fluorescent Light Bulb
28	WPL 9753017
29	WP4159387 Whirlpool Compactor Screw
30	Base, Console
31	Insert (2) (Biscuit)
32	WP3400832 Whirlpool Screw
33	Panel, Control (Screw, (2) 8 x 3/8)
34	WP3400882 Whirlpool Screw
34	Insulation, Control Panel
