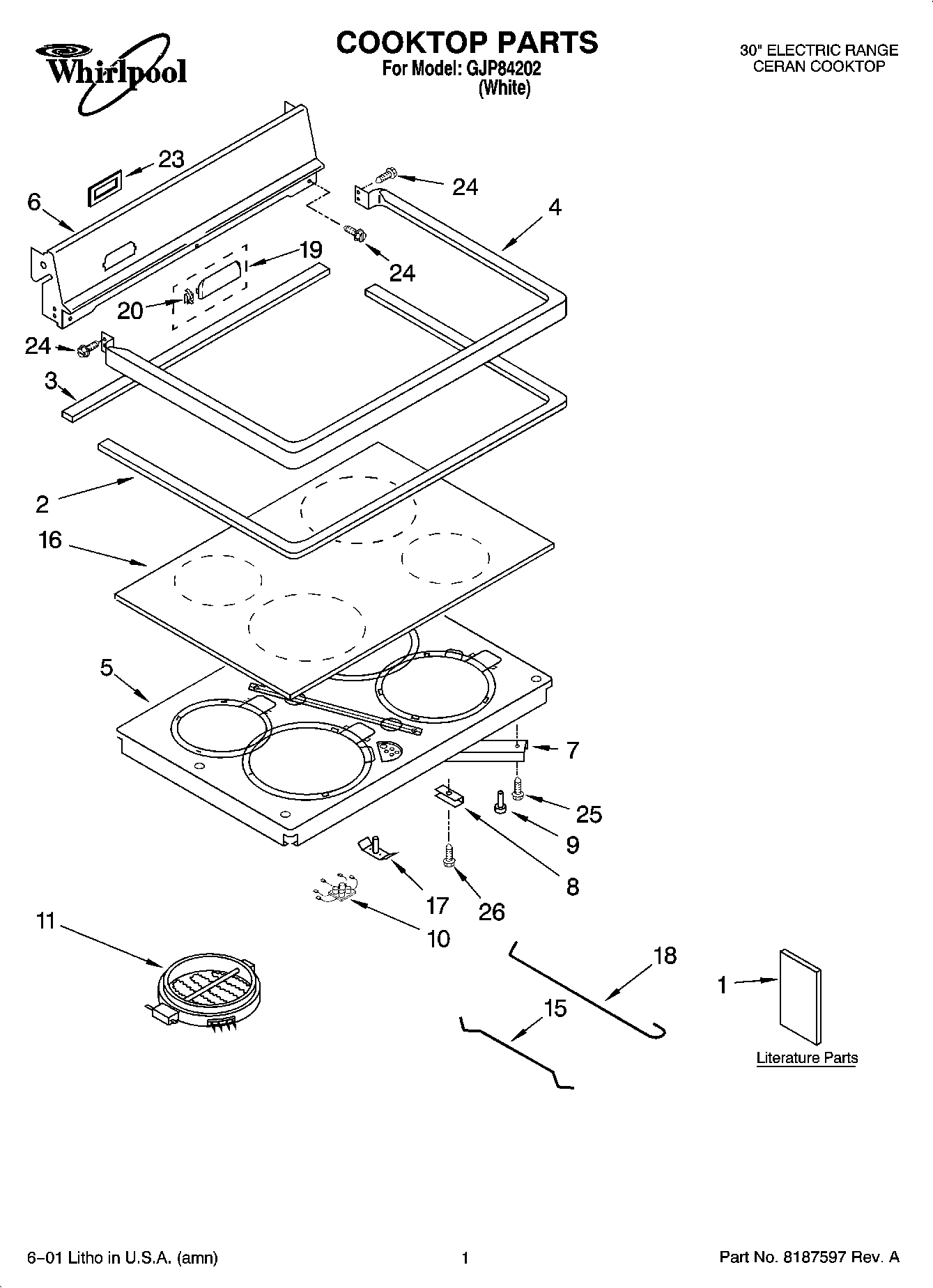

GJP84202 01 – COOKTOP PARTS

Products

Position	Product
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
1	WPL LIT9752776
2	WP9780939 Whirlpool Cooktop Gasket
3	Rear Gasket
4	Frame, Cooktop (White)
5	Support, Element
6	Back Splash (White)
7	Brace, Support
8	Support Clips (4)
9	238614 Whirlpool Bumper Hinge
10	Hot Light
11	W10823692 Whirlpool Dual Radiant Element
11	WP8523700 Whirlpool Surface Element
11	W10823699 Whirlpool Right Front Surface Element
11	Element, Surface (1800/800W Right)
15	Rod, Small Ceran Element
16	Cooktop, Ceran
17	WP9781235 Whirlpool Clip
18	Rod, Large Ceran Element
19	Cover, Vent (White)
20	Spring, Warm Zone Element
20	Clip, Vent Cover
23	Vent Gasket
24	Back Splash (Screw (4) 10AB x 1/2“)
25	Screw (4) 10 x 1/2
26	Screw, (4) 10PH-B x 3/4
