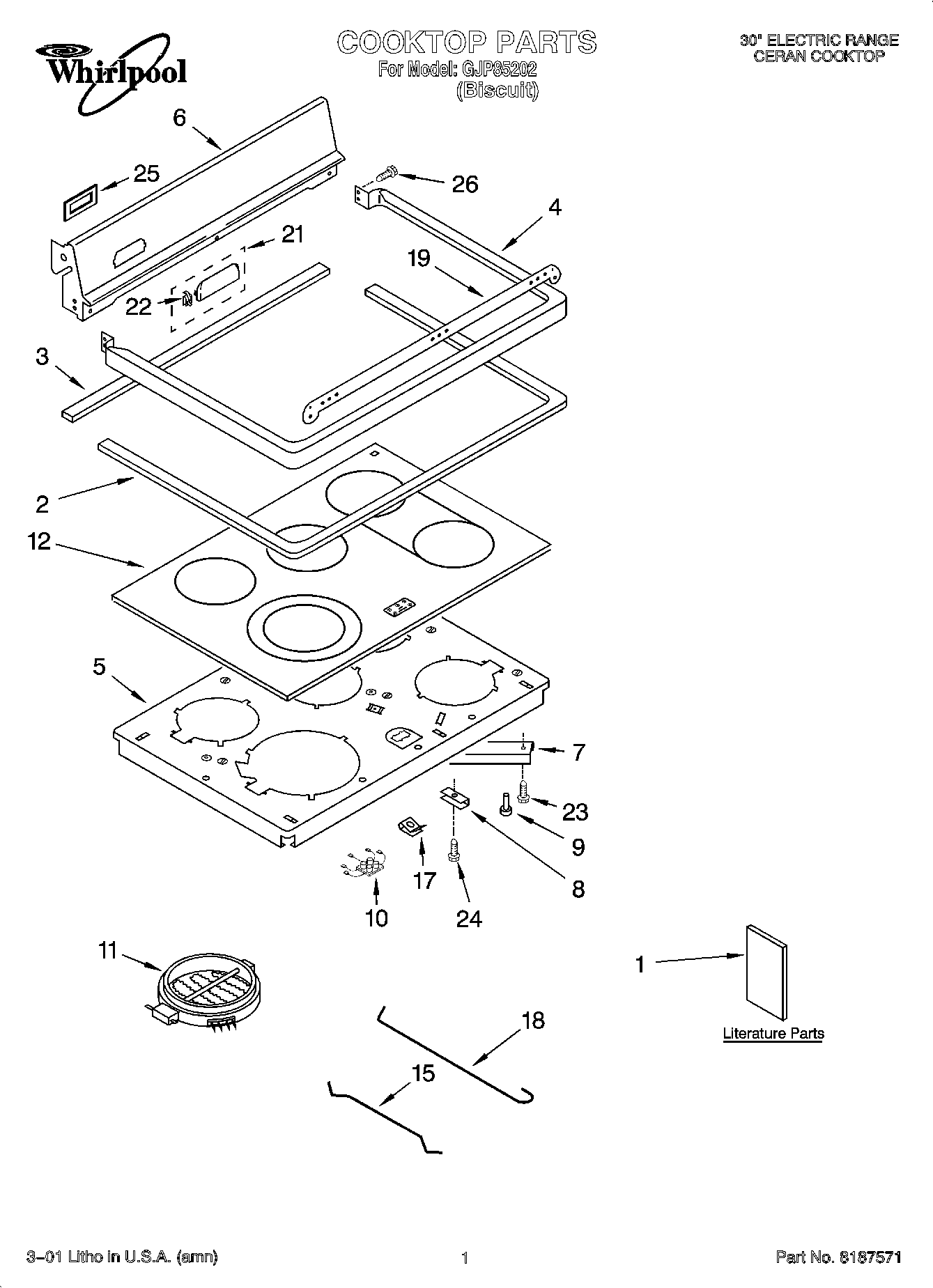

GJP85202 01 – COOKTOP PARTSadmin2025-04-26T10:31:08+00:00GJP85202 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | Template, Anti-Tip |
| 1 | Literature Parts (Wiring Diagram) |
| 1 | Literature Parts (Use & Care Guide) |
| 1 | Literature Parts (Installation Instructions) |
| 2 | WP9780939 Whirlpool Cooktop Gasket |
| 3 | Rear Gasket |
| 4 | Frame, Cooktop (Biscuit) |
| 5 | Support, Element |
| 6 | Back Splash (Biscuit) |
| 7 | Brace, Support |
| 8 | Support Clips (4) |
| 9 | 238614 Whirlpool Bumper Hinge |
| 10 | Hot Light |
| 11 | W10823692 Whirlpool Dual Radiant Element |
| 11 | WP8523700 Whirlpool Surface Element |
| 11 | Element, Surface (1800/800W Right) |
| 11 | W10823699 Whirlpool Right Front Surface Element |
| 12 | Cooktop, Ceran |
| 15 | Rod, Small Ceran Element |
| 17 | WP9781235 Whirlpool Clip |
| 18 | Rod, Large Ceran Element |
| 19 | Guard, Wire |
| 21 | Cover, Vent (Biscuit) |
| 22 | Clip, Vent Cover |
| 23 | Screw (4) 10 x 1/2 |
| 24 | Screw, (4) 10PH-B x 3/4 |
| 25 | Vent Gasket |
| 26 | Back Splash (Screw (4) 10AB x 1/2``) |
| 26 | Spring, Warm Zone Element |
