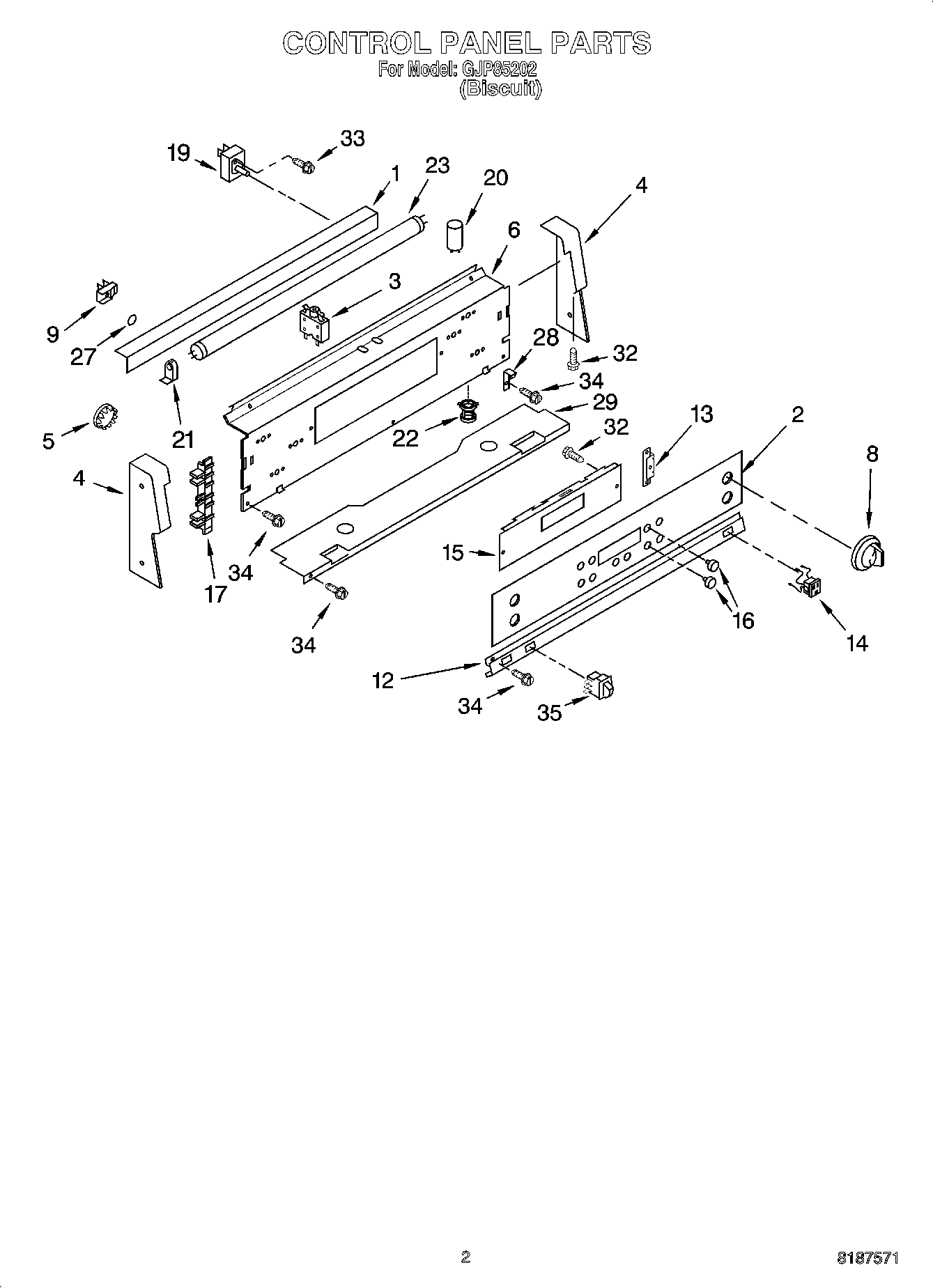

GJP85202 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Lamp Cover
2	Console-Glass (Control Panel)
3	Breaker, 15 Amp
4	End Cap (Biscuit Left)
4	End Cap (Biscuit Right)
5	Button Plug (8 mm (2))
6	Spacer, Timer
6	Panel, Control
8	Knobs, Control (4) (Biscuit)
9	Light, Indicator (Surface Unit (2))
12	Trim Strip
13	WPL 9753304
14	Outlet, Untimed (2)
15	Timer
16	Knob, Timer (17) (Biscuit)
17	Insert (2) (Biscuit)
19	WP9750643 Whirlpool Infinite Switch
19	Switch, Dual
19	Infinite Switch (1800W)
20	Starter, Light
21	Receptacle, Light
22	Starter, Holder
23	WP95292 Whirlpool Fluorescent Light Bulb
27	WP9750343 Whirlpool Light Lens
28	WPL 9753017
29	Base, Console
32	WP4159387 Whirlpool Compactor Screw
33	WP3400882 Whirlpool Screw
34	WP3400832 Whirlpool Screw
35	Switch, Oven Light
35	Insulation, Control Panel
