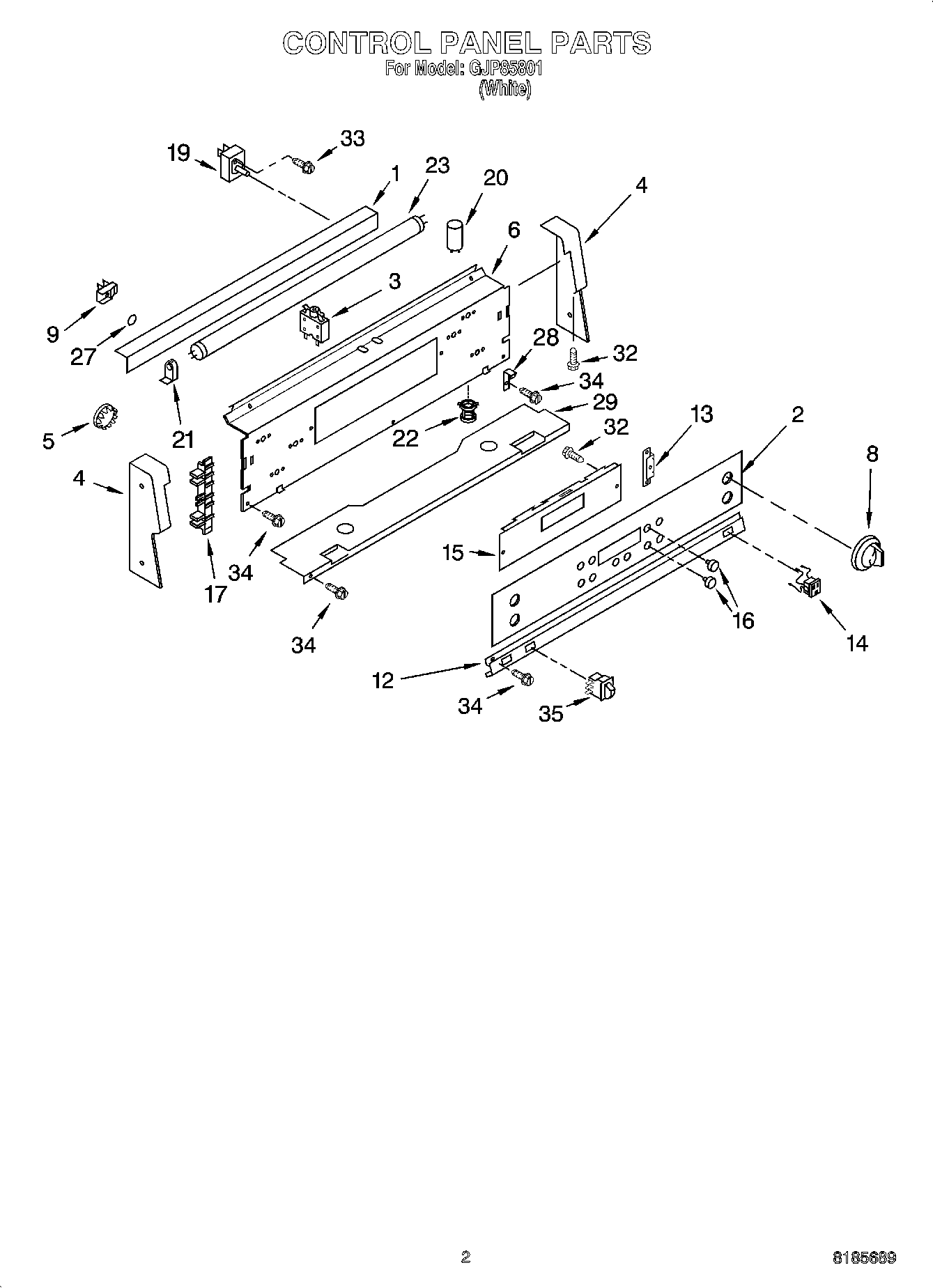

GJP85801 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Lamp Cover
2	Console-Glass (Control Panel)
3	Breaker, 15 Amp
4	End Cap (Right)
4	End Cap (Left)
5	Button Plug (8 mm (2))
6	Spacer, Timer
6	Panel, Control
8	WP9752405FW Whirlpool Knob
9	Light, Indicator (Surface Unit (2))
12	Trim Strip
13	WPL 9753304
14	Outlet, Untimed
15	Timer
16	Knob, Timer (17) (White)
17	Insert (2) (White)
19	WP8203529 Whirlpool Infinite Switch
19	Infinite Switch (1800W)
19	WP9750643 Whirlpool Infinite Switch
20	Starter, Light
21	Receptacle, Light
22	Starter, Holder
23	WP95292 Whirlpool Fluorescent Light Bulb
27	WP9750343 Whirlpool Light Lens
28	WPL 9753017
29	Base, Console
32	WP4159387 Whirlpool Compactor Screw
33	WP3400882 Whirlpool Screw
34	WP3400832 Whirlpool Screw
35	Switch, Oven Light
35	Insulation, Control Panel
