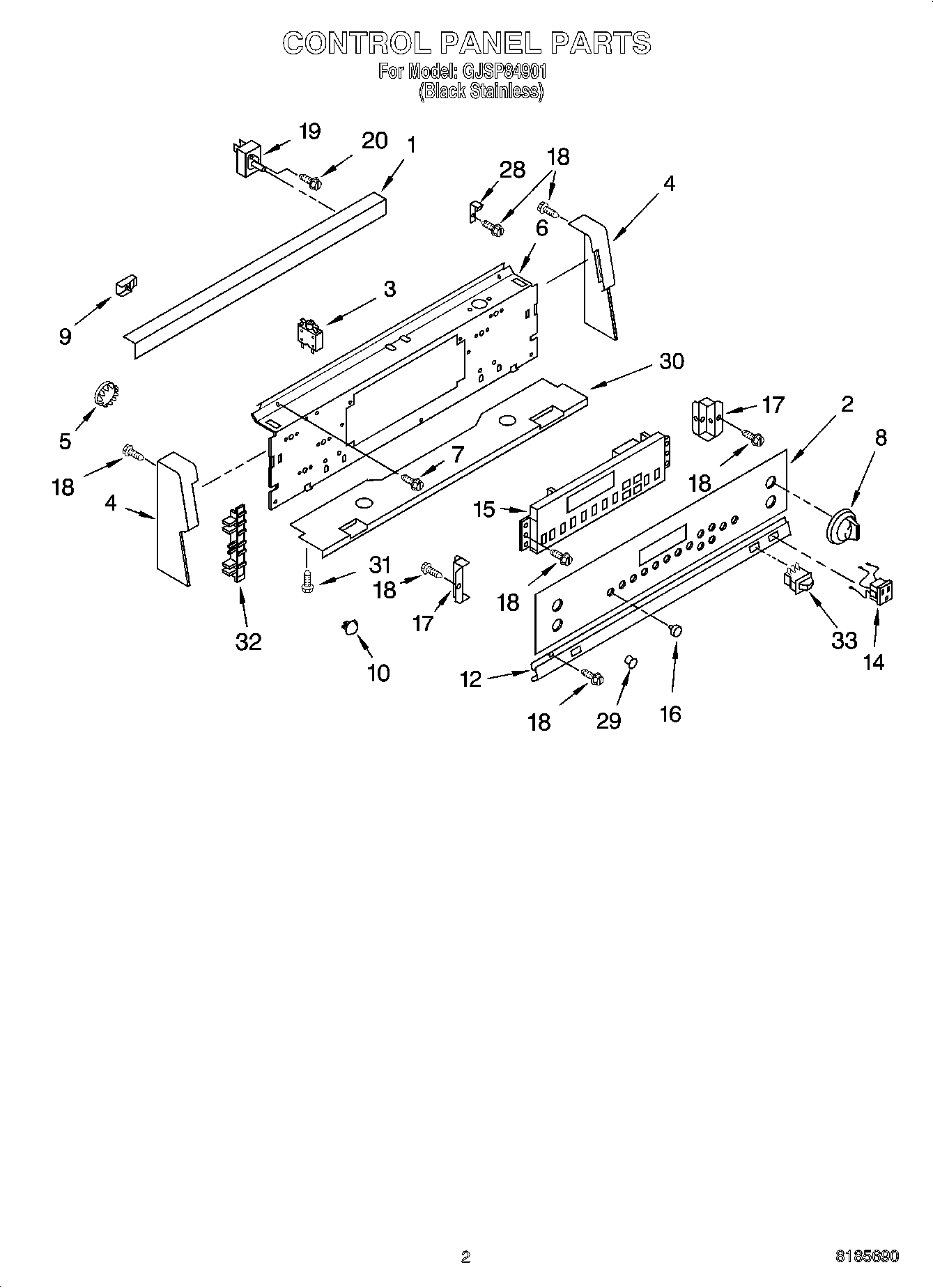

GJSP84901 02 – CONTROL PANEL PARTS

GJSP84901 02 – CONTROL PANEL PARTS

Written by

in

GJSP84901 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Lamp Cover
2Console-Glass (Control Panel)
3Breaker, 15 Amp
4End Cap (Black, Right)
4End Cap (Black, Left)
5Button Plug (8 mm (2))
6Panel, Control
7Panel, Control (Screw, (2) 8 x 3/8)
8Knobs, Control (4) (Black)
9Light, Indicator (Surface Unit (2))
10Spacer, Timer
12Trim Strip
14Outlet, Untimed
15Timer
16Knob, Timer (17) (Black)
17WPL 9753304
18WP4159387 Whirlpool Compactor Screw
19WP9750643 Whirlpool Infinite Switch
19WP8203529 Whirlpool Infinite Switch
19Infinite Switch (1800W)
20WP3400882 Whirlpool Screw
28WPL 9753017
29WP9750343 Whirlpool Light Lens
30Base, Console
31WP3400832 Whirlpool Screw
32Insert (2) (Black)
33Switch, Rocker
33Insulation, Control Panel
