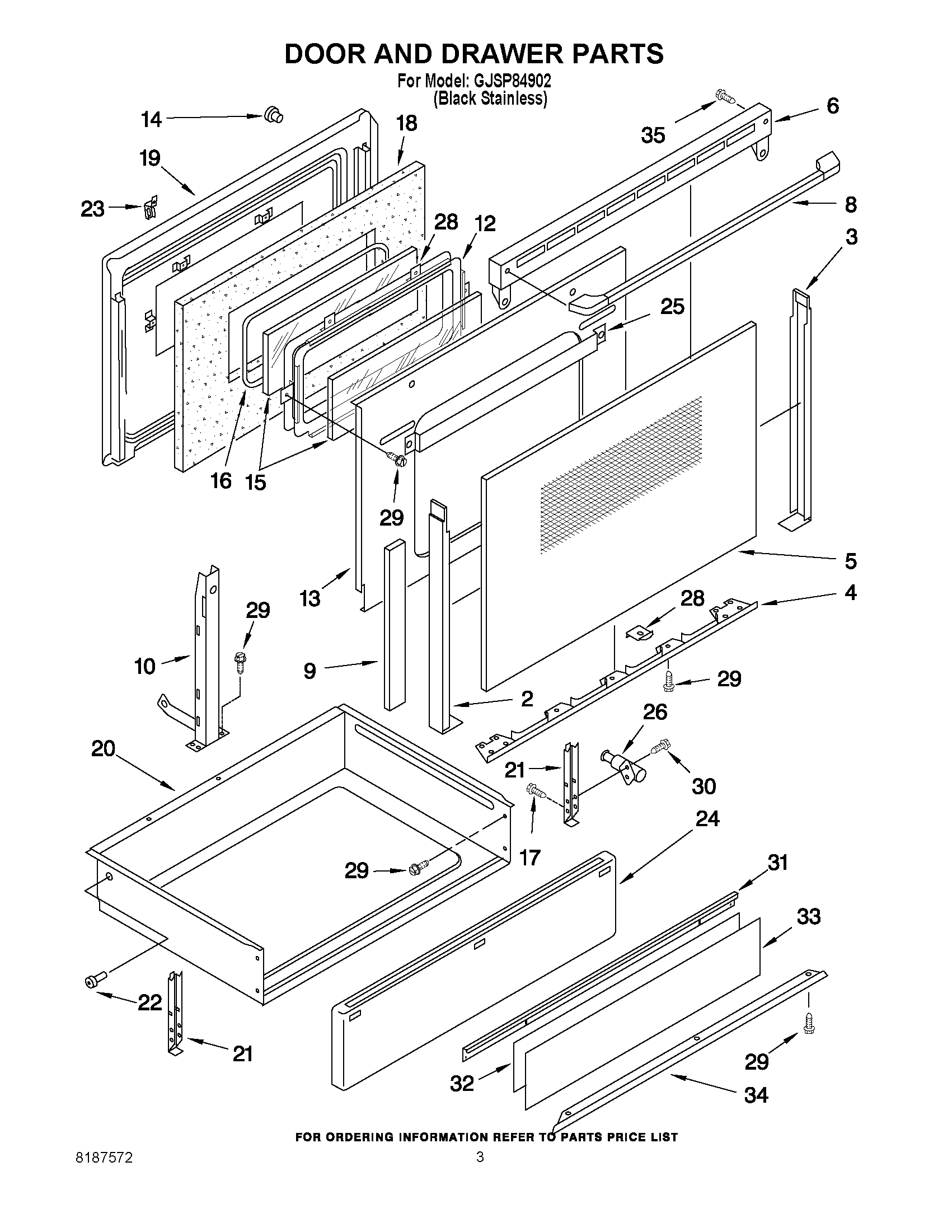

GJSP84902 03 – DOOR AND DRAWER PARTS

Products

Position	Product
2	Trim, Door-Left (Black)
3	Trim, Door-Right (Black)
4	Trim, Door Bottom (Black)
5	Glass, Door Front
6	Vent, Door (Seal, Door Vent Side)
6	Vent, Door (Gasket, Vent)
6	Vent, Door (Black)
8	Handle, Door
9	Gasket, Door Glass
10	WP9782033 Whirlpool Door Hinge
12	Frame, Window
13	Shield, Door
14	238614 Whirlpool Bumper Hinge
15	WP9781593 Whirlpool Door Glass
16	WP9755177 Whirlpool Wind Gasket
17	WPL 9780806
18	Insulation, Door
19	Liner, Door
20	Drawer & Roller
21	Bracket, Drawer
22	814229 Whirlpool Primary Roller
23	Retainer, Glass
24	Front, Drawer (Black Stainless)
25	Channel, Heat
26	WP90296 Whirlpool Clip
26	Latch, Drawer
28	Spacer, Door (8)
29	WP4159387 Whirlpool Compactor Screw
30	Screw (4) 10 x 1/2
31	WPL 9750614PB
32	WPL 9753329
33	Panel, Drawer
34	WPL 9750613PB
35	WPW10001180 Whirlpool Refrigerator Screw
