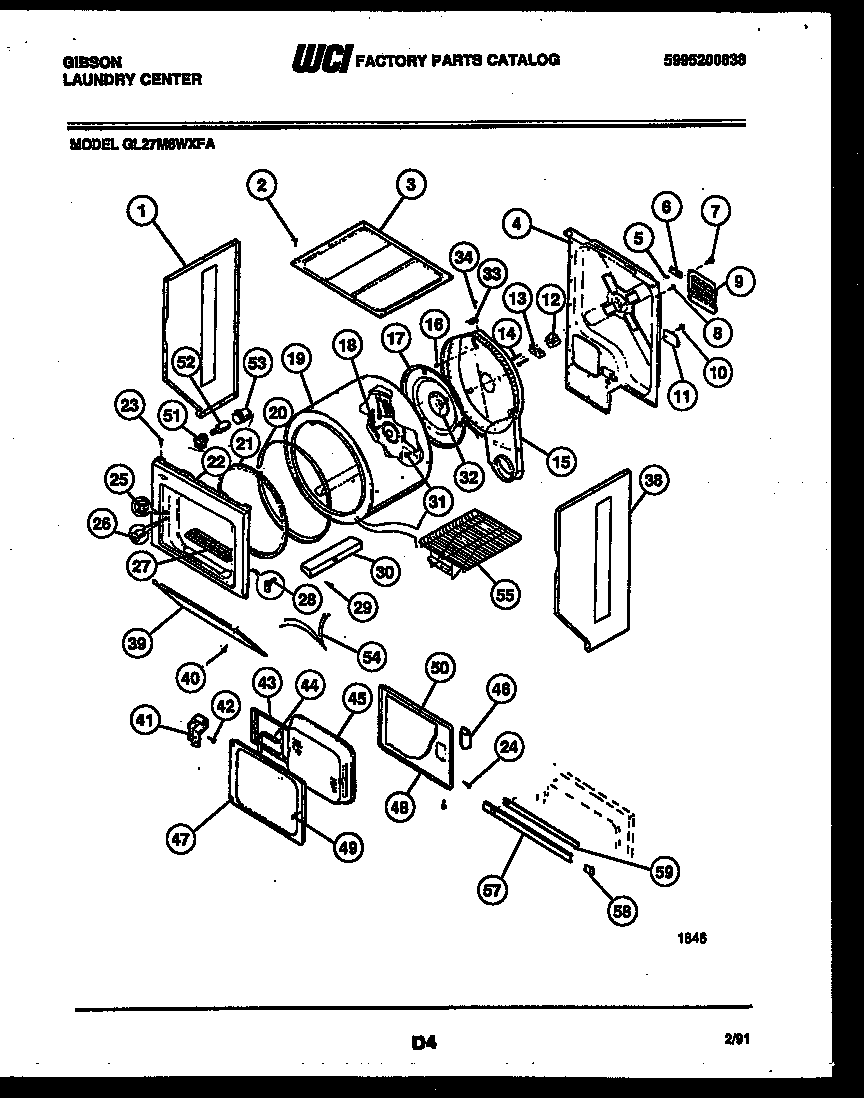

GL27M6WXFA 02 – BODY PARTS

GL27M6WXFA 02 – BODY PARTS

Written by

in

GL27M6WXFA 02 – BODY PARTS

Products

PositionProduct
1PANEL – SIDE – WHITE
1WCI 3204246
3131883301 Frigidaire Panel
4PANEL – REAR
55303281019 Frigidaire Ball Assembly
65303281020 Frigidaire Ball Clip
9PANEL-MOTOR ACCESS
11WCI 3204250
12131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13131724301 Frigidaire Dryer Drum Bearing Bracket
14131205400 Frigidaire Screw
15HEATER HOUSING & DUCT
173204254 Frigidaire Baffle Assembly
18SCREW (3) (PART OF REAR BEARING KIT.)
19134138400 Frigidaire Drum Kit Assembly O/S3 Xxx
20(RING) BEARING
21WCI 3204260
22PANEL – FRONT – WHITE
22WCI 3204262
23WCI 08011280
24SCREW (8)
25131658800 Frigidaire Dryer Door Catch Repair Kit
26DOOR-SWITCH
27WCI 3204264
27WCI 3204263
28CLIP GUIDE (4)
29131382300 Frigidaire Screw-VANE
30137552900 Frigidaire Vane
31WCI 5303207393
325303931781 Frigidaire Shaft
33WCI 5303207396
34131168200 Frigidaire Dryer Screw
38PANEL – SIDE – WHITE
38WCI 3204272
39WCI 3204274
39PANEL-ACCESS, WHITE
40SCREW
41HINGE-UPPER
41AHINGE-LOWER
42A131302800 Frigidaire Drum Vane Screw
43WCI 3204278
44WCI 5303208613
45HOUSING – LINT FILTER – WHITE
46WCI 3204281
46WCI 3204282
47WCI 5303207398
47WCI 3204283
48WCI 3204284
48WCI 3204285
495303207102 Frigidaire Door Strike
50134535300 Frigidaire Insulator
51RECEPTACLE-LAMP
52131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
53WCI 3204342
54WCI 5303270324
55WCI 3204290
57WCI 5303270325
58WCI 3204293
59ADHESIVE STRIP
