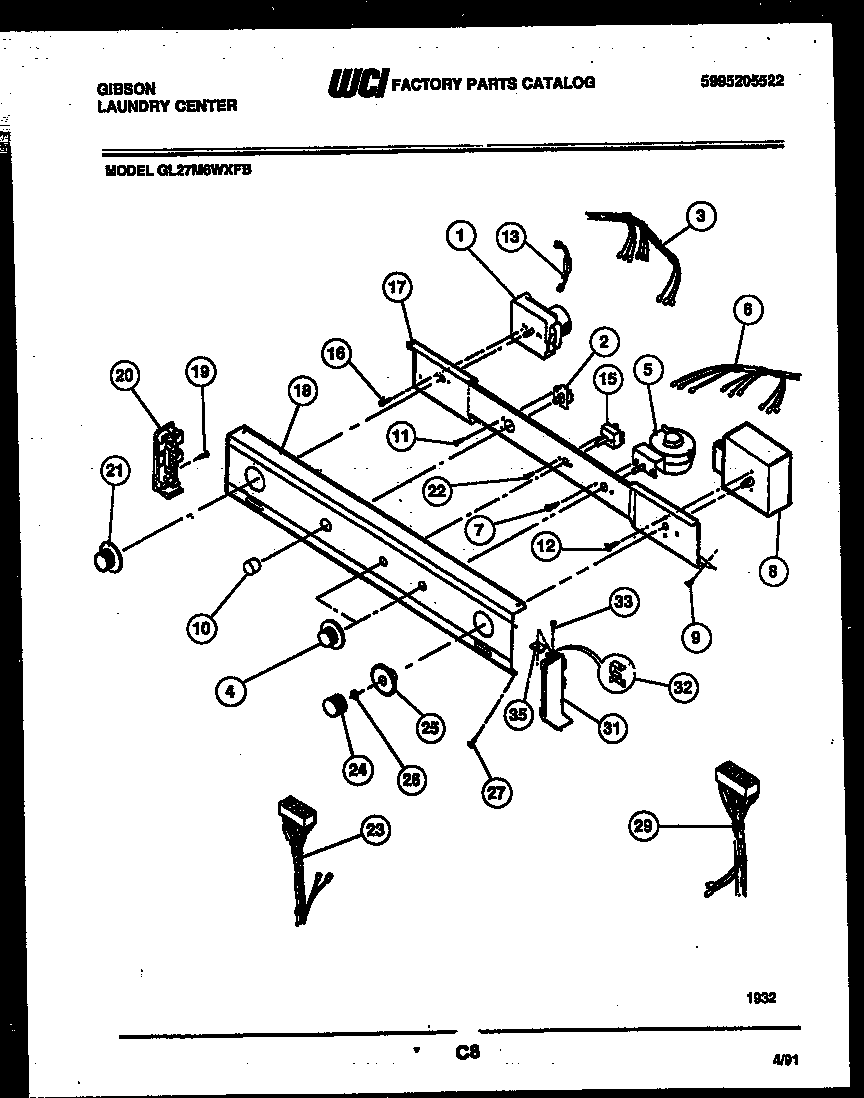

GL27M6WXFB 04 – CONSOLE AND CONTROL PARTS

Written by

Products

Position	Product
*37013	SPACER PAD-CONTROL PANEL BRACKET (2)
1	TIMER-DRYER
3	WCI 5303270333
4	131858004 Frigidaire Control Knob, White
5	WCI 5303937062
6	WCI 5303209141
8	WCI 5303209142
9	131302800 Frigidaire Drum Vane Screw
10	WCI 3205632
11	WCI 08001544
13	RESISTOR, 3.0K
15	WCI 5308008463
16	SCREW (2)
17	WCI 3205639
18	WCI 5303270334
19	131168200 Frigidaire Dryer Screw
20	WCI 5303209671
21	131859104 Frigidaire Dryer Timer Knob
22	WCI 3161259
23	WCI 5303271182
24	WCI 5303210341
25	WCI 5303209901
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 5303209145
31	WCI 5303210650
32	WCI 3204357
33	SCREW (2)
35	CLIP (8)
