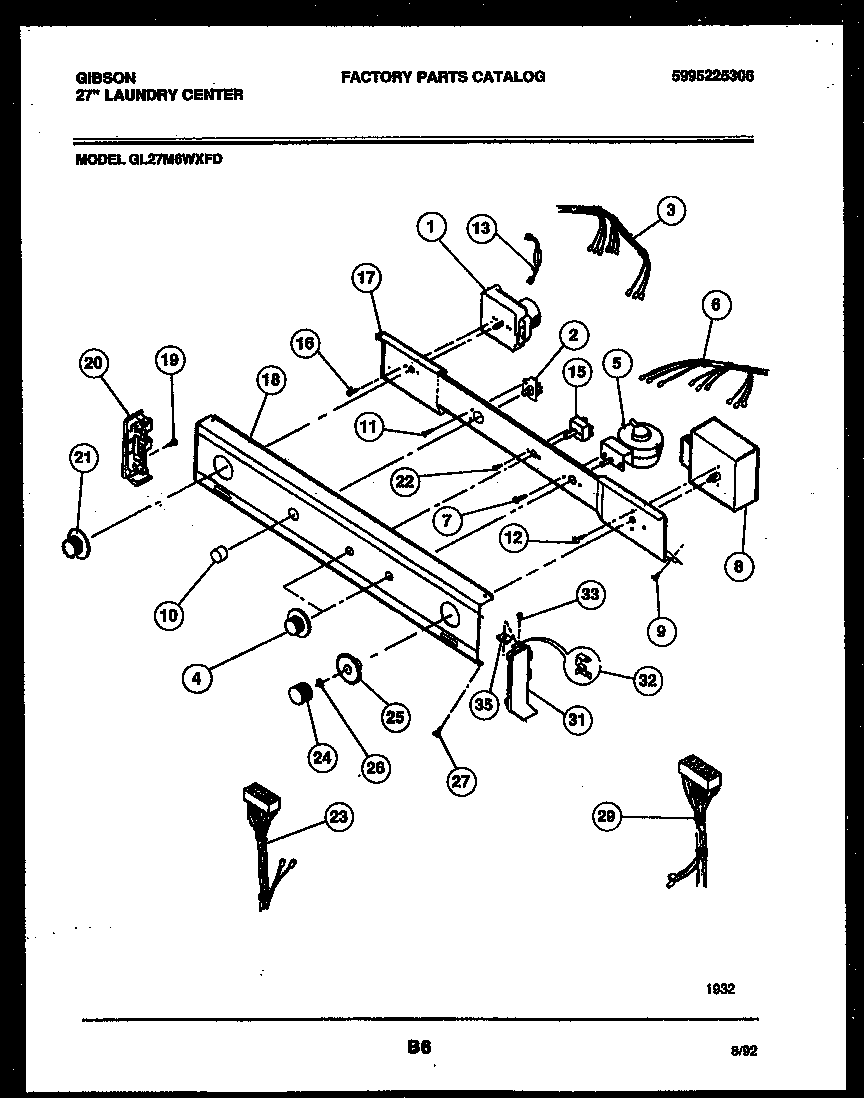

GL27M6WXFD 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*56280	WCI 5303286537
*56280	SPACER PAD-CONTROL PANEL BRACKET (2)
1	131062300 Frigidaire Timer
2	WCI 5303209890
3	WCI 5303270333
4	131858004 Frigidaire Control Knob, White
5	WCI 5303209894
6	WCI 131014200
8	WCI 5303271775
9	131302800 Frigidaire Drum Vane Screw
10	WCI 3205632
11	WCI 08001544
12	SCREW (2)
13	RESISTOR, 3.0K
15	WCI 5308008463
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131025802
18	WCI 5303270334
19	131168200 Frigidaire Dryer Screw
20	WCI 5303209671
21	131859104 Frigidaire Dryer Timer Knob
22	WCI 3161259
23	WCI 5303271182
24	WCI 5303210341
25	WCI 5303209901
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 5303209145
31	WCI 5303210650
32	WCI 3204357
33	SCREW (2)
35	CLIP (8)
