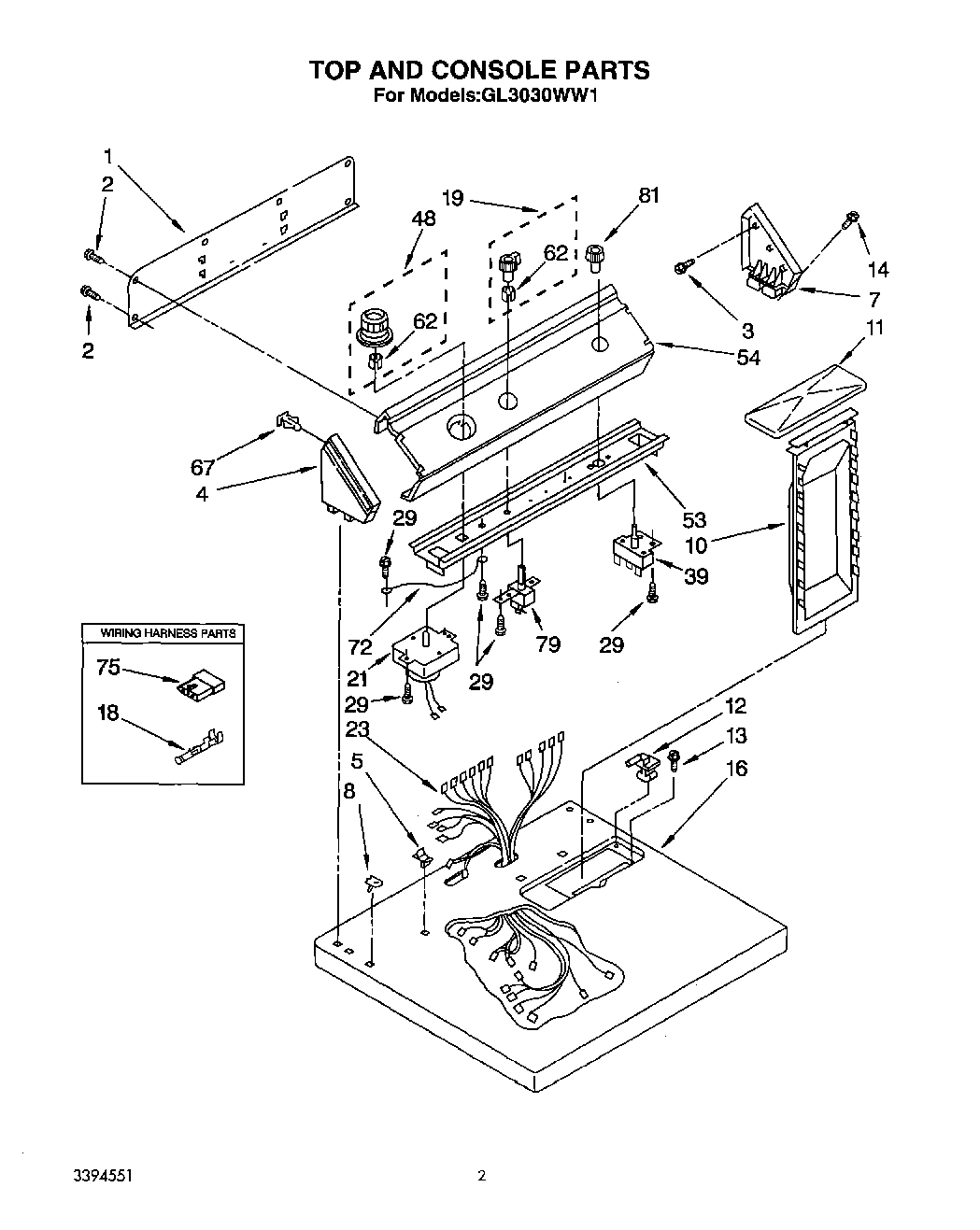

GL3030WL1 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	WPL LIT677971
	WPL LIT677967
	Dryer
	Washer (Belt Drive)
	Instructions, Installation
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	List, Service Parts
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	Use & Care Guide
	350938 Whirlpool Spray Gun
1	Panel, Rear
2	WP489069 Whirlpool Compactor Screw
3	WPL 355326
4	Cap, End (L.H.)
5	Stop, Push-In Top
7	WPL 63796
8	Nut, Push-In (2)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
16	Top (Almond)
16	Top (White)
18	WP94614 Whirlpool Terminal
19	Knob, Temperature Selector
21	Timer Assembly, 60 Hz.
23	Harness, Wiring
29	WP3390631 Whirlpool Screw
39	Switch, Push-To-Start
48	Timer Knob & Dial
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
79	Switch, Temperature Selector
81	Knob, Push-To-Start
