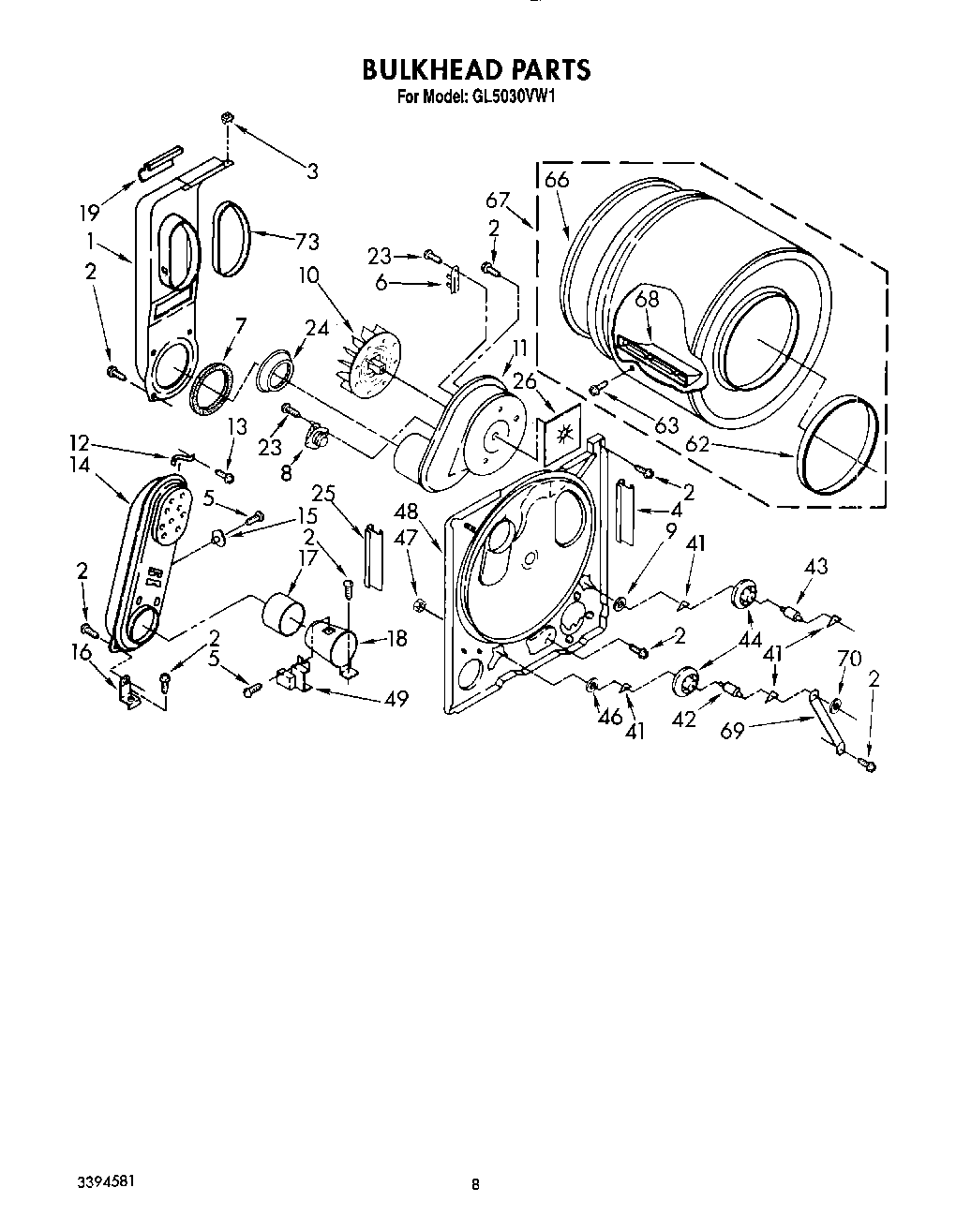

GL5030VL1 05 – BULKHEAD

Products

Position	Product
1	279505 Whirlpool Chute
2	SCREW
3	98460 Whirlpool Nut
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	W11415783 Whirlpool Seal
8	WP3387134 Whirlpool Dryer Cycling Thermostat
9	WP3388703 Whirlpool Washer
10	WP694089 Whirlpool Dryer Blower Wheel
11	Housing, Blower
12	279771 Whirlpool Clip
15	Thermostat SPST (205)
15	(Alt.)
15	Thermostat, 205 F (96 C)
16	Support, Heater Box (2)
17	279900 Whirlpool Box O/S1
19	686770 Whirlpool Support Bracket
23	WP965173 Whirlpool Dishwasher Screw
24	W11233063 Whirlpool Shield Assembly
25	686889 Whirlpool Pad
26	Seal, Blower
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP358160 Whirlpool Nut
48	Bulkhead
49	WP338906 Whirlpool Dryer Gas Sensor
62	WP3394508 Whirlpool Bearing Ring
63	Screw, 11-16 x 7/8
66	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67	3396775 Whirlpool Drum Assembly
68	WP342847 Whirlpool Drum Baffle
69	Bracket, Support
70	WP90296 Whirlpool Clip
73	SEAL
