GL5030VW0 03 – 694670 BURNER

Products

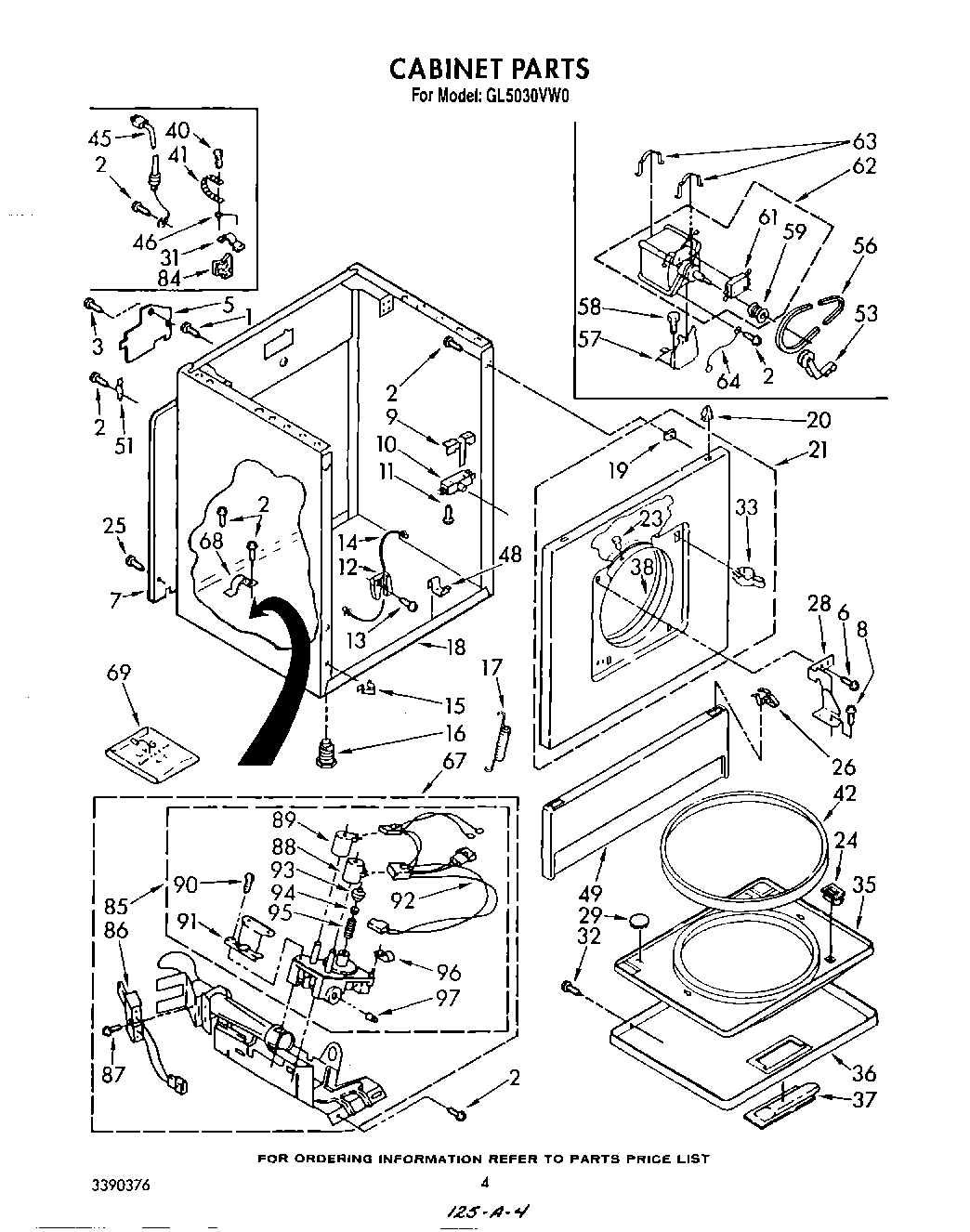

Position	Product
2	SCREW
3	WP693995 Whirlpool Screw
5	W11736322 Whirlpool Cover Assembly
7	Panel, Rear
8	WP488627 Whirlpool Refrigerator Screw
9	WP691581 Whirlpool Actuator
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
12	GUIDE
12	Guide, Cable (R.H.)
13	WP90767 Whirlpool Screw
14	Cable, Door (2)
15	Clip, Toe Panel
16	49621 Whirlpool Leveling Feet
17	WP337186 Whirlpool Door Spring
18	Cabinet (Almond)
18	Cabinet (White)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Upper Front Panel (Almond)
21	Upper Front Panel (White)
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
25	WP489069 Whirlpool Compactor Screw
26	WP3388229 Whirlpool Dryer Spring Clip
28	WP238460 Whirlpool Hinge
28	Hinge, Door (R.H.)
29	WP660975 Whirlpool Button Plug
31	8528351 Whirlpool Clip
32	WP694091 Whirlpool Screw
35	Door, Rear
36	Door, Front (Almond)
36	Door, Front (White)
37	WP348721 Whirlpool Handle
37	Handle, Door (Almond)
38	279264 Whirlpool Bearing and Seal Kit
40	Screw, Ground (10-24 x 1)
41	Strap, Ground
42	W11613302 Whirlpool Door Seal
45	W11222083 Whirlpool Power Cord
46	WPL 364089
48	WP297092 Whirlpool Clip
49	Panel, Toe (Almond)
49	Panel, Toe (White)
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
61	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
64	Wire, Ground (Motor)
67	Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
68	341029 Whirlpool Clamp
69	Kit, Conversion Type 1 To Type 3 (MFD)
69	49572A Whirlpool Dryer Propane Gas Conversion Kit
84	Clip, Harness (Rear Bulkhead Area)
85	279923 Whirlpool Gas Valve
86	279311 Whirlpool Dryer Flat Igniter with Bracket
87	WPW10366705 Whirlpool Screw
88	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
90	694421 Whirlpool Screw Assembly
91	694538 Whirlpool Bracket
92	WP3401850 Whirlpool Wire Harness
93	WP694424 Whirlpool Limiter
94	WP694423 Whirlpool Regulator
95	WP694422 Whirlpool Spring
96	WPL 694510
97	W10295523 Whirlpool Plug
