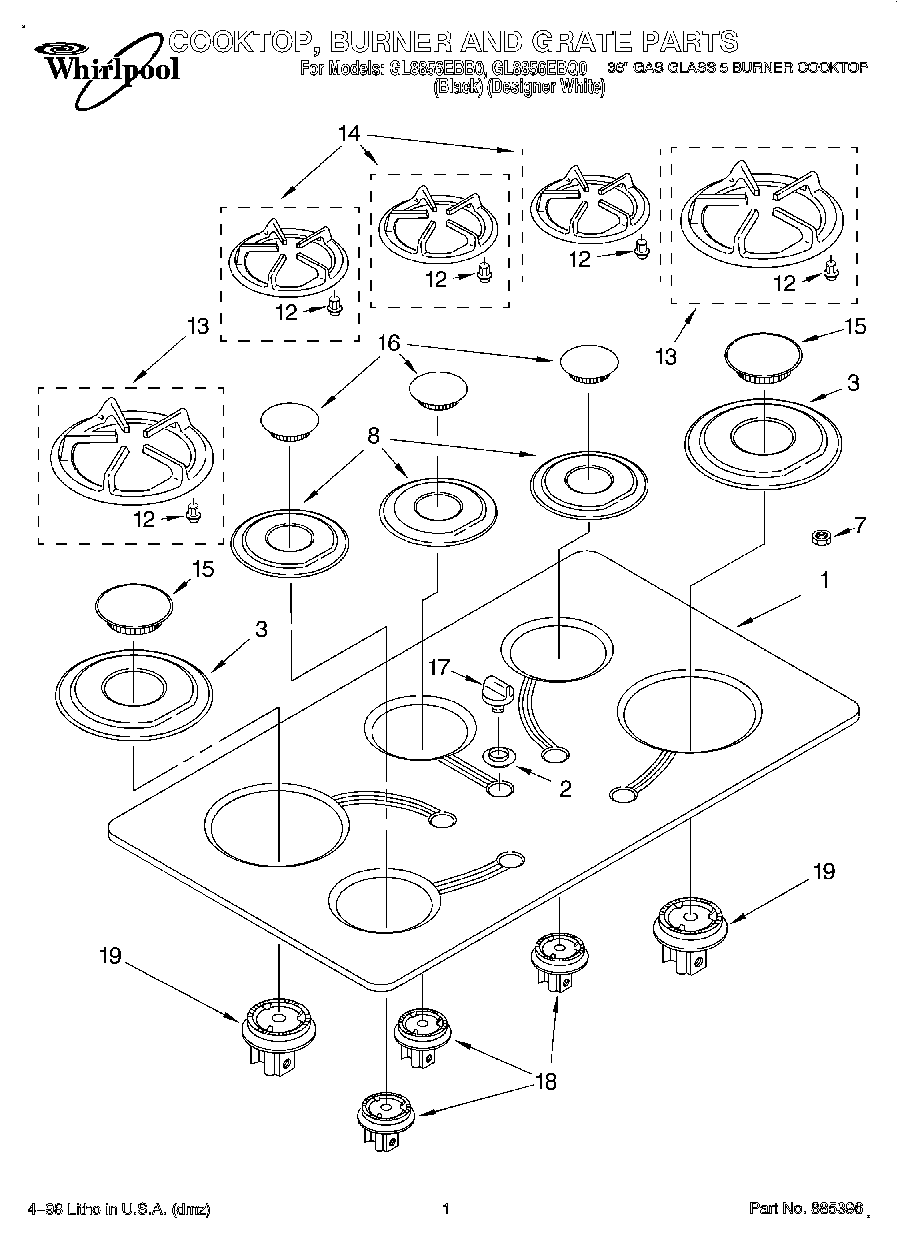

GL8856EBQ0 01 – SECTION

Products

PositionProduct
1Cooktop, Glass (Black)
1Cooktop, Glass (White)
2W10854242 Whirlpool Grommet
2WP3180081 Whirlpool Grommet
3Bezel, Cooktop (Large) (Black)
3Bezel, Cooktop (Large) (White)
7Speed Nut (15)
8Bezel, Cooktop (Small) (White)
8Bezel, Cooktop (Small) (Black)
12814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
13Grate, Large (RF & LR) (Includes No. 12) (White)
13Grate, Large (RF & LR) (Includes No. 12) (Black)
14Grate, Small (LF & RR) (Includes No. 12) (Black Model)
14Grate, Small (LF & RR) (Includes No. 12) (White Model)
15Cap, Rapid Burner Large (2) (Black)
15Cap, Rapid Burner Large (2) (White)
16Cap, Semi Rapid Small (2) (White)
16Cap, Semi Rapid Small (2) (Black)
17Knob, Control (4) (Black)
17Knob, Control (4) (White)
18Burner, Small (2)
19Burner, Large (2)
