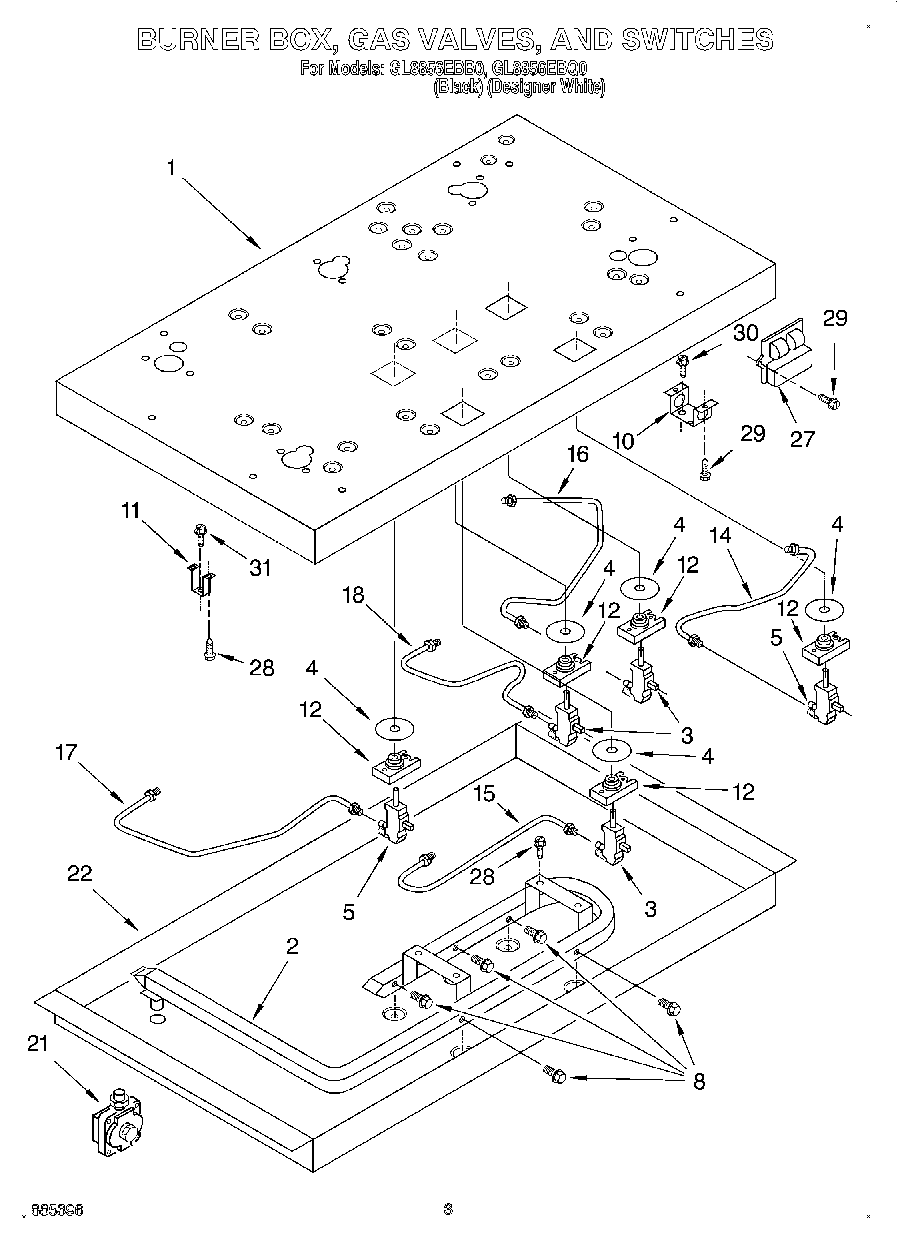

GL8856EBQ0 02 – SECTION

Products

Position	Product
	Safer Cooking Tips
	Installation Instructions
	Use & Care Guide
	Wiring Diagram
1	Backer Plate
2	Pipe, Manifold
3	Valve, Gas Burner (LF, RR, & CR)
4	WP3188425 Whirlpool Seal Switch
5	Valve, Gas Burner (RF & LR)
8	Bolt (Gas Valve)
10	Bracket, Burner (4)
11	Bracket, Burner Box (9)
12	WP3190779 Whirlpool Igniter Switch
14	Tubing, Large Gas Burner (RF)
15	Tubing, Small Gas Burner (LF)
16	Tubing, Large Gas Gas Burner (RR)
17	Tubing, Small Gas Burner (LR)
18	Tubing, Small Burner (CR)
21	Regulator, Pressure
22	Burner Box
27	WPW10110486 Whirlpool Spark Module
28	WP3177991 Whirlpool Screw
29	Screw
30	Screw
31	Screw (2)
