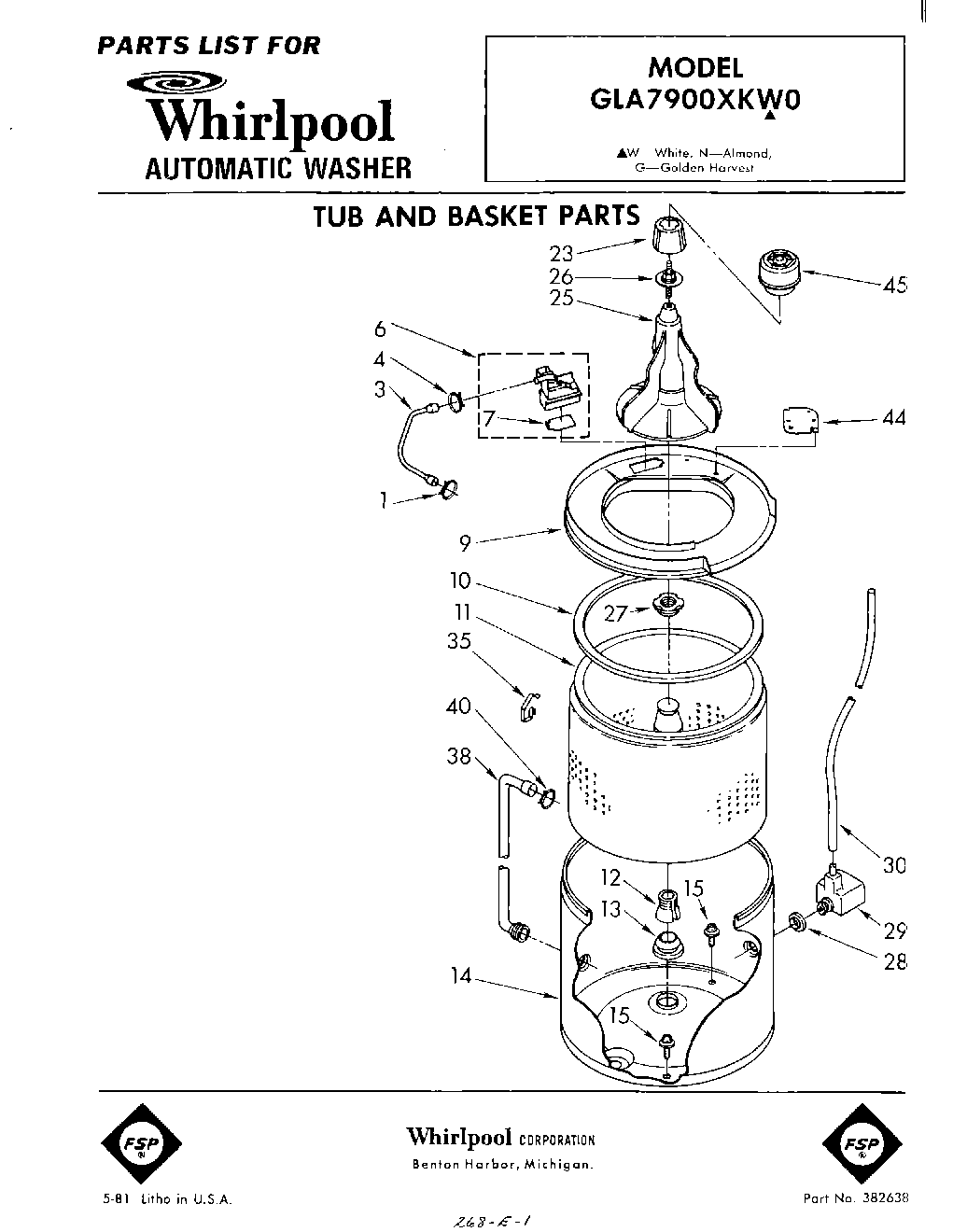

GLA7900XKW0 01 – TUB AND BASKET

GLA7900XKW0 01 – TUB AND BASKET

Written by

in

GLA7900XKW0 01 – TUB AND BASKET

Products

PositionProduct
3Hose, Water Inlet
6Inlet, Water
7Flapper
9Ring & Filter, Tub (Includes Illus. 22)
10Seal, Tub Ring
11Basket
12Block, Drive
13W10814296 Whirlpool Washer Center Post Seal Gasket
14Tub
15Screw & Washer, Tub (4)
23Cap, Agitator
25Agitator
26Stud, Agitator Shaft
27WP21366 Whirlpool Spanner Nut
28Seal
29Air Dome Assembly
30WP353244 Whirlpool Hose
35Clip, Tub Ring (4)
38Hose, Dispenser
40WP596669 Whirlpool Hose Clamp
44Plate, Snubber
45Dispenser, Rinse
