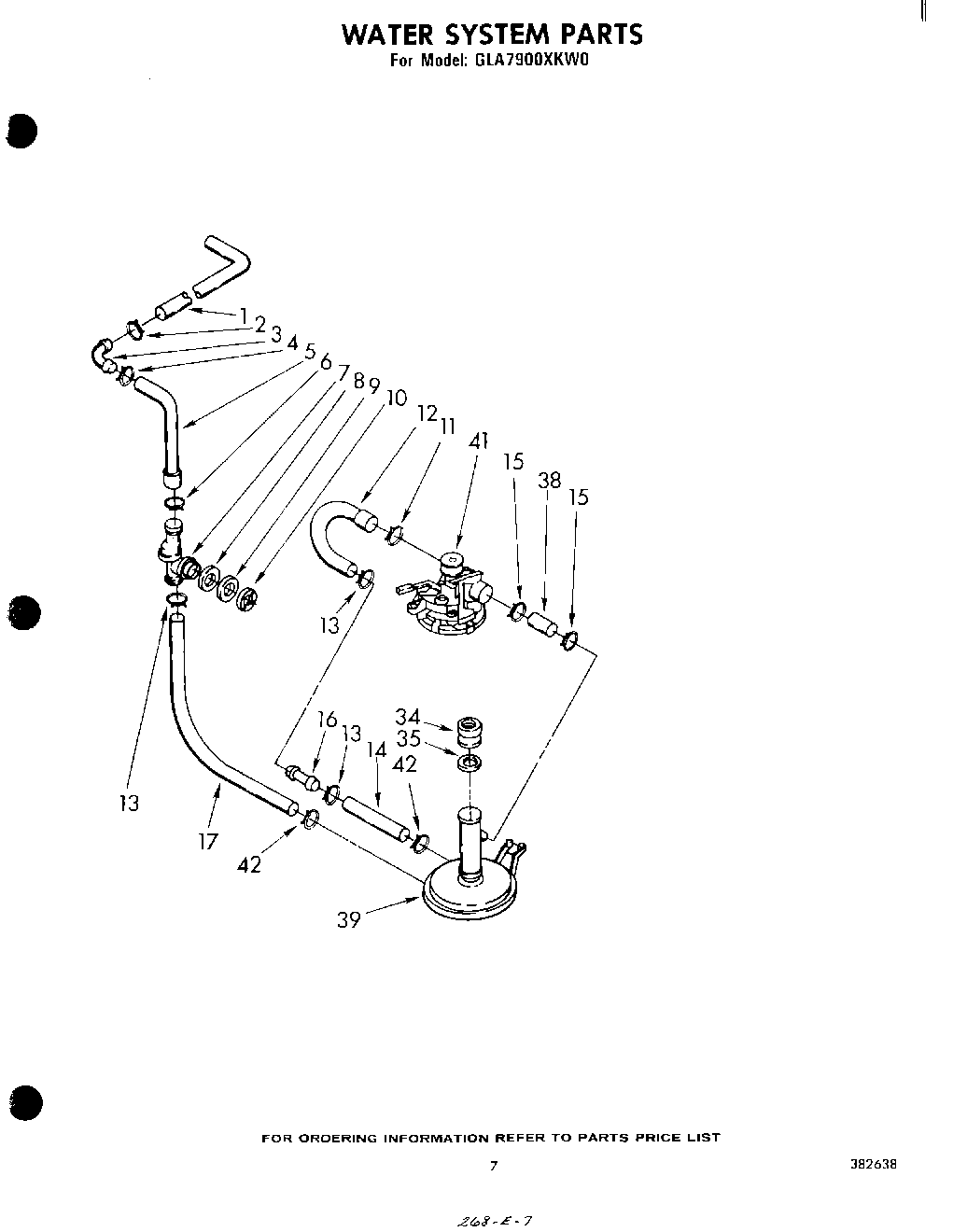

GLA7900XKW0 06 – WATER SYSTEMadmin2025-04-26T10:32:46+00:00GLA7900XKW0 06 – WATER SYSTEM
Products
| Position | Product |
|---|
| 1 | Hose, Gooseneck |
| 3 | Connector, Hose |
| 5 | Hose, Side Check to Drain |
| 6 | WP356138 Whirlpool Hose Clamp |
| 7 | Valve, Side Check |
| 8 | Washer, Rubber |
| 9 | Washer, Fiber |
| 10 | Nut, Spanner |
| 11 | WP616099 Whirlpool Clamp |
| 12 | Hose |
| 13 | Clamp, Hose (Alternate) |
| 13 | Clamp, Hose (Alternate) |
| 14 | Hose, Pump To Filter |
| 15 | WP285655 Whirlpool Hose Clamp |
| 16 | WP16272 Whirlpool Hose Coupling |
| 17 | Hose, Side Check To Filter |
| 34 | Hose, Tub Outlet |
| 35 | Clip, Hose |
| 38 | Hose |
| 39 | Manifold & Filter Assembly |
| 41 | 350365 Whirlpool Dryer Washer Water Pump, 2-Port |
