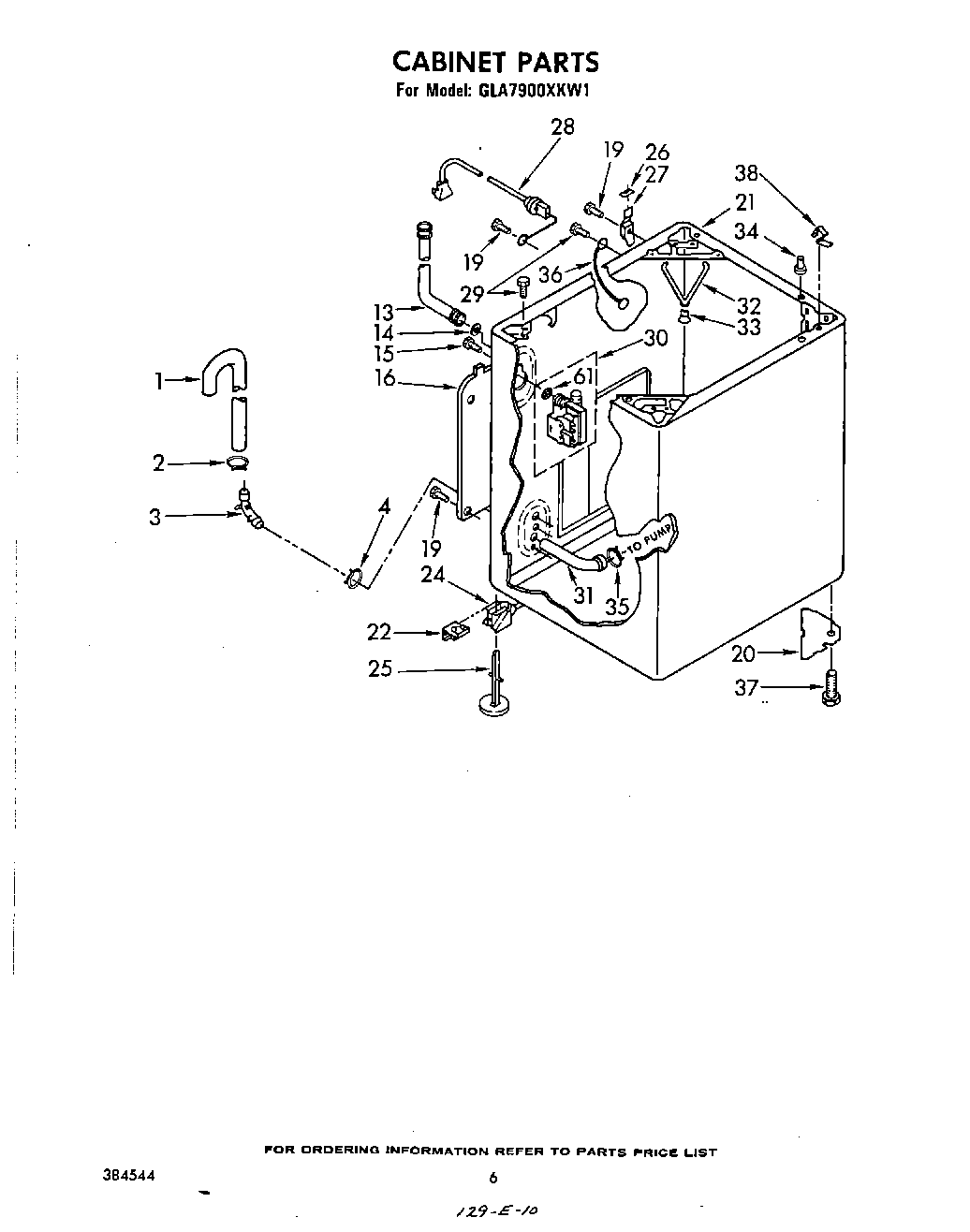

GLA7900XKW1 05 – CABINET

Products

Position	Product
1	WP96743 Whirlpool Hose
2	WP356138 Whirlpool Hose Clamp
3	Connector, Hose
13	WP89503 Whirlpool Washer Fill Hose
14	WP16123 Whirlpool Washer
15	WP3351614 Whirlpool Screw
16	Panel, Rear
20	Plate, Gusset
21	Cabinet (White)
21	Cabinet (Almond)
21	Cabinet (Golden Harvest)
22	WP359364 Whirlpool Clip
24	Link, Leveling
25	WP358594 Whirlpool Leveling Feet
26	18849 Whirlpool Pad
27	Hinge, R.H.
27	Hinge, L.H.
28	Cord, Power (60 Hz.)
29	SCREW
30	Valve, Mixing (Alt.) (Serviced Only As Complete Valves)
30	Valve, Mixing (Alt.)
31	Hose, Pump Discharge
32	Spring, Snubber
33	Pad, Snubber
34	Locator, Top
35	WP285655 Whirlpool Hose Clamp
36	WPL 364089
37	WP367594 Whirlpool Leveling Feet
38	WP18776 Whirlpool Lock
61	WP96160 Whirlpool Washer Inlet Valve Screen
