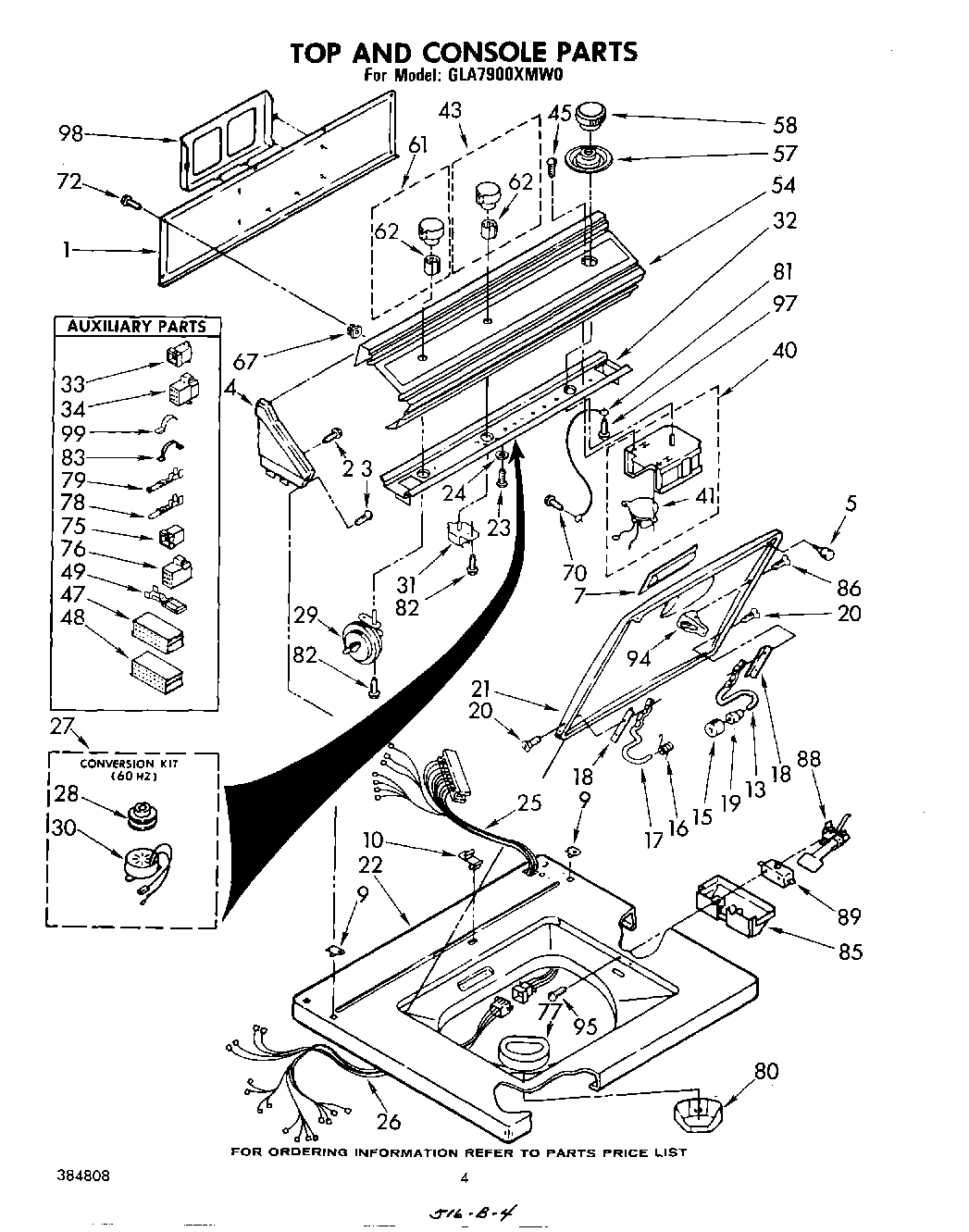

GLA7900XMW0 04 – TOP AND CONSOLE

Products

Position	Product
1	Panel, Rear Console
2	WPL 355326
3	Screw, 8-18 x 1 (2)
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End (L.H.) (Almond)
4	Cap, End L.H. (White)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End L.H. (Golden Harvest)
4	Cap, End (L.H.)
4	Cap, End (L.H.) (White)
5	WP9724509 Whirlpool Bumper
7	Handle, Lid (Almond)
7	Handle, Lid (White)
7	Handle, Lid (Golden Harvest)
9	Nut, Push-In (2)
10	Stop, Push-In Top
13	WP91770 Whirlpool Hinge
15	Bumper, Lid Hinge
16	Spring, Hinge
17	Hinge, L.H.
18	WP21097 Whirlpool Pad
19	WP21258 Whirlpool Washer Lid Hinge Bearing
20	SCREW
21	Lid (Golden Harvest)
21	Lid (White)
21	Lid (Almond)
22	Top (White)
22	Top (Almond)
22	Top (Golden Harvest)
24	WPL 92217
25	Harness, Console
26	Harness, Cabinet
27	Conversion Kit, 60 Hz. (This Kit Is Installed Into Machine. Contact Your Authorized Tech Care Agent
28	Pulley, Motor (60 Hz.)
29	Switch, Water Level
30	Use W/C.C.A. Timer
31	Switch, Water Temperature (Alt.)
31	Switch, Water Temperature (Alt.)
31	Switch, Water Temperature 358934 (Alt.) 358935 (Alt.)
32	Bracket, Control
33	Cap, Terminal (15 Way)
34	Plug, Terminal (15 Way)
40	Timer Assembly, 50 Hz.
41	Motor Timer (50 Hz.)
43	Knob, Water Temperature
45	WP356418 Whirlpool Screw
47	W10876590 Whirlpool Connector
48	Timer, Block Disconnect (White)
49	Terminal, Female
54	Panel,
57	Dial, Timer
58	Knob, Timer
61	Knob Assembly, Water Level
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
70	WP3351614 Whirlpool Screw
72	W11693756 Whirlpool Screw Assembly
75	Cap, Terminal (Console Harness)
76	Plug, Terminal (Cabinet Harness)
77	WPL 352821
78	WP596797 Whirlpool Terminal
79	WP94614 Whirlpool Terminal
80	WPL 352827
81	3184020 Whirlpool Oven Wire
82	WP90767 Whirlpool Screw
83	8528351 Whirlpool Clip
85	WP359231 Whirlpool Shield
86	Screw & Washer
88	Switch Actuator Assembly
89	W10820036 Whirlpool Door Switch Kit
94	Strike, Lid Switch
95	Screw & Washer, Lid Switch (2)
97	SCREW
98	Rack, Literature
99	WP90016 Whirlpool Clip
