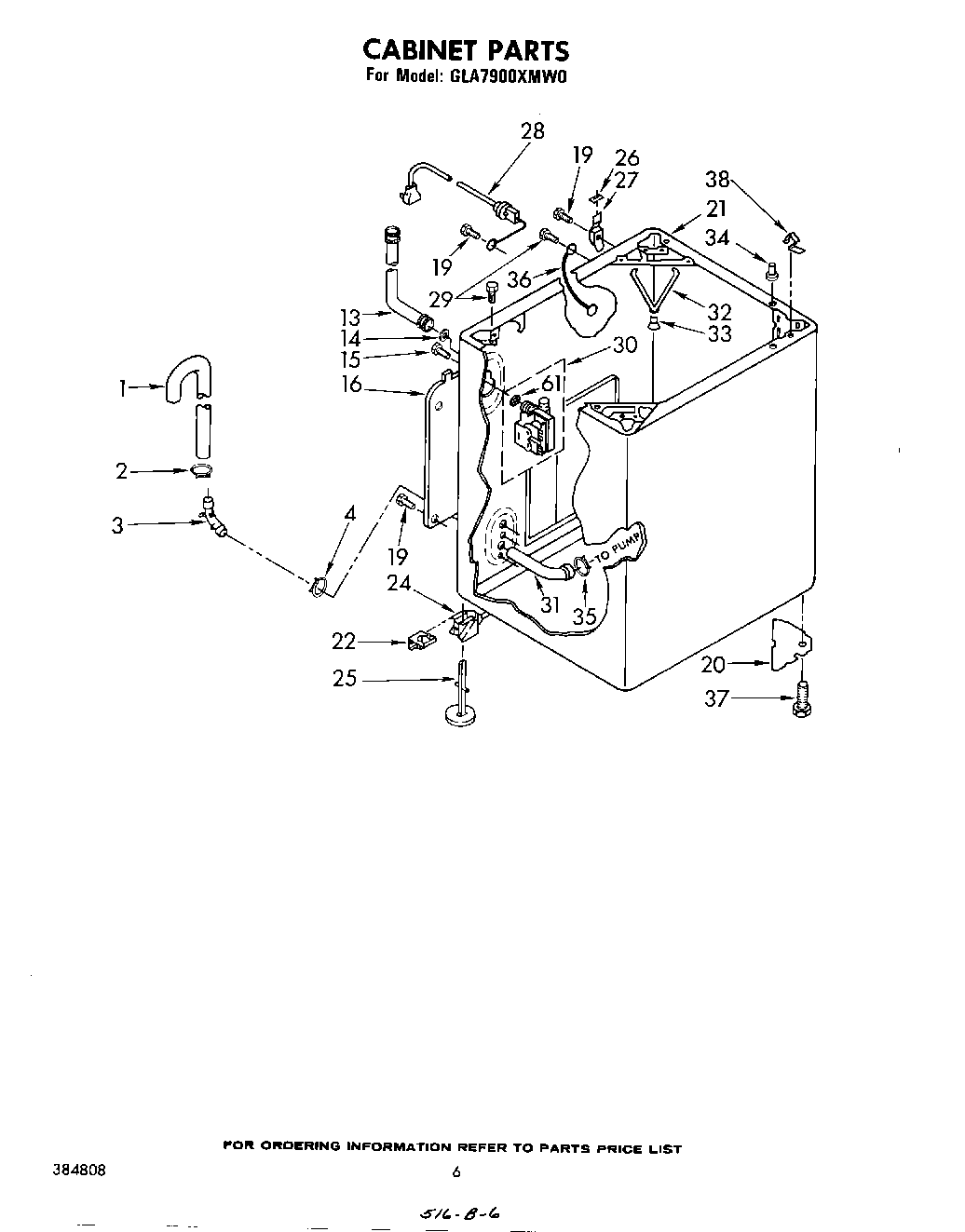

GLA7900XMW0 05 – CABINET

GLA7900XMW0 05 – CABINET

Written by

in

GLA7900XMW0 05 – CABINET

Products

PositionProduct
1WP96743 Whirlpool Hose
2WP356138 Whirlpool Hose Clamp
3Connector, Hose
13WP89503 Whirlpool Washer Fill Hose
14WP16123 Whirlpool Washer
15WP3351614 Whirlpool Screw
16Panel, Rear
20Plate, Gusset
21Cabinet
21Cabinet (Golden Harvest)
21Cabinet (Almond)
22WP359364 Whirlpool Clip
24Link, Leveling
25WP358594 Whirlpool Leveling Feet
2618849 Whirlpool Pad
27Hinge, R.H.
27Hinge, L.H.
28Cord, Power (60 Hz.)
29SCREW
30Valve, Mixing (Alt.) (Serviced Only As Complete Valves)
30Valve, Mixing (Alt.)
30Valve, Mixing (358277) (Alt.) (358971) (Alt.) (Serviced Only As Complete Assemblies)
31Hose, Pump Discharge
32Spring, Snubber
33Pad, Snubber
34Locator, Top
35WP285655 Whirlpool Hose Clamp
36WPL 364089
37WP367594 Whirlpool Leveling Feet
38WP18776 Whirlpool Lock
61WP96160 Whirlpool Washer Inlet Valve Screen
