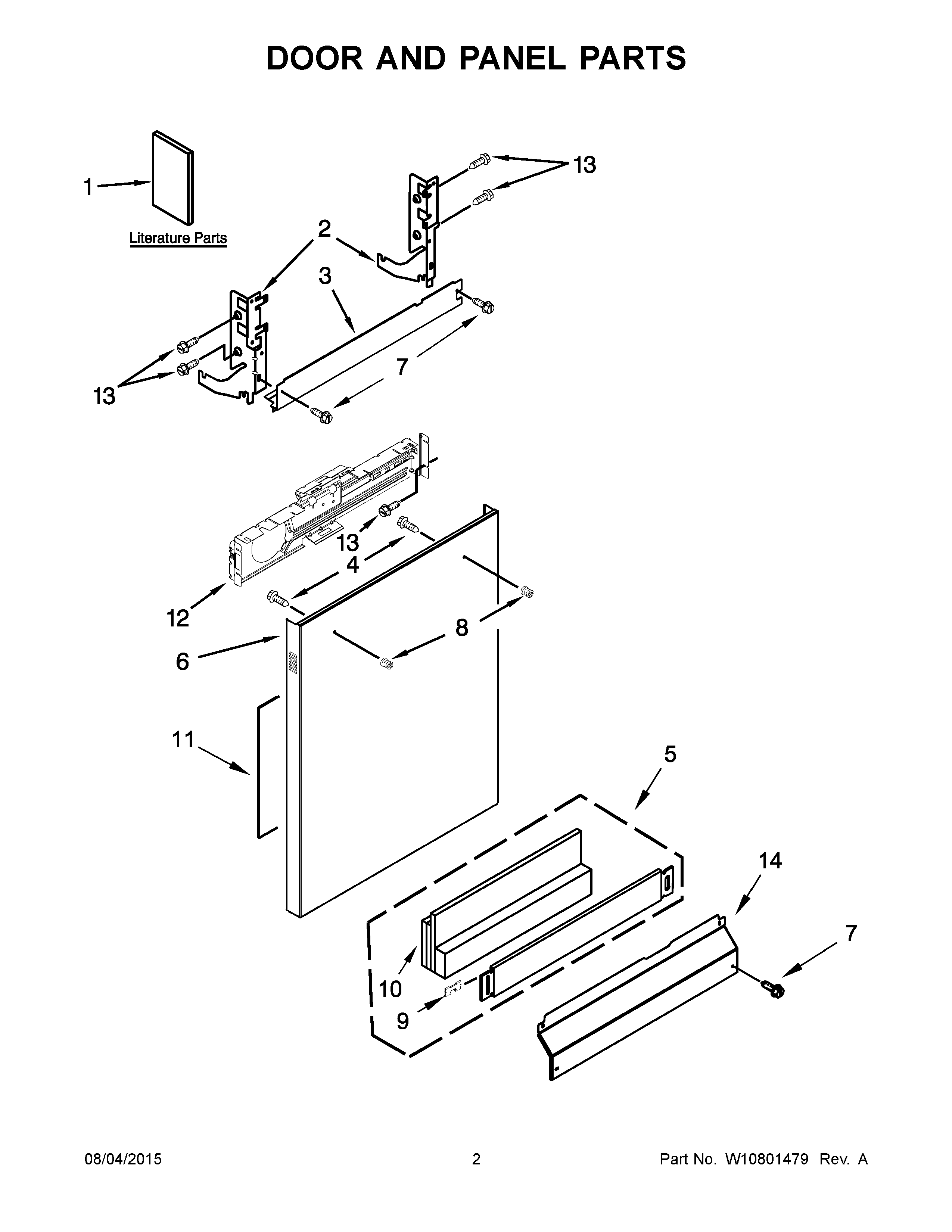

GLB14BBANA0 02 – DOOR AND PANEL PARTS

GLB14BBANA0 02 – DOOR AND PANEL PARTS

Written by

in

GLB14BBANA0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1USE & CARE GUIDE, PORTUGUESE
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10826179 Whirlpool Dishwasher Screw
5WPW10586591 Whirlpool Dishwasher Toe Panel
6W11431142 Whirlpool Panel
7WP302868 Whirlpool Screw
7AWPW10503549 Whirlpool Dishwasher Retainer Clip
8STUD, MOUNTING
9WP8269016 Whirlpool Clip Assembly
10SHIELD
11WPW10073520 Whirlpool Dishwasher Insulation Pad
12WPW10350242 Whirlpool Dishwasher Control Bracket
13WP3400071 Whirlpool Screw
14W10909066 Whirlpool Dishwasher Panel
