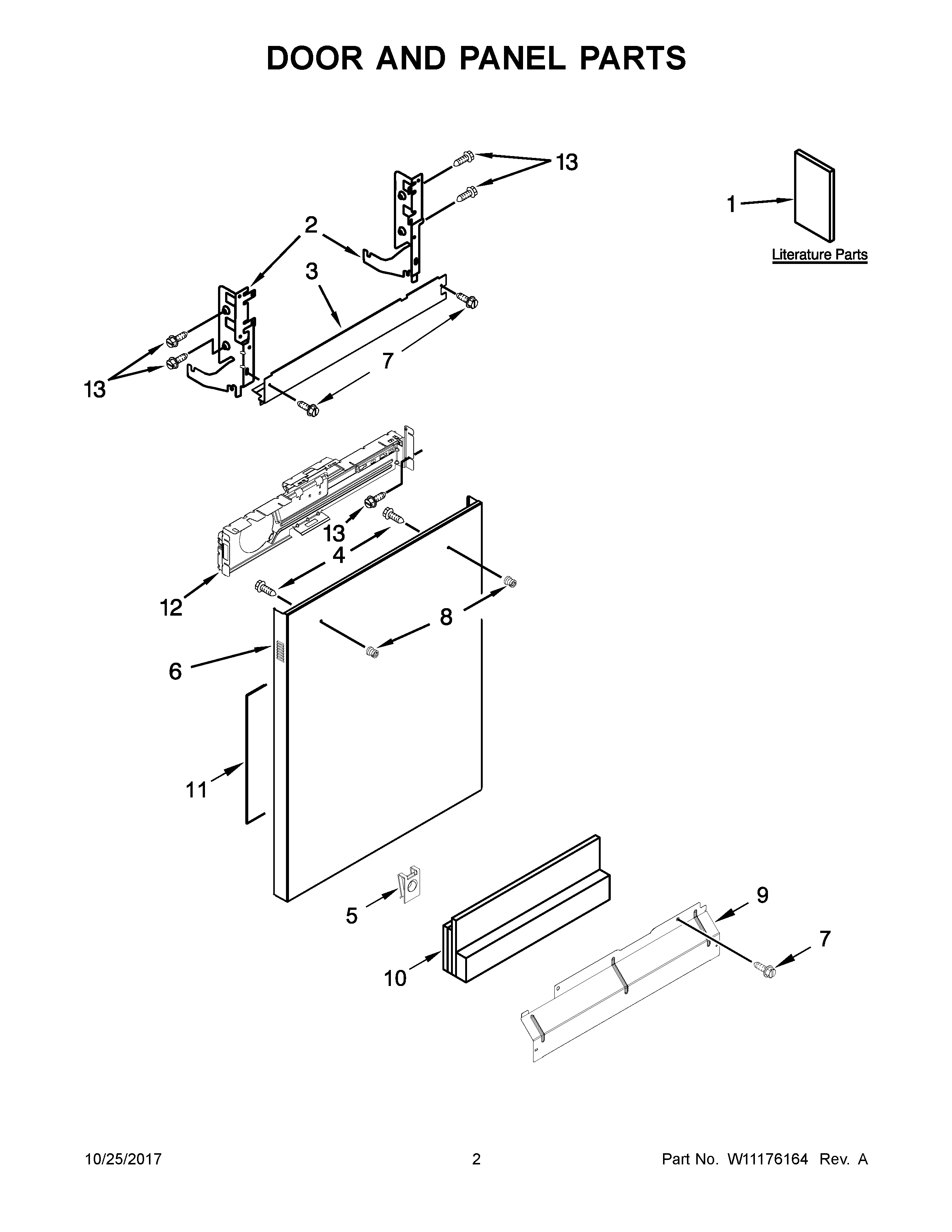

GLB14BBANA1 02 – DOOR AND PANEL PARTS

GLB14BBANA1 02 – DOOR AND PANEL PARTS

Written by

in

GLB14BBANA1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1USE & CARE GUIDE, PORTUGUESE
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10826179 Whirlpool Dishwasher Screw
5W10910629 Whirlpool Dishwasher Nut
6W11431142 Whirlpool Panel
7WP302868 Whirlpool Screw
7AWPW10503549 Whirlpool Dishwasher Retainer Clip
8STUD, MOUNTING
9W10909066 Whirlpool Dishwasher Panel
10SHIELD
11WPW10073520 Whirlpool Dishwasher Insulation Pad
12WPW10350242 Whirlpool Dishwasher Control Bracket
13WP3400071 Whirlpool Screw
