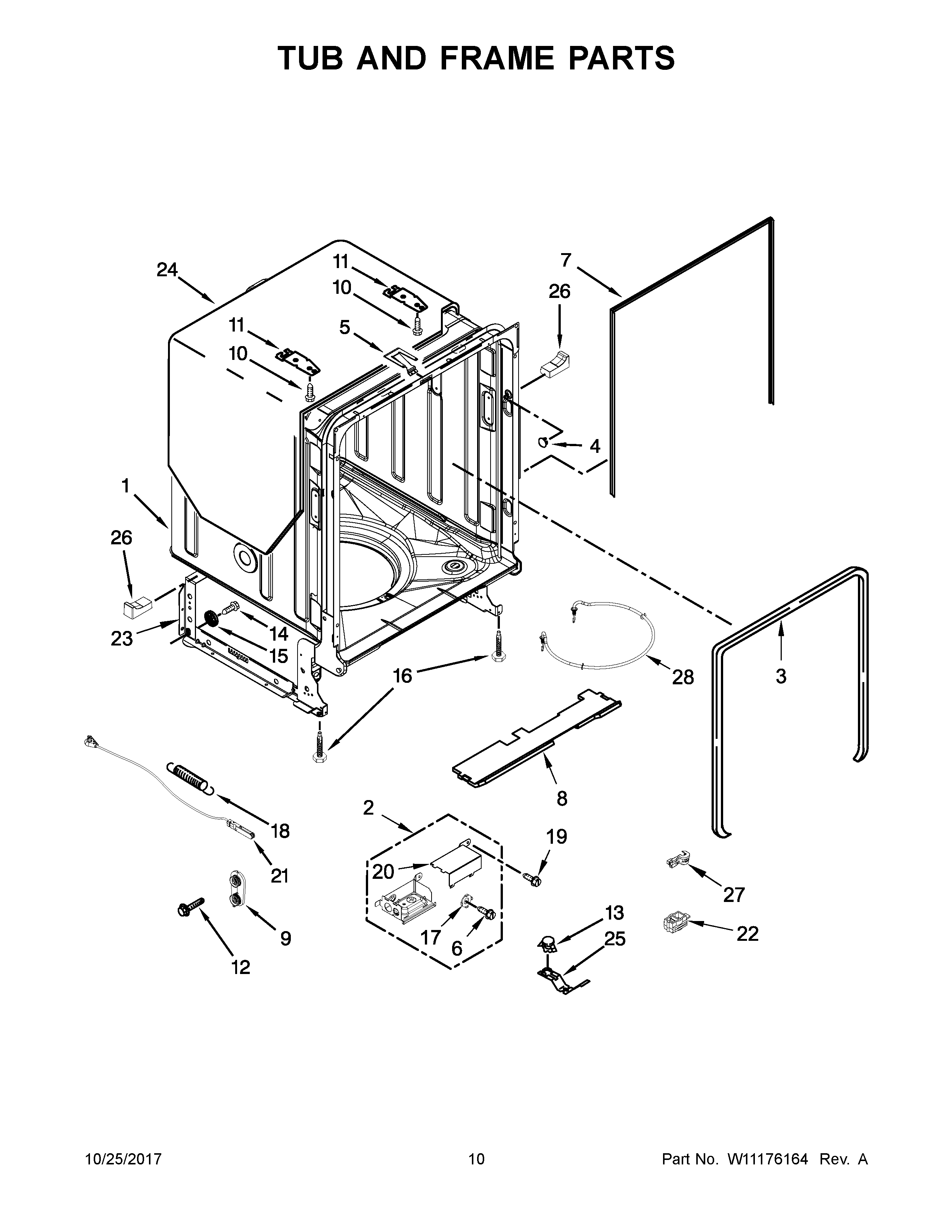

GLB14BBANA1 06 – TUB AND FRAME PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	TERMINAL BOX ASSEMBLY
3	W11177741 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WPW10544004 Whirlpool Dishwasher Strike
6	WP3400014 Whirlpool Dishwasher Screw
7	SEAL
8	W11747584 Whirlpool Insulation Pad
9	WPW10084086 Whirlpool Dishwasher Mount
10	WP308685 Whirlpool Microwave Screw
11	WP8269145 Whirlpool Dishwasher Mounting Bracket
12	WP3400074 Whirlpool Dishwasher Screw
13	WPW10195091 Whirlpool Thermostat
14	WPW10348411 Whirlpool Roller Wheel Screw
15	WPW10190778 Whirlpool Dishwasher Wheel
16	8193716 Whirlpool Leveling Leg
17	WP3378128 Whirlpool Dishwasher Washer
18	WP8270182 Whirlpool Door Spring Assembly
19	WP3400892 Whirlpool Dishwasher Screw
20	W10847918 Whirlpool Dishwasher Cover
21	8194001 Whirlpool Dishwasher Door Balance Link Kit
22	W10292870 Whirlpool Dishwasher Housing
23	WPW10681564 Whirlpool Dishwasher Support
24	W11086533 Whirlpool Dishwasher Shield
25	W10300703 Whirlpool Dishwasher Bracket Stat
26	W10195630 Whirlpool Dishwasher Spacer
26A	W10195631 Whirlpool Dishwasher Tank Spacer
27	STRAIN RELIEF
28	W10703867 Whirlpool Dishwasher Heating Element
