GLC3034HT5 01 – SECTION

GLC3034HT5 01 – SECTION

Written by

in

GLC3034HT5 01 – SECTION

Products

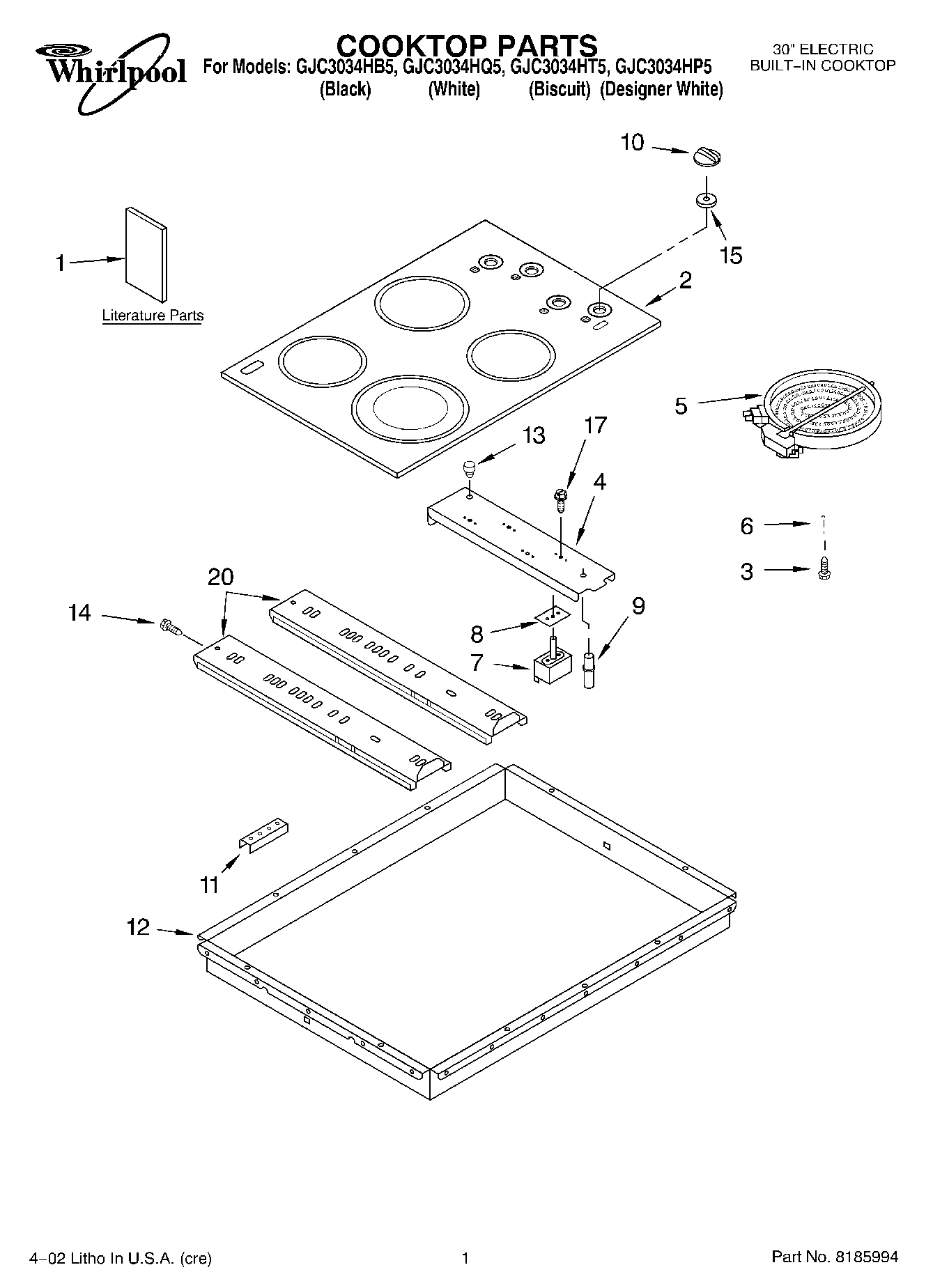

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
1Literature Parts (Wiring Diagram)
1Literature Parts (Energuide Label)
2Cooktop & Bracket Assembly (White)
2Cooktop & Bracket Assembly (Black)
2Cooktop & Bracket Assembly (Biscuit)
2COOKTOP (Designer White)
3WP486754 Whirlpool Compactor Screw
4Bracket, Switch Mounting
5W10823698 Whirlpool Surface Element Right Rear
5W10823692 Whirlpool Dual Radiant Element
5W10823699 Whirlpool Right Front Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
6Spring, Locator
7WP3191050 Whirlpool Infinite Switch
7WP3191049 Infinite Switch Left Rear Right Front
7WP4456027 Whirlpool Infinite Switch Right Rear
8W10491984 Whirlpool Switch Seal
9Light, Indicator
10WP3196231 Whirlpool Knob
10WP3196232 Whirlpool Knob
118186533 Whirlpool Hardware
11WP3400093 Whirlpool Screw
12Box, Burner
13Bumper, Silicone
14WP3196557 Whirlpool Screw
15Seal, Inifinite Switch
17WP486579 Whirlpool Air Conditioner Screw
20Wire, 25` Roll (Red 14 Ga.)
20WPL 4456015
20WPL 4456063
20WP3400015 Whirlpool Screw
20Wire, 25` Roll (Black 14 Ga.)
20Wire, 25“ Roll (White 14 GA.)
203183956 Whirlpool Oven Seal Switch
20W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20WPL 4456028
2018 Ga. 80~c Rating (Red)
20Wire (12 Ga. 150 c Black)
20Wire (14 Ga. 150 c Yellow)
20Wire (14 Ga. 150 c Orange)
20Wire (14 Ga. 150 c Green)
20Wire (14 Ga. 150 c Brown)
20Hardware Asm.
20242831 Whirlpool Oven Wire
201
20Rail, Element (2)
204455364 Whirlpool Oven Support Bracket
20WPL 3192737
20Wire (14 Ga. 200 c Brown)
