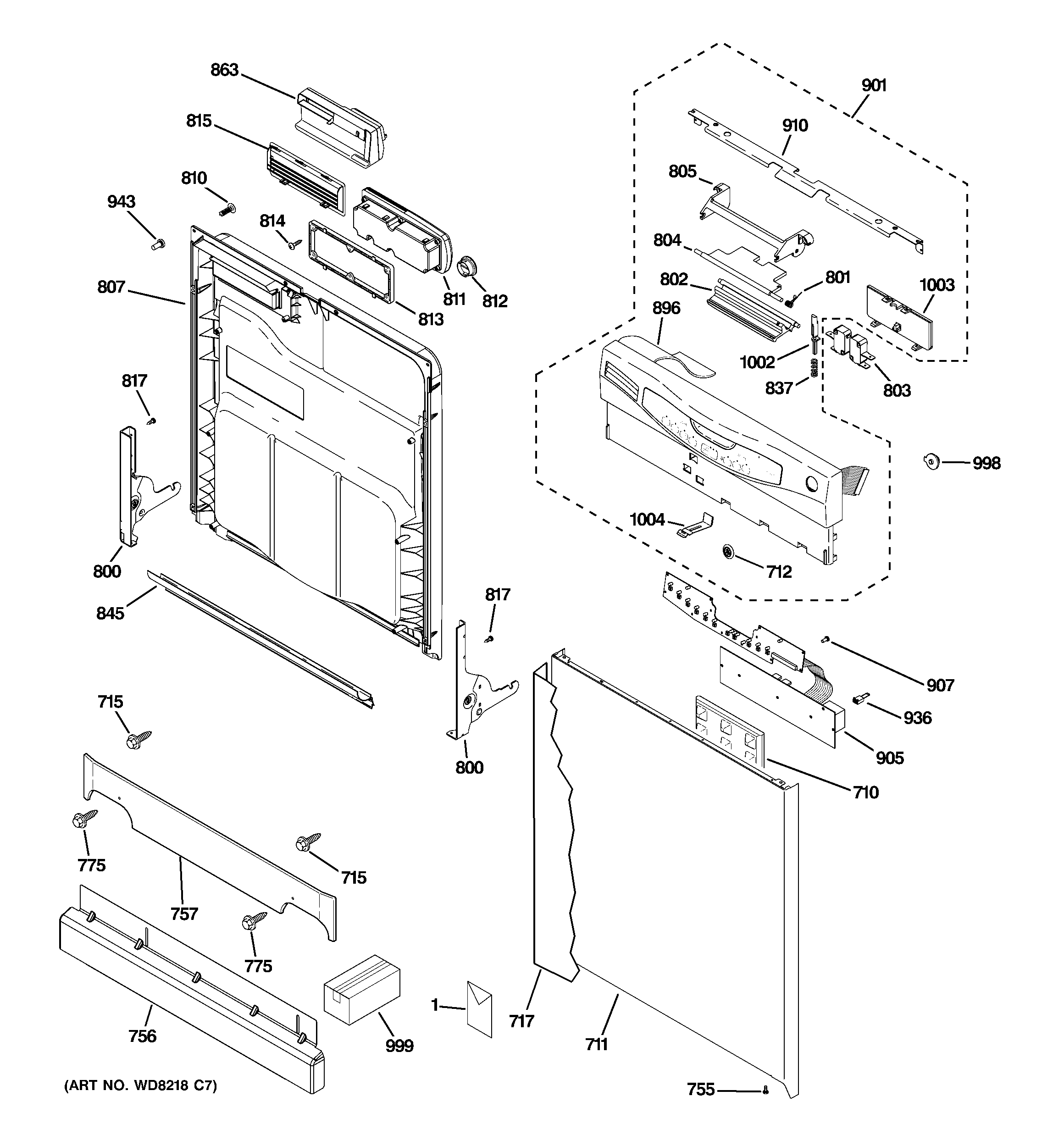

GLC5604V00BB ESCUTCHEON & DOOR ASSEMBLY

GLC5604V00BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GLC5604V00BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-55077
1GEN 31-30283
1GEN 31-30634
710GEN WD01X10304
711GEN WD34X11096
711GEN WD31X10082
712GEN WD34X11692
715WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
717GEN WD27X10210
717GEN WD27X10209
755WD2X430 GE Dishwasher Screw
756GEN WD27X10233
757WD27X10231 GE Dishwasher Toe Kick
775GEN WD02X10127
800GEN WD14X10024
800GEN WD14X10025
801WR02X10585 SPRING RECES
802GEN WD13X10007
802GEN WD13X10010
803WD21X10224 GE Dishwasher Interlock Switch
804WD13X10045 GE Dishwasher Handle Actuator
805GEN WD13X10009
807GEN WD31X10083
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10206 GE Dishwasher Rinse Cap Assembly
813GEN WD12X10146
814GEN WD02X10104
815GEN WD12X10192
817WD02X10162 GE Dishwasher 8-32 HXP 1/4" Screw
837WD03X10026 GE Dishwasher Spring Plunger
845WD08X10059 GE Dishwasher Seal
863GEN WD12X10288
896GEN WD12X10203
901GEN WD34X11777
901GEN WD34X11736
905WD21X10505 GE Dishwasher Control Tactile Assembly Kit
907WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
910GEN WD34X11691
936GEN WD21X10469
943WZ5X219D GE Screw Package
998GEN WD01X10560
998GEN WD01X10561
999KIT-PANEL SUPPORT CLIP
1002GEN WD12X10321
1003GEN WD12X10401
