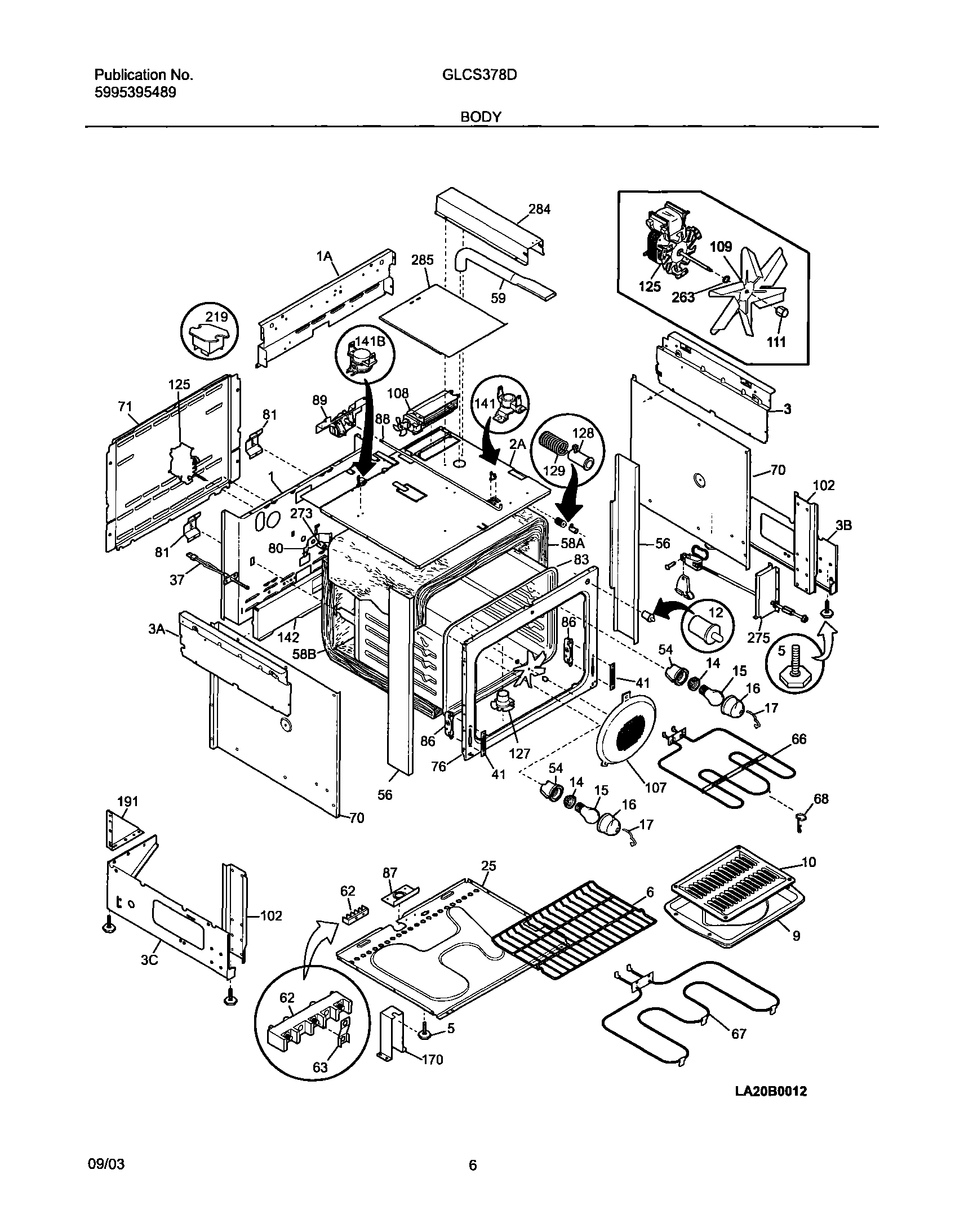

GLCS378DBA 07 – BODY

GLCS378DBA 07 – BODY

Written by

in

GLCS378DBA 07 – BODY

Products

PositionProduct
NISCREW,TRUSS HEAD,8-18 X 0.375
NIPLATE, OVEN TEMP PROBE (NOT ILLUSTRATED)
NI5303307980 Frigidaire Oven Screw
NI318235301 Frigidaire Assembly Connector
NIWCI 318246600
NI5303211311 Frigidaire Refrigerator Screw
NIWCI 318120711
NIWCI 318246500
1WCI 318066402
1AWCI 318225100
2AWCI 318227600
3BWCI 318160010
3AWCI 318225201
3WCI 318225200
3CWCI 318160011
5318175503 Frigidaire Screw with Bolt
6318025314 Frigidaire Oven Rack
8AWCI 318179107
9WCI 5303317977
10WCI 5303317976
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 318222400
56WCI 318225902
58AWCI 318133783
58BWCI 318133785
59WCI 318072534
625304409888 Frigidaire Oven Terminal Block with Hardware
63WCI 316208500
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
685304403015 Frigidaire Oven Support
70WCI 318194400
76WCI 318225302
80WCI 5303320846
81WCI 318192400
83WCI 318089616
86WCI 5303310524
87WCI 318111803
88WCI 318118904
89318095957 Frigidaire Oven Motor
102WCI 5303311142
107WCI 318219401
108318073028 Frigidaire Oven Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
125WCI 316136300
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
134WCI 5303310515
141WCI 318003607
141WCI 318005201
142WCI 318123901
170WCI 5304405244
191WCI 5303304030
219WCI 318112701
263316008401 Frigidaire Washer P-1
273WCI 5303311207
284WCI 318226600
285WCI 318236200
