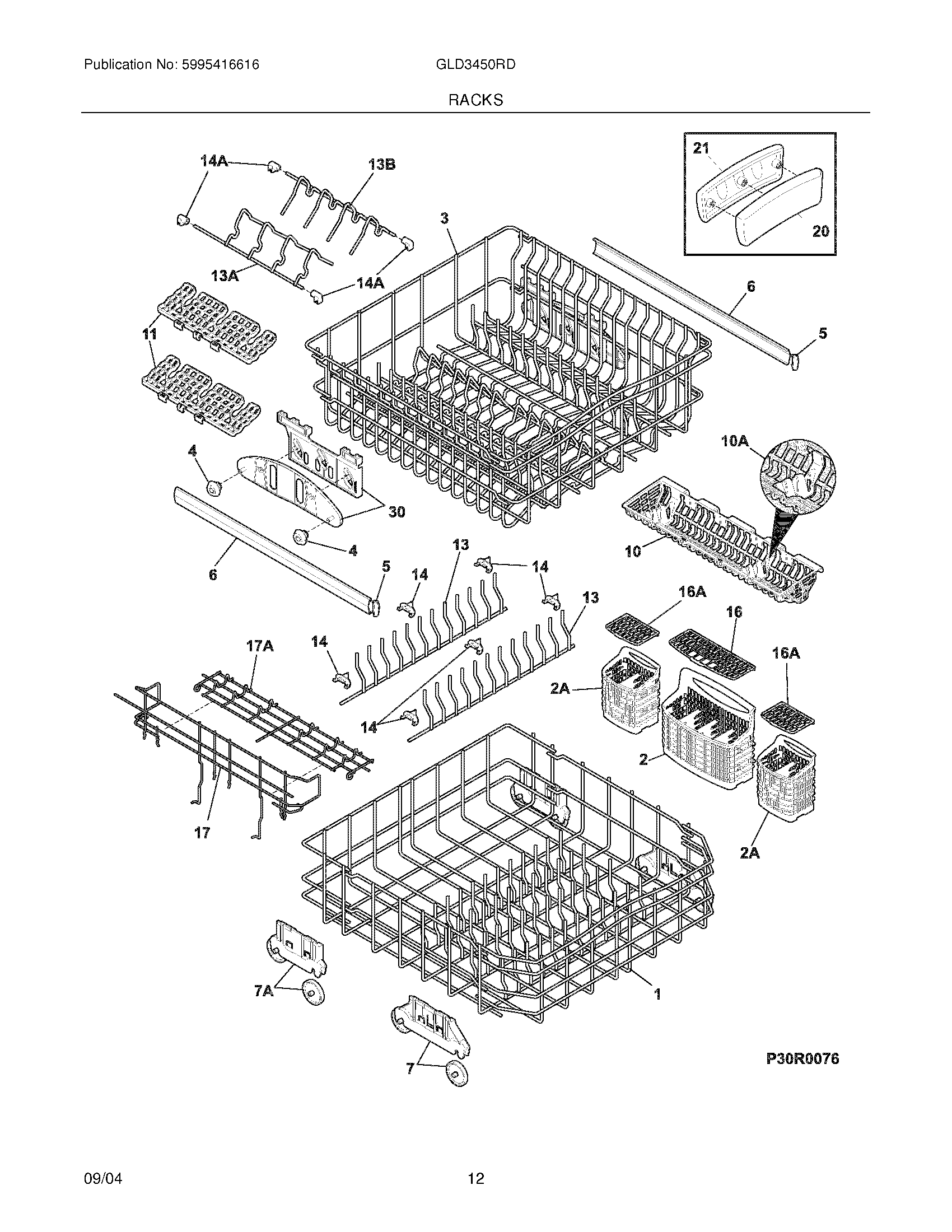

GLD3450RDB0 13 – RACKS

GLD3450RDB0 13 – RACKS

Written by

in

GLD3450RDB0 13 – RACKS

Products

PositionProduct
15304532969 Frigidaire Rack Assembly
25304535382 Frigidaire Basket Assembly
35304535250 Frigidaire Dishwasher Upper Rack Assembly
45304535381 Frigidaire Dishwasher Dishrack Wheel and Bushing
55304506510 Frigidaire Dishrack Slide Rail Stop/Endcap
6UPPER RACK SLIDE
7AWCI 154482202
7154584002 Frigidaire Dishwasher Assembly-Roller
10AWCI 154452502
10WCI 154488802
11WCI 154453002
13A154740304 Frigidaire Dishwasher Fold-Down Tine Row Fence
13WCI 154481303
14AWCI 154242102
14154428402 Frigidaire Bracket
14A5304506508 Frigidaire Bracket Support
16AWCI 154424303
16WCI 154424203
17WCI 154439303
17AWCI 154439403
20WCI 154496202
21WCI 154496302
30A01986801 Frigidaire Upper Rack Assembly
