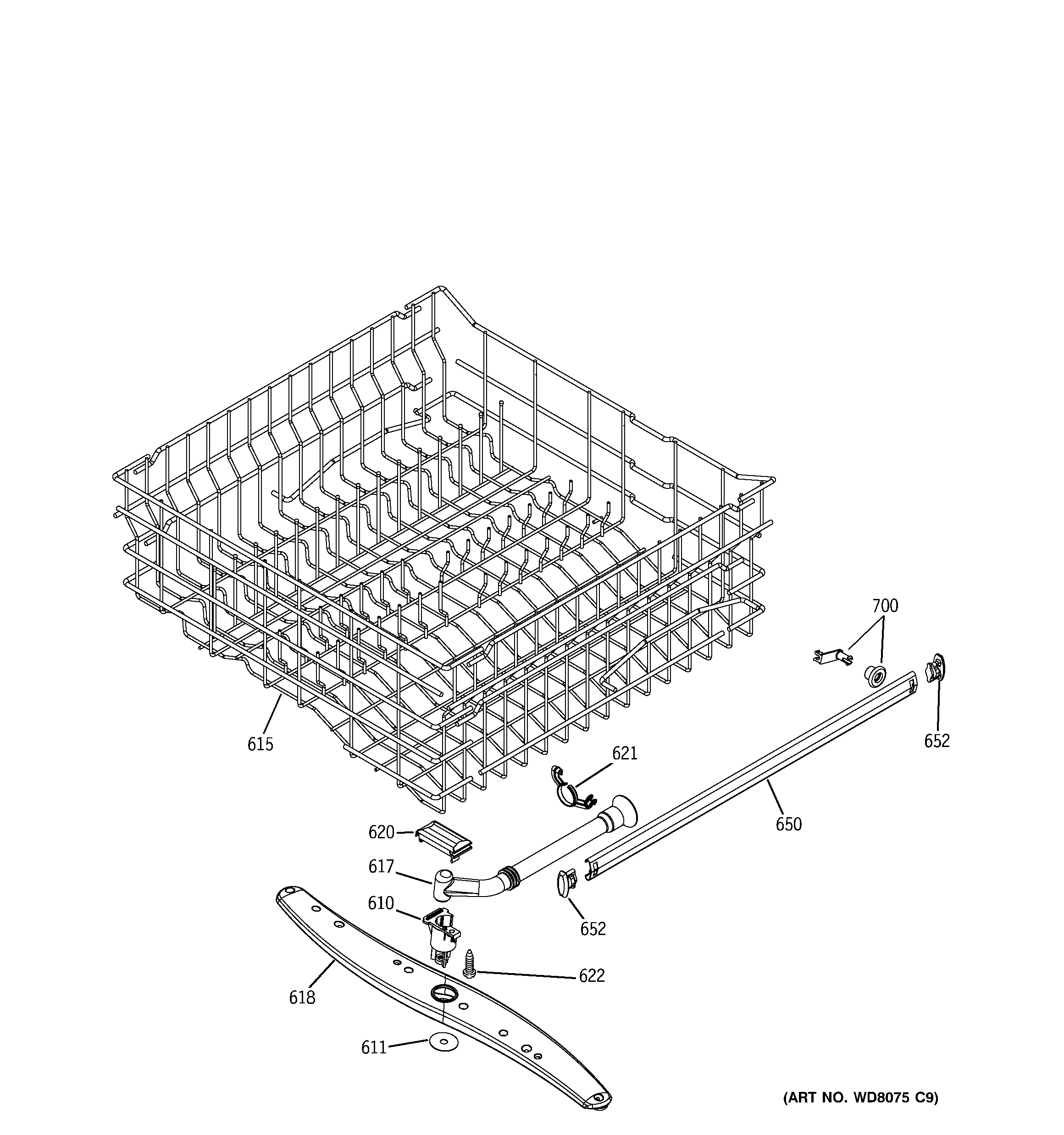

GLD4209L15SS UPPER RACK ASSEMBLY

GLD4209L15SS UPPER RACK ASSEMBLY

Written by

in

GLD4209L15SS UPPER RACK ASSEMBLY

Products

PositionProduct
610GEN WD12X10199
611WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
615WD35X10381 GE Dishwasher Upper Rack Tiered Kit
617GEN WD12X10052
618WD22X10046 GE Dishwasher Middle Spray Arm Assembly
620GEN WD12X10198
621GEN WD12X10197
622WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
650WD30X98 GE Dishwasher Slide Assembly
652WD12X10304 GE Dishwasher Rack Slide Endcap (White)
700GEN WD12X10202
