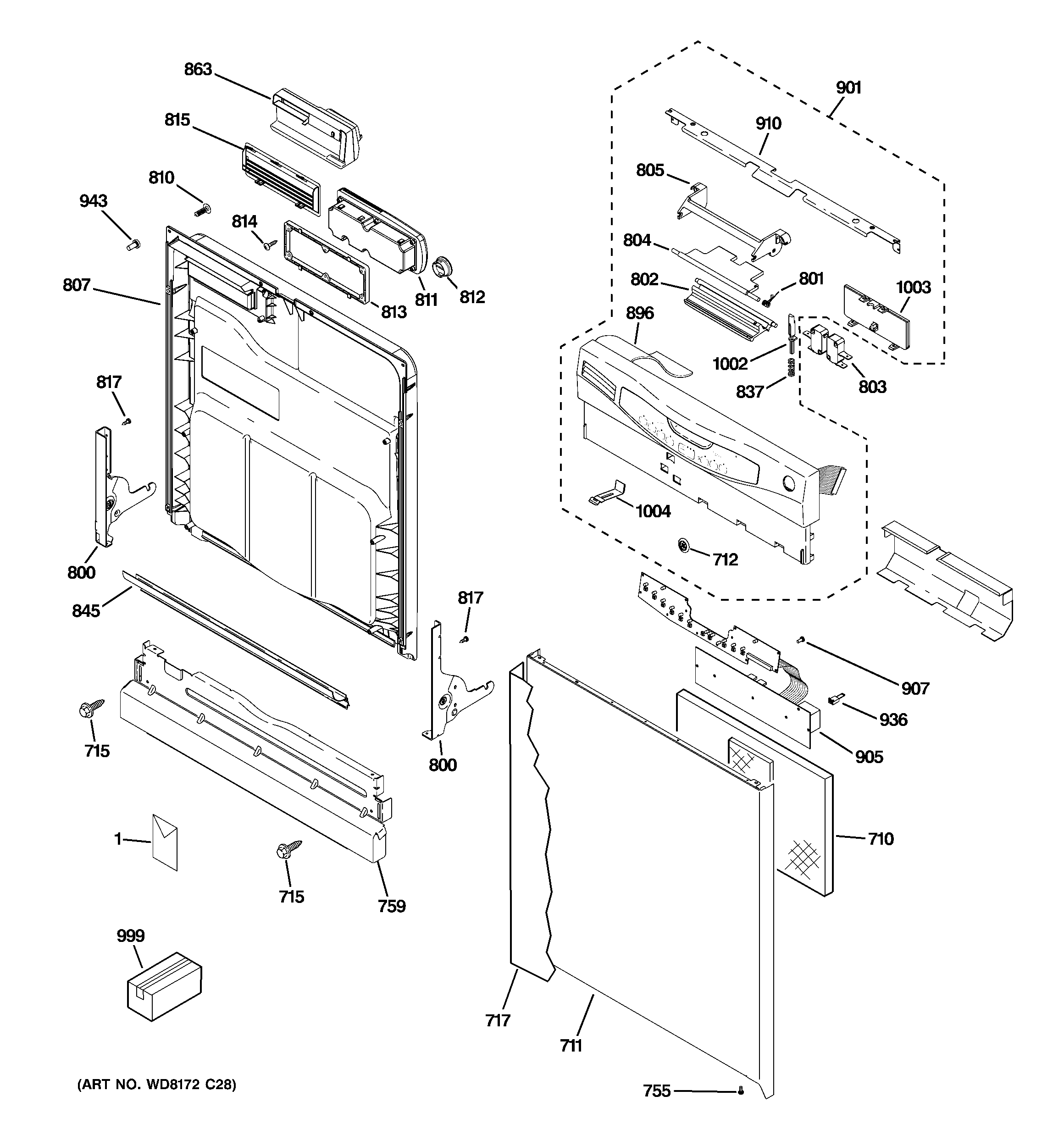

GLD4408R10BB ESCUTCHEON & DOOR ASSEMBLY

GLD4408R10BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GLD4408R10BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30258
1GEN 49-55064-1
1GEN 31-30625
710GEN WD01X10344
711GEN WD31X10082
711GEN WD34X11096
712GEN WD34X11692
715WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
717GEN WD27X10210
717GEN WD27X10209
755WD2X430 GE Dishwasher Screw
759GEN WD27X10219
759GEN WD27X10220
800GEN WD14X10025
800GEN WD14X10024
801WR02X10585 SPRING RECES
802GEN WD13X10010
802GEN WD13X10007
803WD21X10224 GE Dishwasher Interlock Switch
804WD13X10045 GE Dishwasher Handle Actuator
805GEN WD13X10009
807GEN WD31X10083
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10206 GE Dishwasher Rinse Cap Assembly
813GEN WD12X10146
814GEN WD02X10104
815GEN WD12X10192
817WD02X10162 GE Dishwasher 8-32 HXP 1/4" Screw
837WD03X10026 GE Dishwasher Spring Plunger
845WD08X10059 GE Dishwasher Seal
863GEN WD12X10288
896GEN WD12X10203
901GEN WD34X11679
901GEN WD34X11693
905WD21X10408 GE Dishwasher Kit Main & Tactile Board
907WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
910GEN WD34X11691
936GEN WD21X10398
943WZ5X219D GE Screw Package
999KIT-PANEL SUPPORT CLIP
1002GEN WD12X10321
1003GEN WD12X10323
1004GEN WD01X10296
