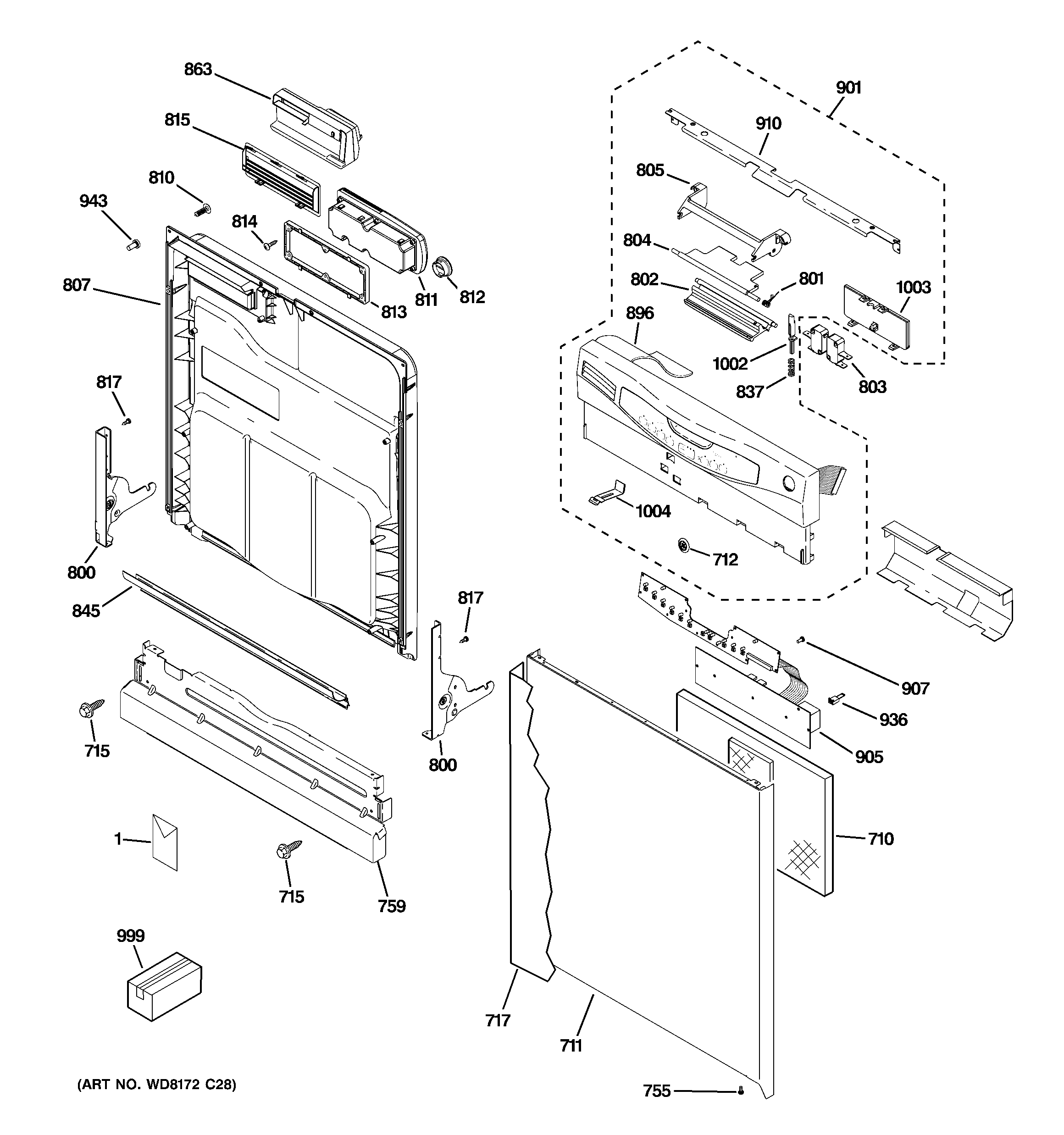

GLD4458R00CS ESCUTCHEON & DOOR ASSEMBLY

GLD4458R00CS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GLD4458R00CS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30278
1GEN 31-30611
1GEN 49-55064-1
710GEN WD01X10344
711PANEL FRONT
712GEN WD34X11692
715WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
717GEN WD27X10263
755WD2X430 GE Dishwasher Screw
759GEN WD27X10219
800GEN WD14X10025
800GEN WD14X10024
801WR02X10585 SPRING RECES
802GEN WD13X10007
803WD21X10224 GE Dishwasher Interlock Switch
804WD13X10045 GE Dishwasher Handle Actuator
805GEN WD13X10009
807GEN WD31X10083
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10206 GE Dishwasher Rinse Cap Assembly
813GEN WD12X10146
814GEN WD02X10104
815GEN WD12X10192
817WD02X10162 GE Dishwasher 8-32 HXP 1/4" Screw
837WD03X10026 GE Dishwasher Spring Plunger
845WD08X10059 GE Dishwasher Seal
863GEN WD12X10288
896GEN WD12X10203
901ESCUTCHEON ASM PS BB
905WD21X10395 GE Dishwasher Main Board
905WD21X10378 GE Dishwasher Main Control and Tactile Board Kit
907WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
910GEN WD34X11691
943WZ5X219D GE Screw Package
999KIT-PANEL SUPPORT CLIP
1002GEN WD12X10321
1003GEN WD12X10323
1004GEN WD01X10296
