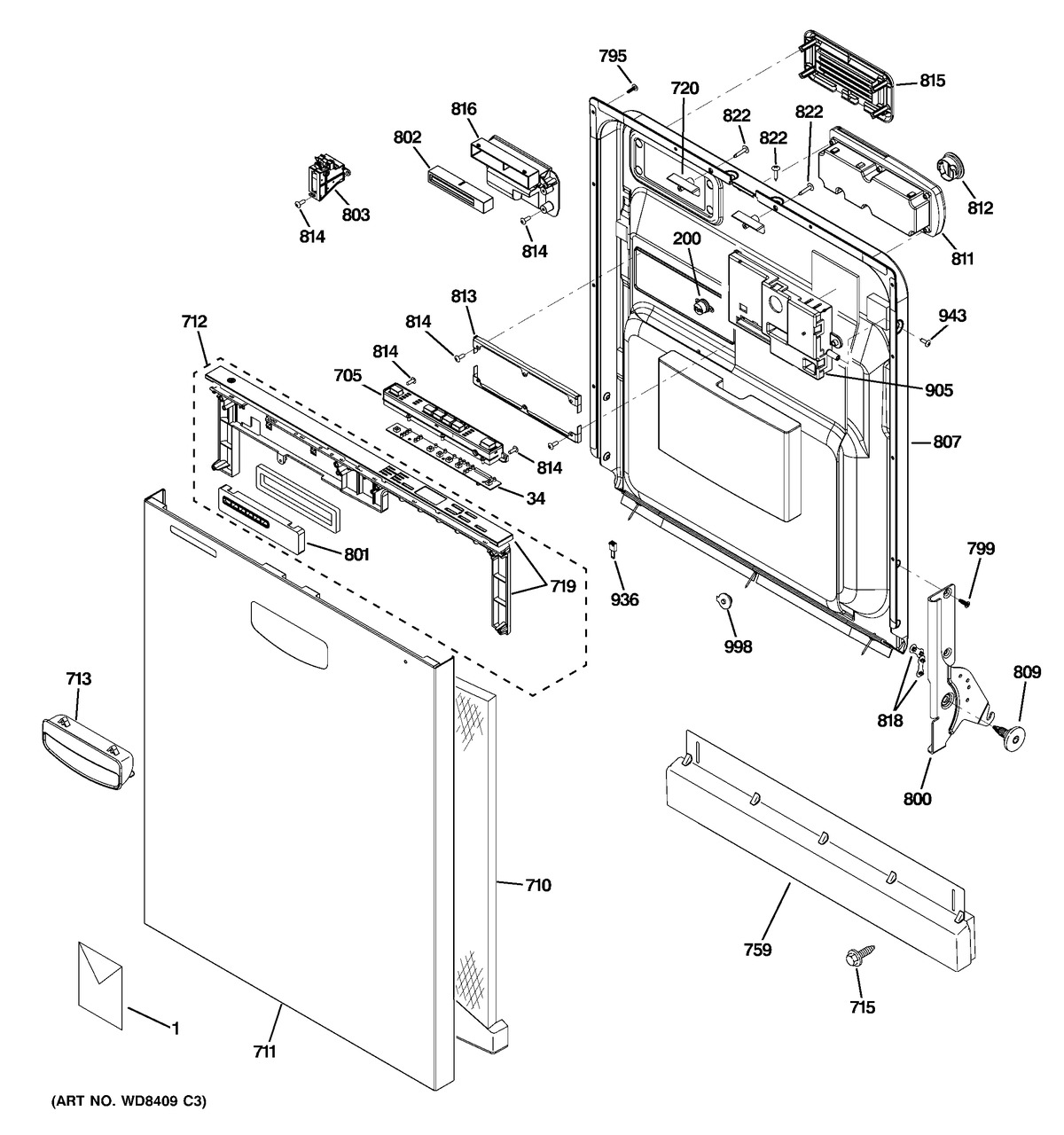

GLD5706V00WW ESCUTCHEON & DOOR ASSEMBLY

GLD5706V00WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GLD5706V00WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30634
1GEN 49-55077
1GEN 31-30283
34CONTROL TACTILE ASM KIT
200WD01X10567 GE Dishwasher Thermostat
705GEN WD01X10516
705GEN WD01X10533
705BUTTON ASM SILICON GE WW
710GEN WD01X10514
711GEN WD27X10300
711GEN WD27X10298
711GEN WD27X10302
712GEN WD27X10310
712GEN WD27X10312
712CONSOLE ASM KIT WW
713GEN WD09X10075
713GEN WD09X10076
713GEN WD09X10079
715WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
719WD27X10305 GE Console Assembly
719GEN WD27X10304
719GEN WD27X10306
720GEN WD01X10523
759GEN WD27X10221
759GEN WD27X10219
759GEN WD27X10220
795WD02X10093 GE Dishwasher Screw 10-18 X 5/8
799WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
800GEN WD14X10025
800GEN WD14X10024
801GEN WD01X10531
801GEN WD01X10526
801GEN WD01X10518
802GEN WD01X10545
803GEN WD13X10061
807GEN WD31X10128
809WD02X10162 GE Dishwasher 8-32 HXP 1/4" Screw
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813GEN WD12X10146
814GEN WD02X10104
815GEN WD12X10368
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822WD2X444 GE Dishwasher Mechanical Screw
905WD21X10505 GE Dishwasher Control Tactile Assembly Kit
936GEN WD21X10468
943WZ5X219D GE Screw Package
998LENS ASM
