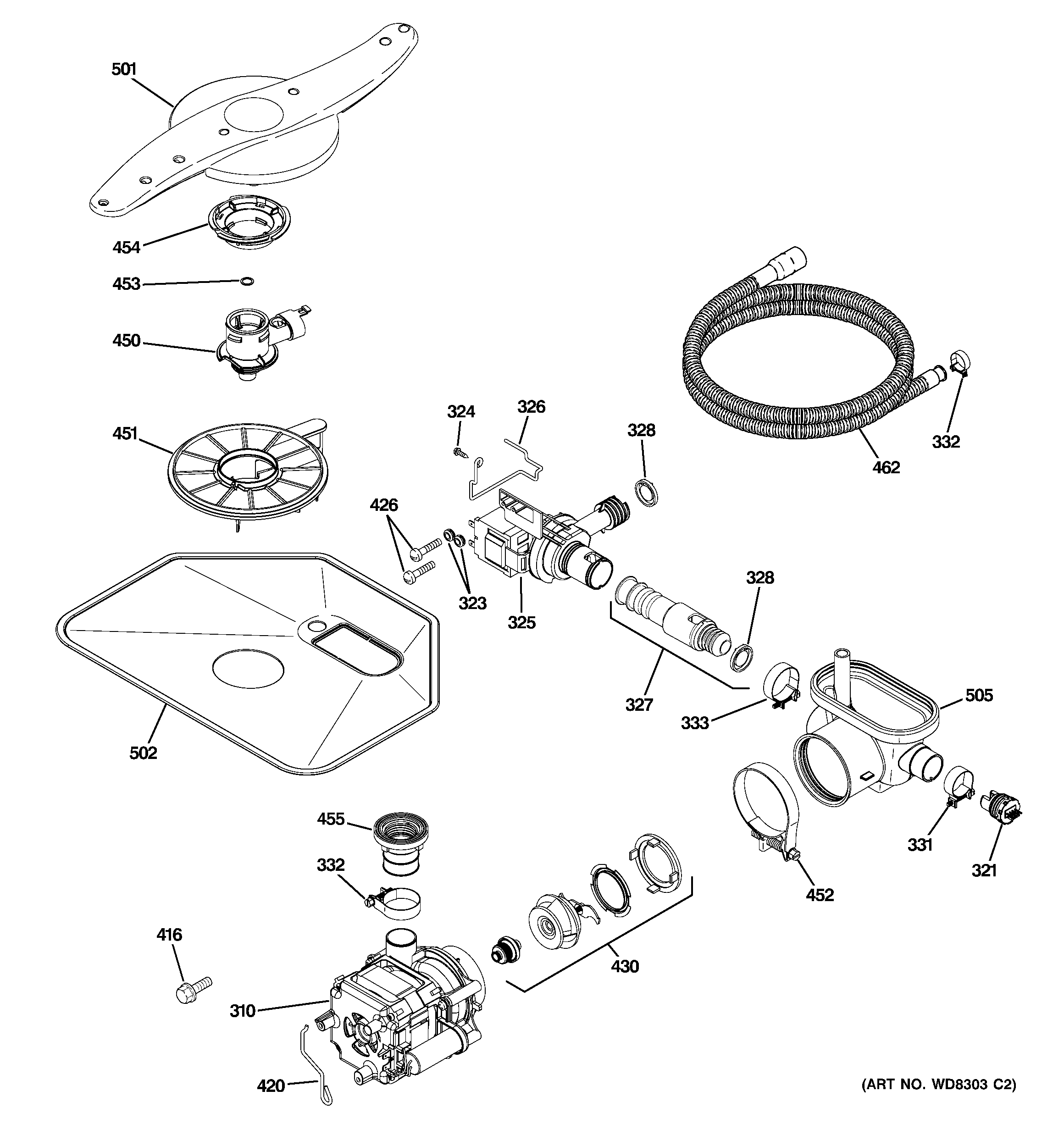

GLD5800P10BB MOTOR-PUMP MECHANISM

GLD5800P10BB MOTOR-PUMP MECHANISM

Written by

in

GLD5800P10BB MOTOR-PUMP MECHANISM

Products

PositionProduct
310WD26X10053 GE Dishwasher Pump and Motor Assembly
321GEN WD21X10272
323WD01X10269 GE Dishwasher Grommet
324WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
325WD34X20532 GE Dishwasher Kit Door Assembly Outer
325WD26X22719 GE Dishwasher Drain Pump Kit
326GEN WD01X10292
327PUMP DRAIN ASM
328WD01X10406 GE Dishwasher Valve Flapper Dual Pump
331WD01X10104 GE Dishwasher Hose Clamp
332WD01X10105 GE Dishwasher Clamp
333WD01X10103 GE Dishwasher Clamp
416WD2X444 GE Dishwasher Mechanical Screw
420GEN WD01X10297
426WD02X10093 GE Dishwasher Screw 10-18 X 5/8
430WD19X10039 GE Dishwasher Impeller Assembly Kit
430WD19X10038 GE Dishwasher Impeller Kit
450GEN WD18X10009
451WD12X10109 GE Dishwasher Fine Filter Assembly
452WD1X1392 GE Dishwasher Sump Clamp
453GEN WD01X10107
454WD12X10061 GE Arm Retainer Nut
455WD18X10010 GE Dishwasher Pump Connector Assembly
462WD24X10045 GE Dishwasher Drain Tube Assembly
501WD22X10062 GE Dishwasher Arm Spray Low Assembly
502GEN WD22X10072
505WD18X10008 GE Dishwasher Sump Inlet
