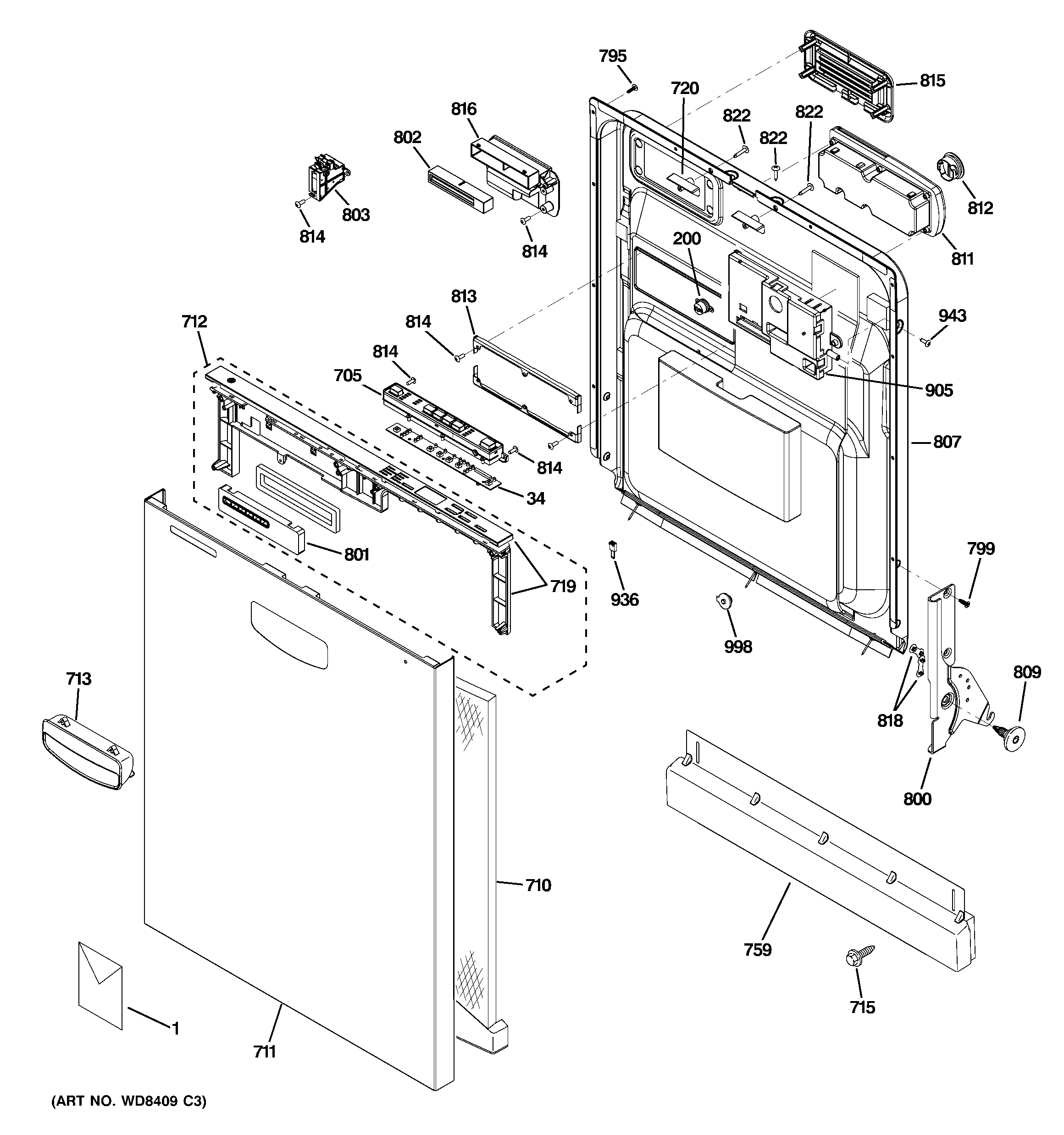

GLD5808V00WW ESCUTCHEON & DOOR ASSEMBLY

GLD5808V00WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GLD5808V00WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30634
1GEN 31-30283
1GEN 49-55077
200WD01X10567 GE Dishwasher Thermostat
705GEN WD01X10516
705BUTTON ASM SILICON GE WW
710GEN WD01X10514
711GEN WD27X10303
711GEN WD27X10297
712GEN WD27X10313
712GEN WD27X10314
713GEN WD09X10068
713GEN WD09X10069
715WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
719GEN WD27X10467
719GEN WD27X10299
720GEN WD01X10523
759GEN WD27X10220
759GEN WD27X10219
795WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
799WD02X10162 GE Dishwasher 8-32 HXP 1/4" Screw
800GEN WD14X10024
800GEN WD14X10025
801GEN WD01X10526
801GEN WD01X10518
802GEN WD01X10545
803GEN WD13X10061
807GEN WD31X10128
809WD02X10166 GE Dishwasher 8-18 AB HW 1/2" Stainless Steel Screw
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10122 GE Dishwasher Dispenser Cap
813GEN WD12X10146
814GEN WD02X10104
815GEN WD12X10368
818WD12X10313 GE Dishwasher Hinge Arm Bearing
822WD2X444 GE Dishwasher Mechanical Screw
905CONTROL TACTILE ASM KIT
936WD21X10464 GE Dishwasher Model Selector Plug Assembly
943WZ5X219D GE Screw Package
998GEN WD01X10561
998GEN WD01X10560
