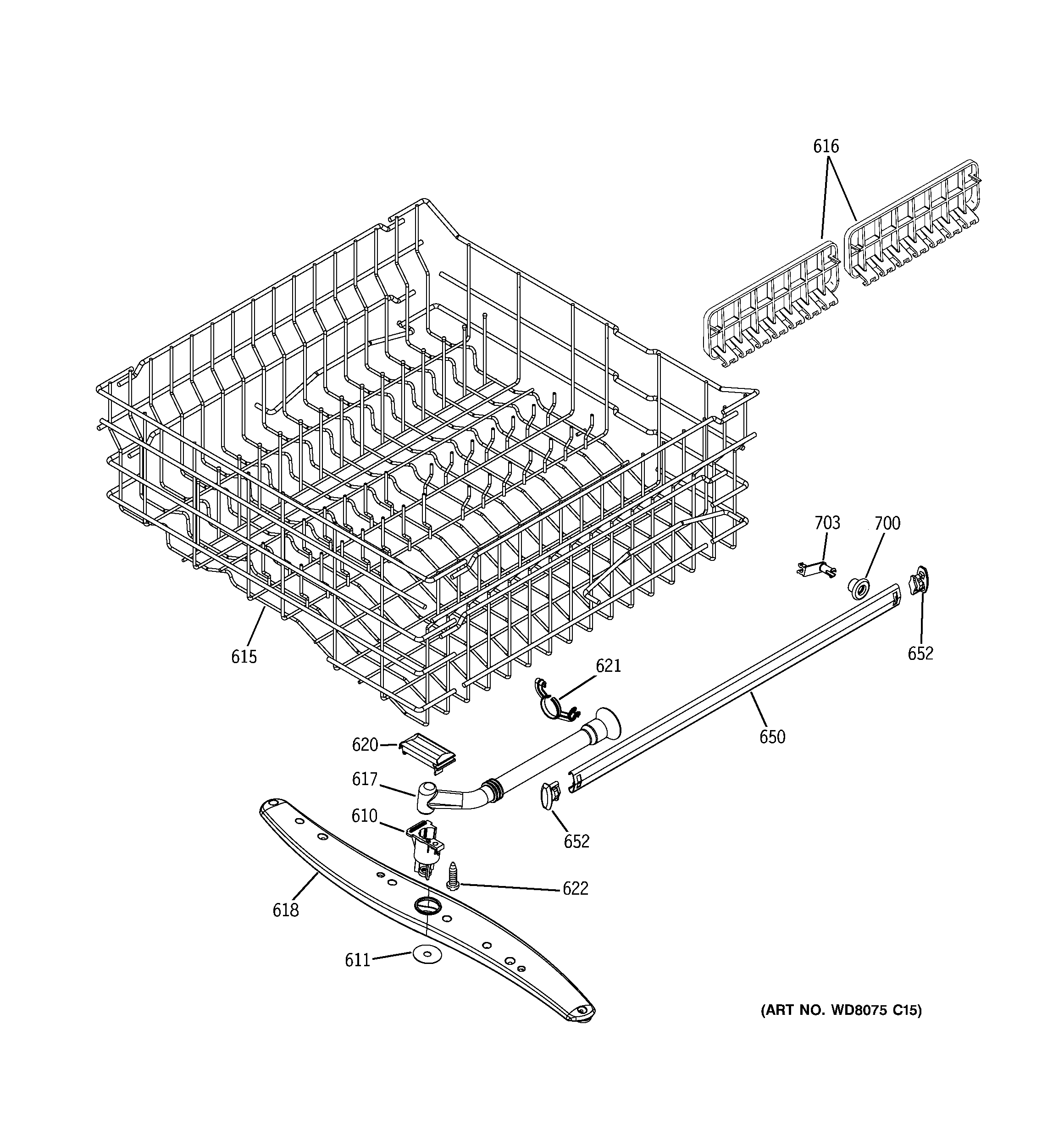

GLD6200L15WW UPPER RACK ASSEMBLY

GLD6200L15WW UPPER RACK ASSEMBLY

Written by

in

GLD6200L15WW UPPER RACK ASSEMBLY

Products

PositionProduct
610WD12X10352 GE Support Spray Arm
611WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
615WD28X10399 GE Dishwasher Upper Rack
616GEN WD28X10176
617GEN WD12X10052
618WD22X10046 GE Dishwasher Middle Spray Arm Assembly
620WD21X10391 GE Breakwater Left Switch
621GEN WD12X10054
622WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
650WD30X98 GE Dishwasher Slide Assembly
652WD12X10304 GE Dishwasher Rack Slide Endcap (White)
703WD35X20994 GE Dishwasher Upper Dish Rack Kit
