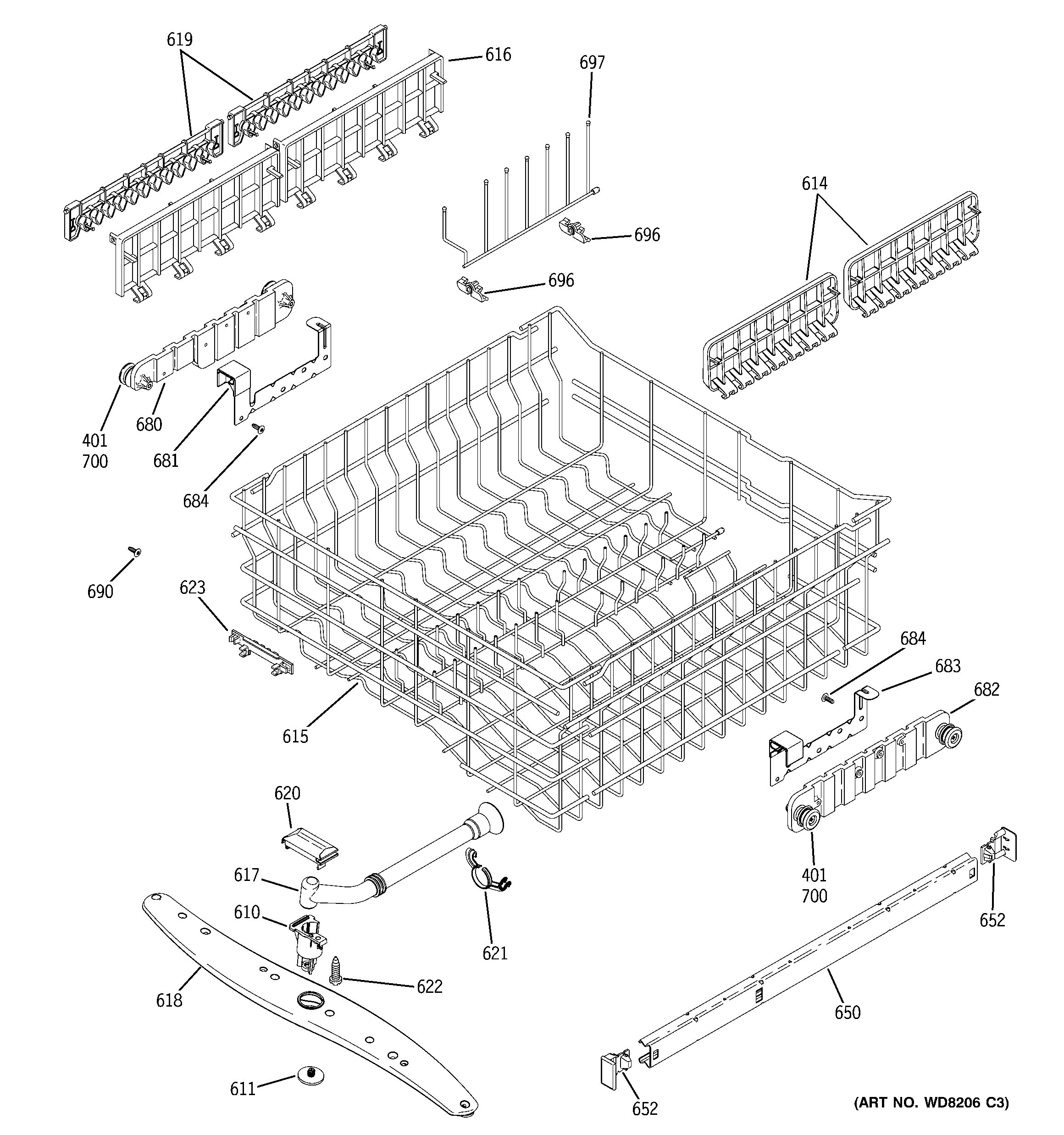

GLD6904R30BB UPPER RACK ASSEMBLY

GLD6904R30BB UPPER RACK ASSEMBLY

Written by

in

GLD6904R30BB UPPER RACK ASSEMBLY

Products

PositionProduct
401WD3X767 GE Dishwasher Washer
610WD12X10353 GE Dishwasher Spray Arm Hub
611WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
615GEN WD28X10251
616WD28X10104 GE Dishwasher Multi-Purpose Shelf
616WD28X302 GE Dishwasher Cup Shelf
617WD12X10145 GE Dishwasher Mid Spray Conduit
618GEN WD22X10067
619WD28X10105 GE Dishwasher Stemware Gripper
620WD12X10405 GE Dishwasher Mid Spray Arm Bracket
621WD12X10114 GE Dishwasher Conduit Carrier Mid
622WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
623GEN WD12X10296
650WD30X98 GE Dishwasher Slide Assembly
652WD12X10304 GE Dishwasher Rack Slide Endcap (White)
680GEN WD12X10334
681GEN WD01X10345
682GEN WD12X10144
683GEN WD01X10346
684WD02X10111 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/2
690GEN WD02X10113
696WD12X10118 GE Dishwasher Retainer Comb
697GEN WD28X10249
700WD35X20994 GE Dishwasher Upper Dish Rack Kit
