GLD7400R10CC BODY PARTS

GLD7400R10CC BODY PARTS

Written by

in

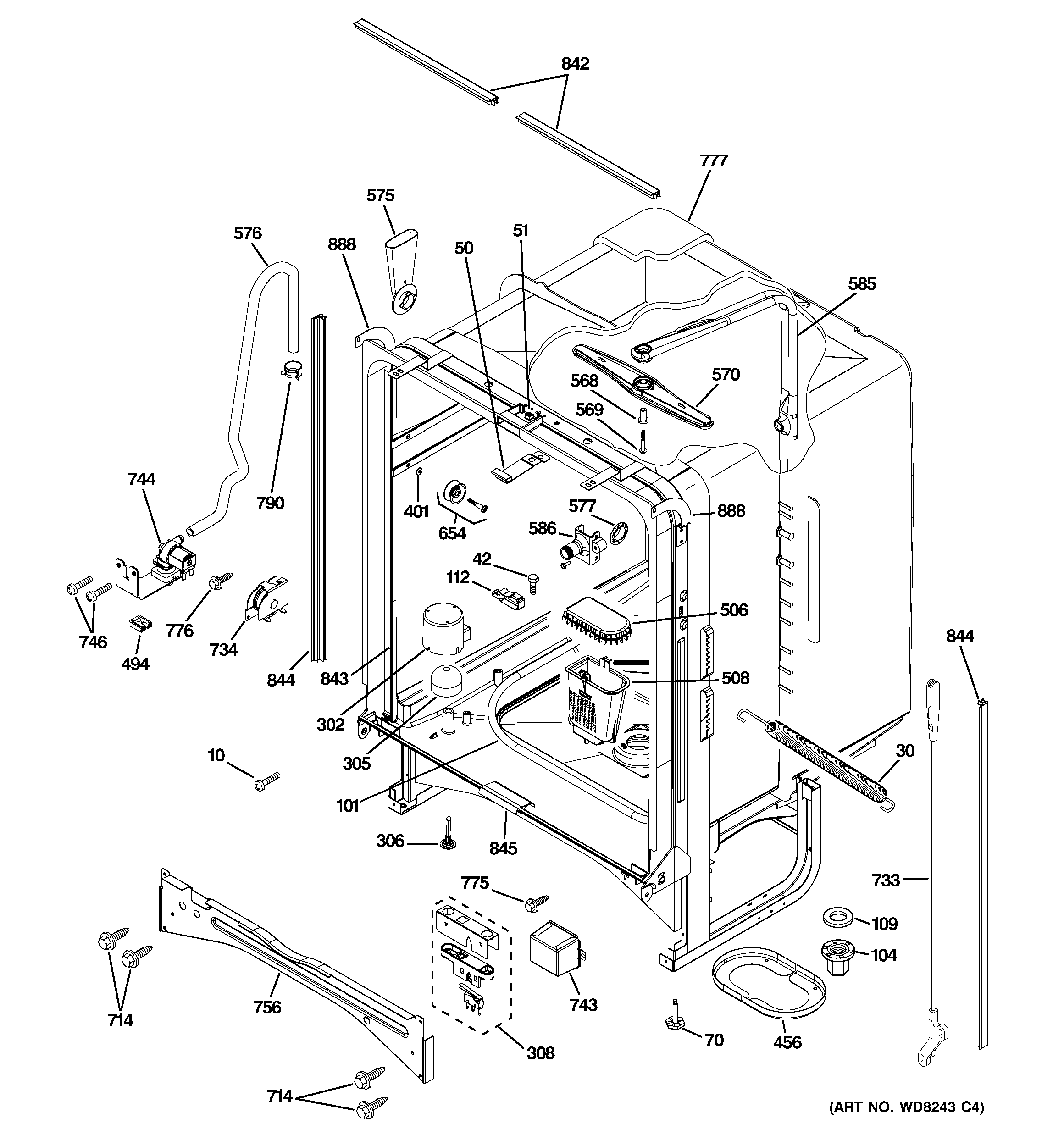

GLD7400R10CC BODY PARTS

Products

PositionProduct
10WR01X10065 GE Screw
30GEN WD03X10012
42SCREW #8-3/4 L HX HD SS
50GEN WD13X10019
51WD02X10066 GE Dishwasher Screw 10-24 x 1/2 TT TRR S
70WD2X320 GE Dishwasher Leveling Leg
101GEN WD05X10010
104GEN WD01X10097
109GEN WD01X10094
112GEN WD01X10283
302WD12X10051 GE Dishwasher Float Dome C02
305WD12X10047 GE Dishwasher Float
306WD12X10048 GE Dishwasher Float Stem Assembly
401WD3X767 GE Dishwasher Washer
456GEN WD01X10106
494WD21X10355 GE Dishwasher Water Valve Housing Special
506WD12X10400 GE Dishwasher Inlet Cover
508WD22X10077 GE Dishwasher Sump and Cover Filter Assembly
568WD01X10410 GE Dishwasher Spray Arm Bearing Assembly
569GEN WD02X10068
570GEN WD22X10068
575WD12X22722 GE Dishwasher Fill Funnel
576GEN WD24X10026
577WD08X10020 GE Dishwasher Fill Funnel Gasket
585GEN WD12X10057
586GEN WD12X10059
654WD12X332 GE Dishwasher Rack Roller
714WD02X10160 GE Screw
733GEN WD01X10348
734GEN WD16X10009
743WD12X448 GE Dishwasher Junction Box
744WD15X10014 GE Dishwasher Water Inlet Fill Valve
746WD2X248 GE Dishwasher Screw
756GEN WD27X10233
775WD2X5166 GE Dishwasher Screw
776WD02X10159 GE Dishwasher Screw 10-32 C HX 7/16
777WD01X10550 GE Dishwasher Insulation Tub Blanket
790WH1X2036 GE UNIX Clamp
842GEN WD08X10023
842GEN WD08X10021
842GEN WD08X10025
843GASKET TUB
844GEN WD08X10022
844GEN WD08X10026
844GEN WD08X10024
845WD08X10075 GE Dishwasher Bottom Door Gasket Seal
888WX13X10001 GE Countertops Bracket Kit Non-Wood
