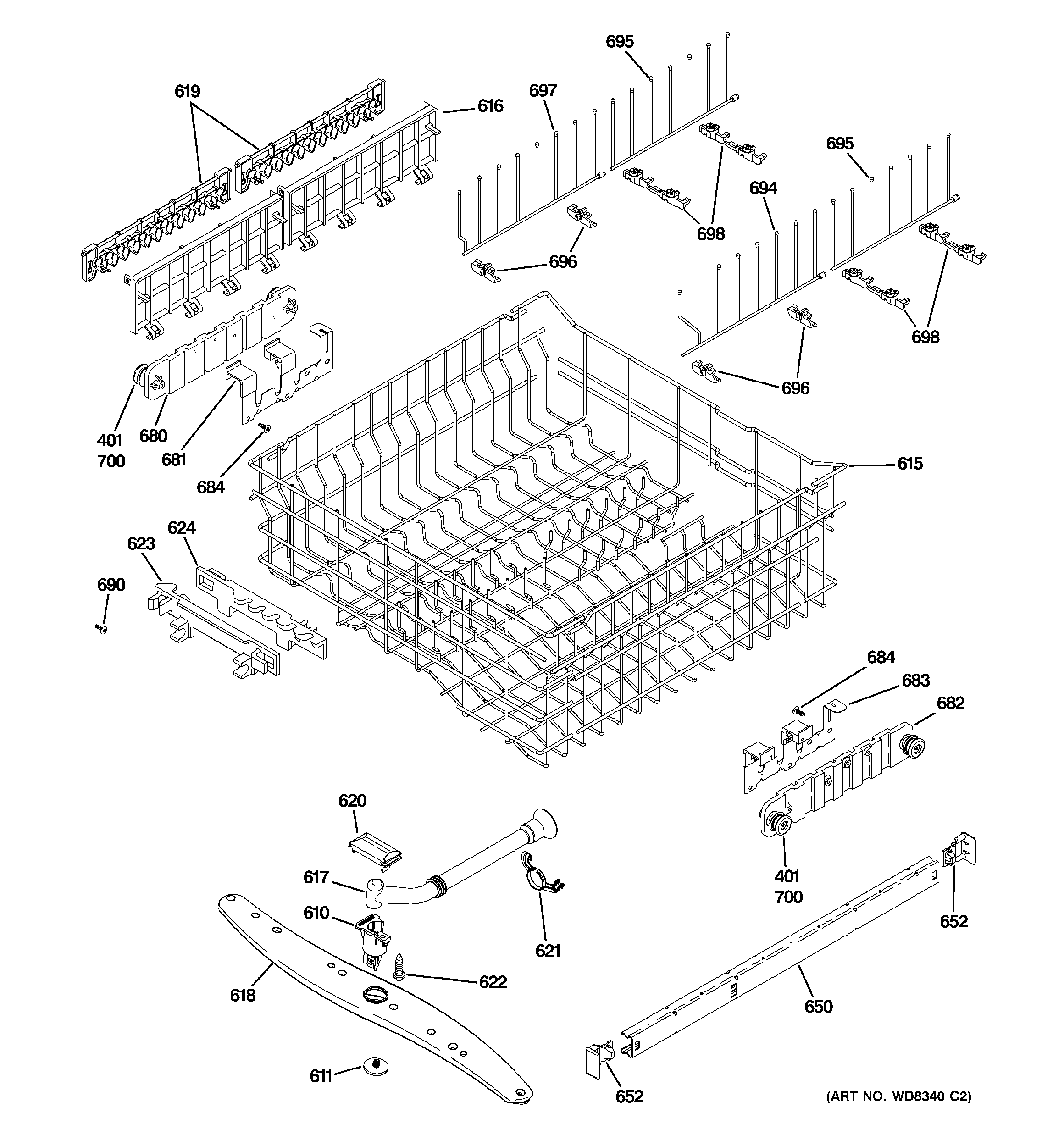

GLD7400R10WW UPPER RACK ASSSEMBLY

GLD7400R10WW UPPER RACK ASSSEMBLY

Written by

in

GLD7400R10WW UPPER RACK ASSSEMBLY

Products

PositionProduct
401WD3X767 GE Dishwasher Washer
610WD12X10353 GE Dishwasher Spray Arm Hub
611WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
615GEN WD28X10254
616WD28X10104 GE Dishwasher Multi-Purpose Shelf
617WD12X10145 GE Dishwasher Mid Spray Conduit
618GEN WD22X10067
619WD28X10105 GE Dishwasher Stemware Gripper
620WD12X10405 GE Dishwasher Mid Spray Arm Bracket
621WD12X10114 GE Dishwasher Conduit Carrier Mid
622WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
623GEN WD12X10296
624GEN WD12X10297
650WD30X98 GE Dishwasher Slide Assembly
652WD12X10304 GE Dishwasher Rack Slide Endcap (White)
680GEN WD12X10294
681GEN WD01X10345
682GEN WD12X10295
683GEN WD01X10346
684WD02X10111 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/2
690GEN WD02X10113
694GEN WD28X10256
695GEN WD28X10255
696WD12X10116 GE Dishwasher Retainer Comb
697GEN WD28X10249
698WD12X10118 GE Dishwasher Retainer Comb
700WD35X20994 GE Dishwasher Upper Dish Rack Kit
