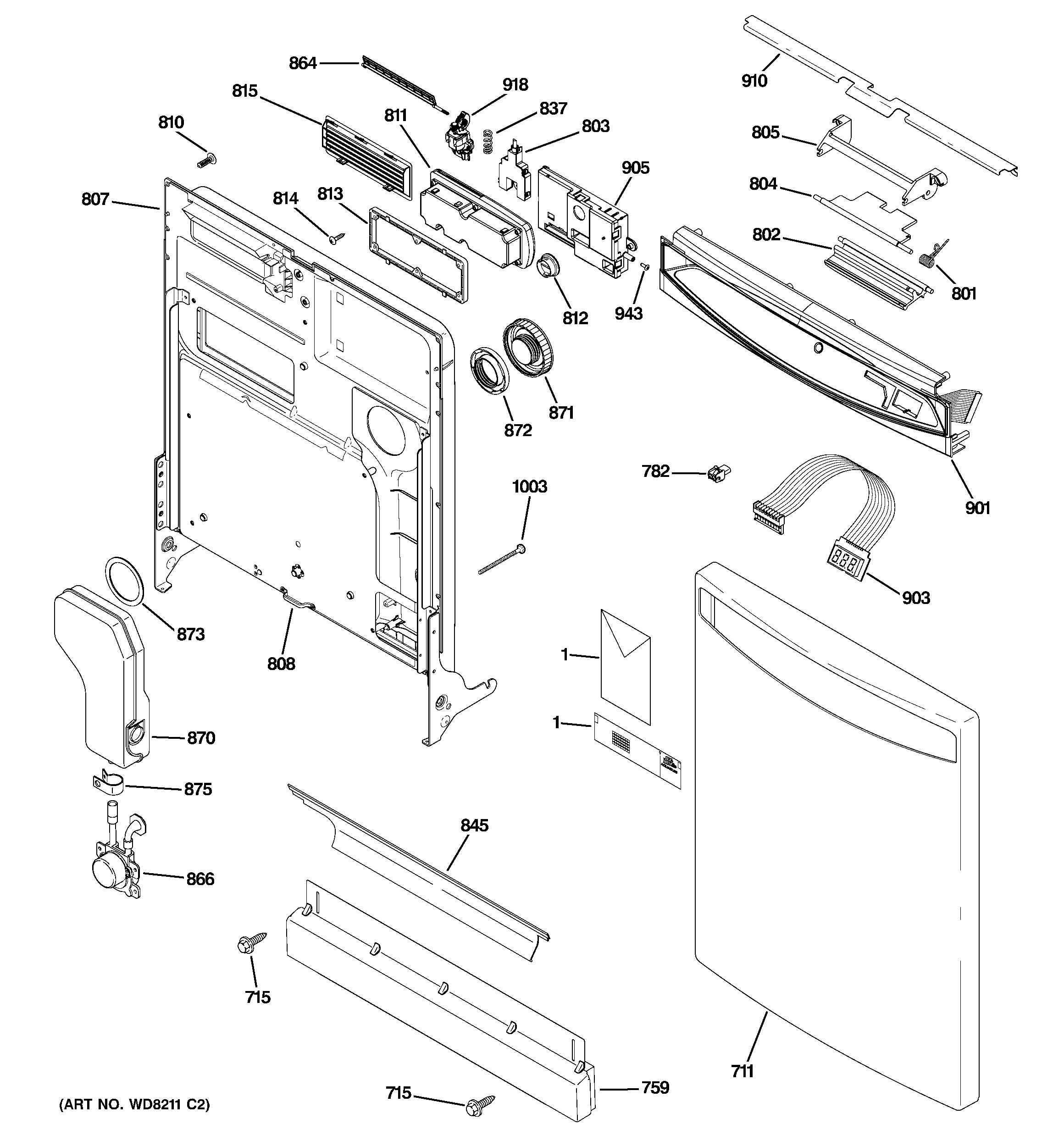

GLD7400R30BB ESCUTCHEON & DOOR ASSEMBLY

GLD7400R30BB ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GLD7400R30BB ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30258
1GEN 31-30609-2
1GEN 49-55064-1
1WD01X10295 GE Dishwasher Hardness Tester Strip
711GEN WD31X10063
711GEN WD31X10061
711GEN WD31X10064
715WD02X10147 GE Dishwasher Screw 8-18 B 1HW 1/2 SN WH
715WD02X10085 GE Dishwasher Screw 8-18 B 1HW 1/2 S N
715GEN WD02X10087
759GEN WD27X10264
759GEN WD27X10259
759GEN WD27X10260
801WR02X10585 SPRING RECES
802GEN WD13X10011
802GEN WD13X10010
802GEN WD13X10007
803GEN WD21X10169
804WD13X10045 GE Dishwasher Handle Actuator
805GEN WD13X10009
807GEN WD31X10111
808GEN WD01X10110
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
811WD12X10163 GE Dishwasher Detergent and Rinse Aid Dispenser
812WD12X10206 GE Dishwasher Rinse Cap Assembly
813GEN WD12X10146
814GEN WD02X10104
815GEN WD12X10045
837WD03X10026 GE Dishwasher Spring Plunger
845WD08X10075 GE Dishwasher Bottom Door Gasket Seal
864WD12X10067 GE Dishwasher Flapper Vent
864GEN WD12X10068
864WD12X10044 GE Dishwasher Flapper Vent
866GEN WD12X10251
870GEN WD35X10067
871WD12X10282 GE Dishwasher Cap Assembly
872WD02X25438 GE Dishwasher Lock Nut Assembly
873GEN WD08X10060
875GEN WD01X10424
901ESCUTCHEON BOWED ASM CC
901ESCUTCHEON BOWED ASM WW
901ESCUTCHEON BOWED ASM BB
903GEN WD21X10260
905GEN WD21X10405
910GEN WD34X11623
918WD21X10172 GE Dishwasher Vent Driver
943WZ5X219D GE Screw Package
1003GEN WB01T10019
