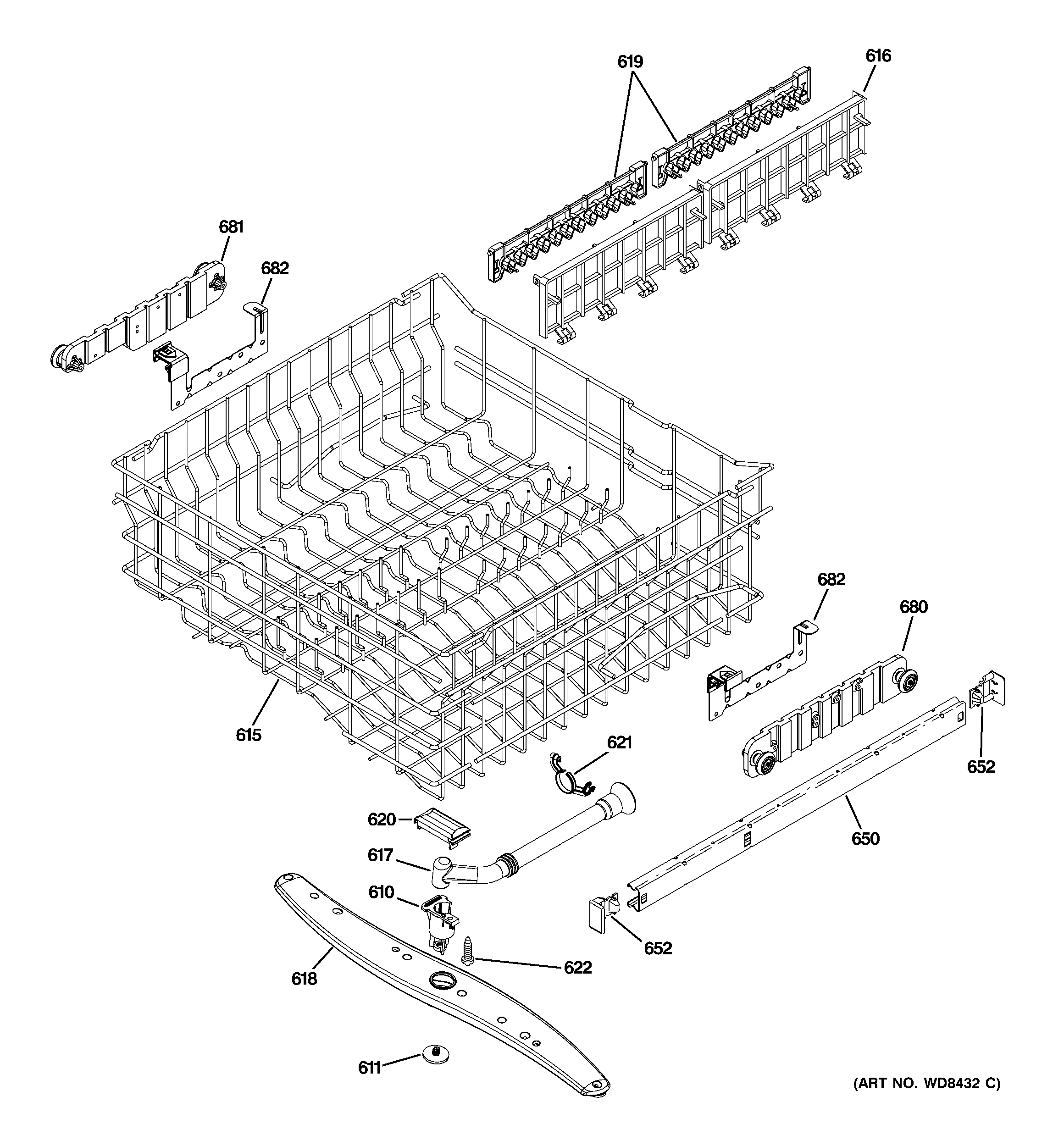

GLD7768V00SS UPPER RACK ASSEMBLY

GLD7768V00SS UPPER RACK ASSEMBLY

Written by

in

GLD7768V00SS UPPER RACK ASSEMBLY

Products

PositionProduct
610WD12X10353 GE Dishwasher Spray Arm Hub
611WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
615GEN WD28X10301
616WD28X10104 GE Dishwasher Multi-Purpose Shelf
617WD12X10145 GE Dishwasher Mid Spray Conduit
618WD22X10066 GE Dishwasher Arm Spray Mid Assembly
619WD28X10105 GE Dishwasher Stemware Gripper
620WD12X10405 GE Dishwasher Mid Spray Arm Bracket
621WD12X10114 GE Dishwasher Conduit Carrier Mid
622WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
650GEN WD30X10040
652RACK SLIDE END CAP
680GEN WD12X10367
681GEN WD12X10366
682WD02X10151 GE Dishwasher Screw 10-16 AB 43WHEX 5/8
682GEN WD01X10227
682GEN WD01X10228
