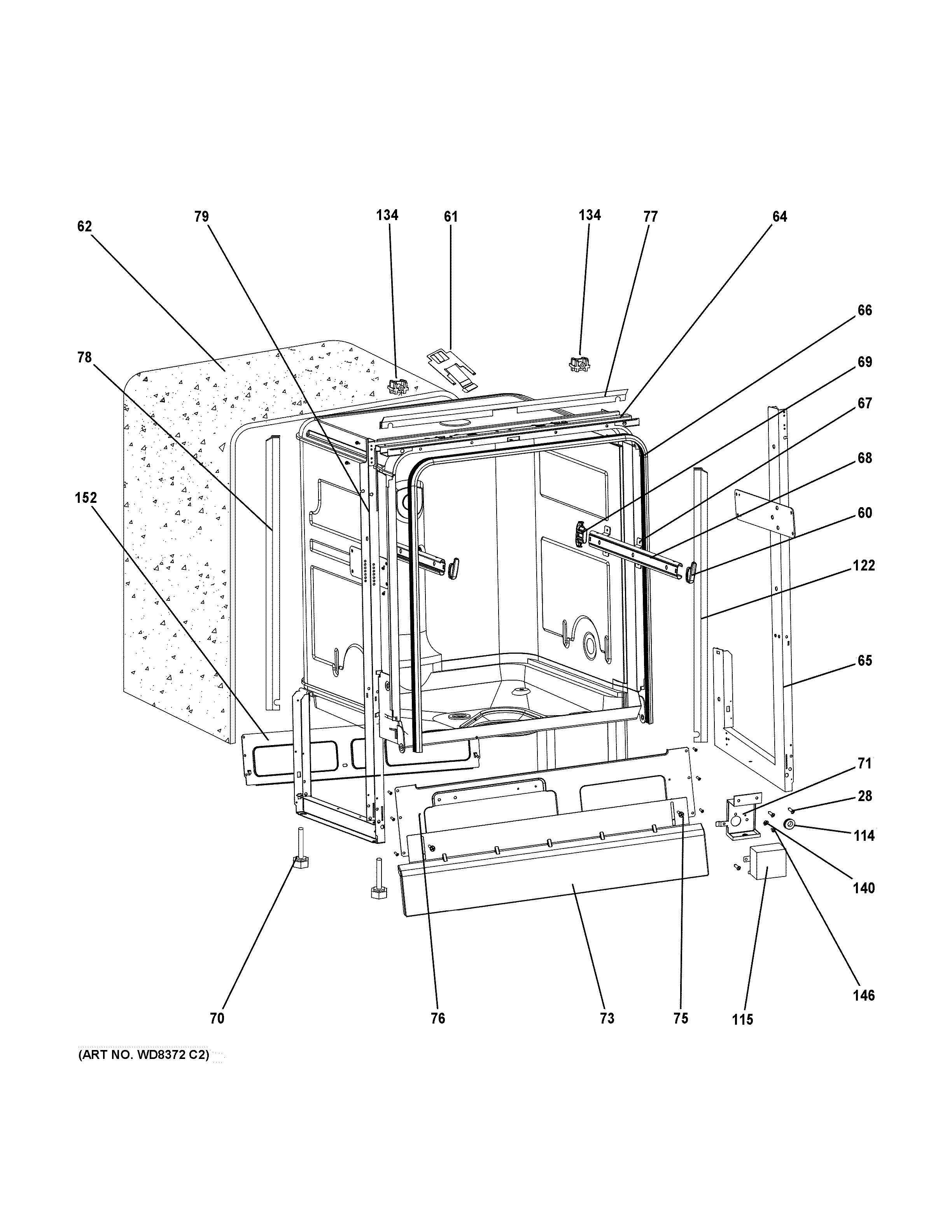

GLDA690F00WW BODY PARTS

GLDA690F00WW BODY PARTS

Written by

in

GLDA690F00WW BODY PARTS

Products

PositionProduct
28WD02X10120 GE Dishwasher Screw
60GEN WD12X10314
61WD13X10035 GE Dishwasher Door Strike
62WD01X10313 GE Dishwasher Tub Insulation
64GEN WD30X10027
65GEN WD27X10240
66TUB GASKET
67GEN WD12X10317
68GEN WD30X10029
69WD12X10315 GE Dishwasher Rail Guide Cap
70GEN WD02X10134
71WD12X10223 GE Dishwasher Junction Box Bracket
73WD27X10216 GE Dishwasher Toe Kick White
75WD02X10136 GE Screw
76WD01X10315 GE Dishwasher Lower Front Brace
77WD08X10069 GE Dishwasher Top Trim White
78WD08X10070 GE Dishwasher Left Side Trim
79WD27X10239 GE Dishwasher Right Upright Assembly
114WD01X10328 GE Junction Guard Ring
115WD12X10229 GE Dishwasher Junction Box Cover
122GEN WD08X10071
134WD31X10112 GE Handle Cover Black
140NUT M4
146SCREW M4
152WD01X10440 GE Lower Back Brace
