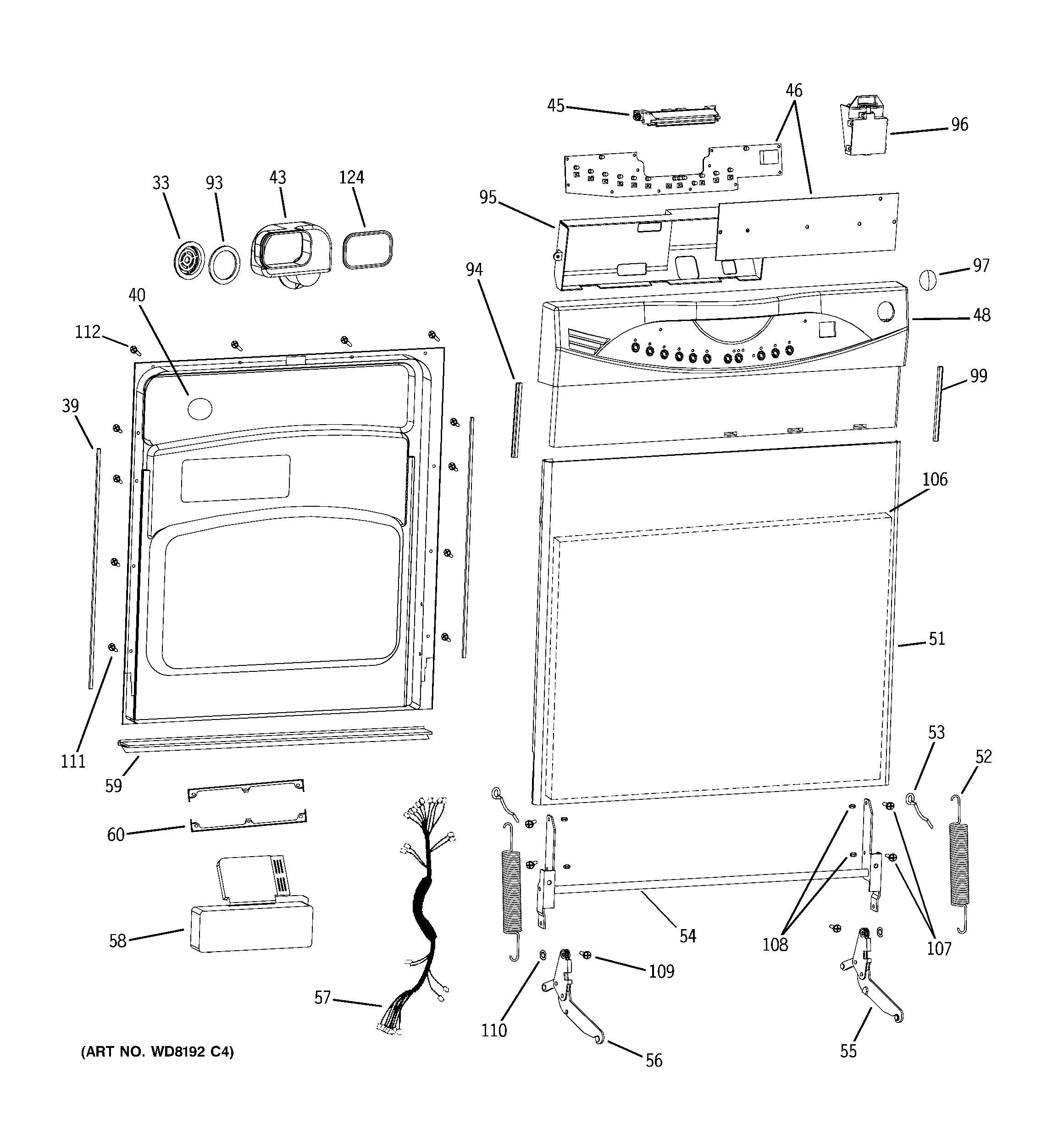

GLDA690M00WW ESCUTCHEON & DOOR ASSEMBLY

GLDA690M00WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GLDA690M00WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
33WD01X10309 GE Dishwasher Ring Nut with Gasket
39GEN WD08X10068
40GEN WD31X10093
43WD12X10219 GE Dishwasher Connecting Vent
45GEN WD09X10057
46GEN WD21X10243
48GEN WD34X11194
51GEN WD31X10095
52GEN WD03X10030
53GEN WD01X10250
54WD14X10026 GE Dishwasher Hinge Assembly
55GEN WD14X10027
56WD14X10028 GE Dishwasher Left Hand Hinge Assembly & Screws
57GEN WD21X10244
58WD12X23625 GE Dishwasher Detergent Dispenser
59GEN WD08X10062
60WD01X10321 GE Dishwasher Bracket Detergent Dispenser
93WD01X10320 GE Dishwasher O-Ring
94GEN WD12X10234
95WD12X10226 GE PCB Cover Assembly
96GEN WD21X10246
97GEN WD34X11195
99GEN WD12X10235
106WD01X10325 GE Dishwasher Outer Door Insulation
107WD02X10137 GE Dishwasher Screw M5 x 10
108GEN WD02X10138
109WB36X27743 GE Range Backguard
110WD02X23652 GE Dishwasher Spring Washer
111WD02X10139 GE Appliance Screw Tapping ST3.5 x 13
112WD02X10140 GE Dishwasher Tapping Screw ST3.5 X 16
124WD08X10067 GE Dishwasher Vent Guard Ring
